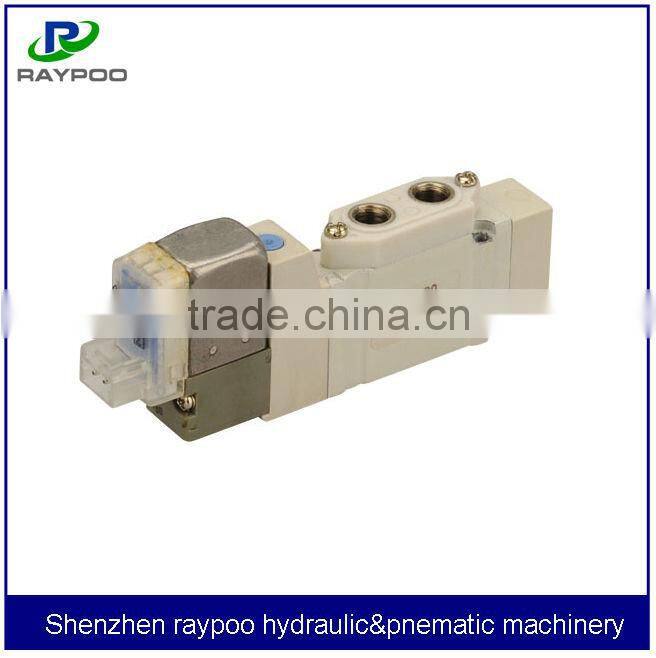

pneumatic solenoid valve smc
Example | SY5 | 1 | 2 | 5 | L | * | * |
Meaings | Model Code | Valve type |
| Voltage | Out wire type | Indicator light | Operating type |
Explain | 3:SY3000 series 5:SY5000 series 7:SY7000 series 9:SY9000 series | 1:2 way single control 2:2 way double control 3:3 way closed center 4:3 way pressure center 5:3 way exhaust center | Body ported type | A:AC220V B:DC24V C:AC110V F:DC12V | L:with wire LN: without wire Length 300mm | Over-voltage protection device | Blank:push button type D:rotaty lock type of press down E:rotaty lock press down by hand |
Series | SY3000 | SY5000 | SY7000 | |||
Fuild | Air | |||||
Internal pilot Operating pressure | 2 position single | 0.15~0.7MPa | ||||
2 position double | 0.1~0.7MPa | |||||
3 position | 0.2~0.7MPa | |||||
Ambient and fluid temperature | -10~50 (no freezing) | |||||
Max operating frequency | 2 position single.double | 10HZ | 5HZ | 5HZ | ||
3 position | 3HZ | 3HZ | 3HZ | |||
Manual override(manualoperation | Non-locking push type | |||||
Pilot exhaust method | Common exhaust type for main and pilot valve | |||||
Lubrication | Not required | |||||
Mounting orientation | Unrestricted | |||||
IMpact/Vibration resistance | 150/30(m/s2) | |||||
Encloseure | Dustproof | |||||
How are orders packed and shipped?
Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).
Can be customized according to customer requirements
Raypoo Service
We provide hydraulic, lubrication, pneumatic technology consulting, system design, and the parts.
Could Raypoo offer OEM service?
Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.
Do Raypoo products come with a warranty?
Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.
Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market. The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls. The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support. The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve valves controls manifolds, hydraulic cylinders,Non-standard hydraulic system,Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food. The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed. The products are sold as individual components or integrated into high performance applications.
Q.How to request a manufacturing quotation from Raypoo?
A.Give us a call or send us an E-mail with your purchase request.
Q.What are your quality control procedures?
A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
