China factory Table cnc plasma cutting machine
The CNC table cutting machine is a kind of high speed, precise & compact cutting machine, especially suitable for cutting of middle thick and thin nonferrous plates, stainless steel and carbon steelplates.This machine has uniquely designed mist and dust evacuation unit, cutting table and dregs melting storage unit which could greatly reduce the harmful mist and dust caused by plasma cutting,therefore it is very friendly to the environment.because of the high cost-efficiency.
2. High configuration, high cutting speed and precision.
3. Auto ARC starting. Steady performance.
4.Control system: DSP handset control, with USB interface
5. Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.
6. File format: G-code
7.Suitable Software :ARTCUT, Type3, ArtCAM. Beihang Haier.
8.Different working size:1300X2500MM /1500X3000MM or other sizes according to customers’ needs
9. Servo motors and drivers are for optional
10. Different power: 65A /100A /200A for different thickness cutting

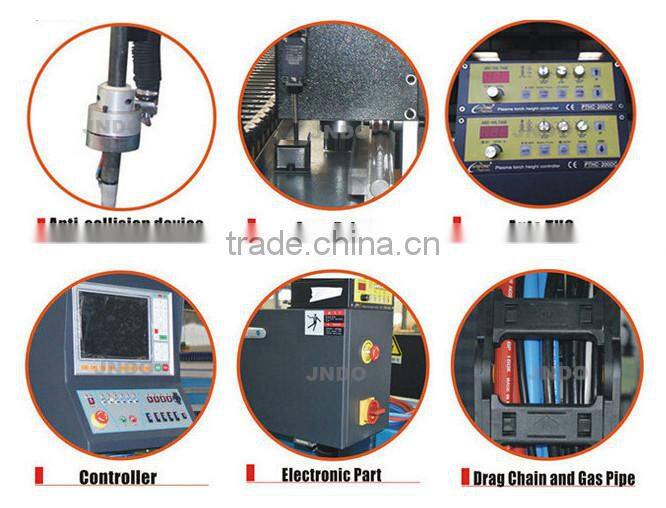

11.Torch Height control system
1 | Cutting shape | any shapes |
2 | LCD Display Dimension | 7.0 Inches |
3 | Effective Cutting Width (X axis) | 1250mm |
4 | Effective Cutting Length (Y axis) | 2500mm |
5 | Cross Beam Length | 1500mm |
6 | Longitudinal Rail Length | 3000mm |
7 | Cutting Speed | 0-8000mm per minute |
8 | Plasma Cutting Thickness | 2--20mm ( Depends on plasma power source capacity) |
9 | lifting body | 1set |
10 | Drive Mode | bilateral drive |
11 | Cutting Mode | plasma |
12 | Ignition device | Auto ignition device |
13 | Height regulating device | Arc voltage height |
14 | File transmission | USB transmission |
15 | Nesting software | Fastcam standard |
16 | Plasma Power Source | Ruiduncnc 45/85/105/120/200A |
17 | Plasma Air | Only pressed Air |
18 | >Plasma Air Pressure | Max. 0.8Mpa |
19 | Cutting precision | 0.5mm National standard JB/T10045.3-99 |
20 | Control accuracy | 0.01mm |
21 | Power Supply Voltage/Frequency | 380V 50HZ |
22 | Rated Power Supply | 1000W |
23 | Working Temperature | >-10C-60C. Relative Humidity, 0-95%. |

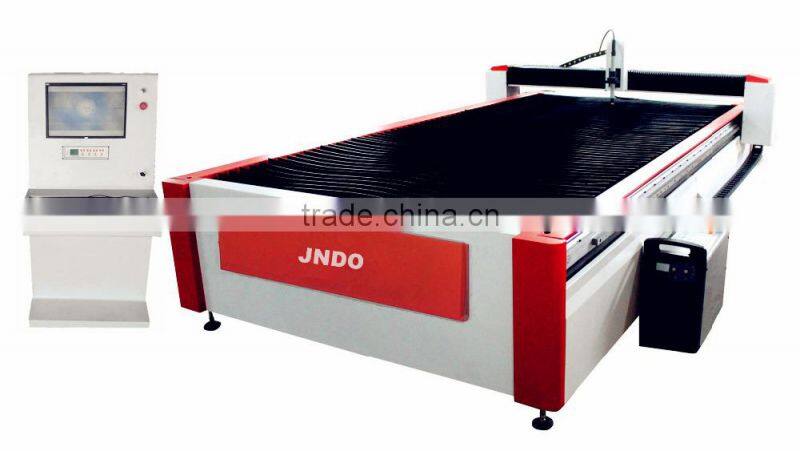

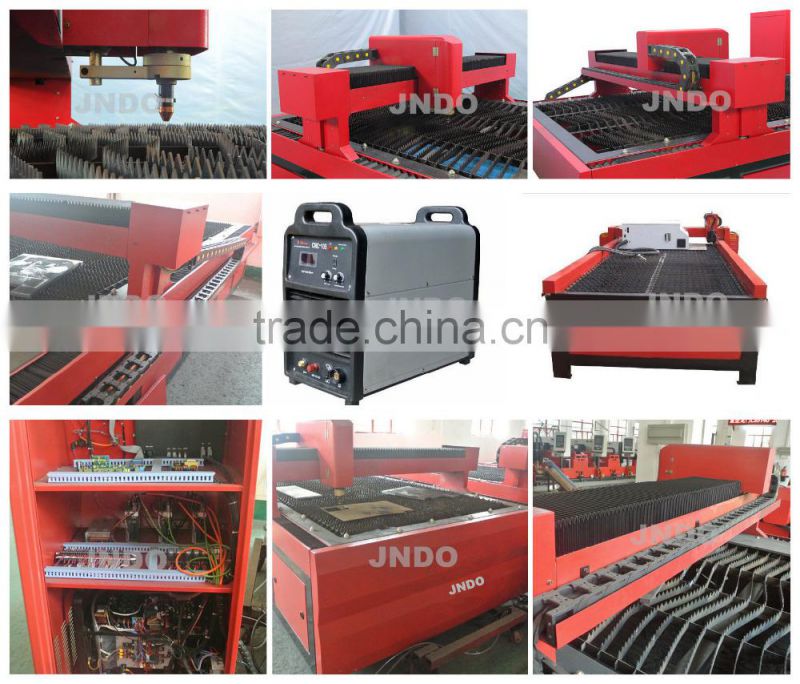

Pictures of Cutting Machine
Application of Cutting Machine
We appreciated that if you can supply following details,so we can give you more useful suggestion:
1.The cutting size(width*length)?
2. The minimum and maximum cutting thickness?
3. Cutting material is mild steel or stainless steel?
4. The material shape is metal sheet,or metal plate,or proximate matter,or steel pipe?
