Specifications
10T GCT manual plain trolley monorail trolley1.Capacity:0.5T-10T;
2.Tightness design Low noise&Long service life

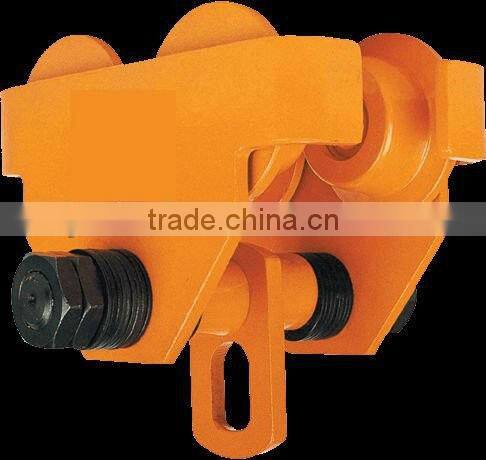

10T GCT manual plain trolley monorail trolley
GCT series trolley, plain trolley introduction:
GCT series trolley is a kind of lifting device and it has its own characteristics of simple structure and easy operation. It can be attached to chain hoist of electric hoist or any other loading machinery to form a loading trolley. It can be easily running on the botton flange of I beam track at a curve radius for loading and unloading goods and equipments.
By different way of driving , the trolley series can be divided into two types: Geared trolley(GCL) and Plain trolley(GCT). The plain troley is operated by pushing the load and for the geared trolley, we can pull the hand chain to drive it.
GCT880 series trolley, plain trolley parameters:

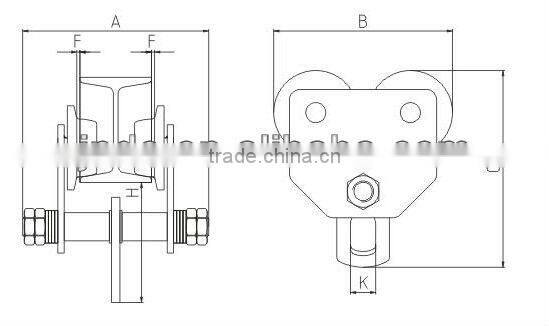

Model | Rated load (Ton) | Test (KG) | The Min curvature radius (M) | Main Size(MM) | I-Beam recommended(MM) | ||||
A | B | C | H | F | |||||
GCT0.5 | 0.5 | 0.64 | 1 | 208 | 172 | 190 | 108 | 3 | 75-100 |
GCT1 | 1 | 14.71 | 1 | 220 | 206 | 222 | 122 | 3 | 75-100 |
GCT1.5 | 2 | 29.42 | 1.1 | 260 | 240 | 267 | 132 | 3 | 90-140 |
GCT3 | 3 | 44.13 | 1.3 | 285 | 279 | 319 | 181 | 3 | 100-150 |
GCT5 | 5 | 61.29 | 1.4 | 338 | 318 | 384 | 219 | 3 | 125-175 |
GCT10 | 10 | 122.58 | 1.7 | 362 | 380 | 490 | 275 | 3 | 125-180 |
Packaging and dlivery detail
Cartons or wooden cases,on pallets,and we can also make the packing according to buyers request
15 day after payment
Outstand Service
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
