2013 Good Quality Electric Hand Trolley

Specifications

Small Electric Capstan Winch
1. Capacity: 2000-12000lbs
2. Sling type: wire rope
3. Voltage: DC 12v
4. CE, ISO9001:2008

2013 good quality electric trolley on sell



Introduction:



Electric trolley is also called electric monorail car, its using function is similar to the hand trolley, but electric trolley saves more labor and more convenient. Electric trolley is motor as the power, four-wheel walking in the range of I-Beam. It can combine electric hoist and other hoisting tools to form one electric transportation driving, and this driving can be widely used in factories,mine,warehouses for installation, dispatching goods, equipment maintenance. The weight: 0.5 tons to 100 tons.



Electric trolley mainly is used in U Power, Ship, Automobile Manufacture, Construction, Highway, Bridges, Metallurgy, Mining, Slope Tunnel, infrastructural project of mechanical equipment.





Specifications:

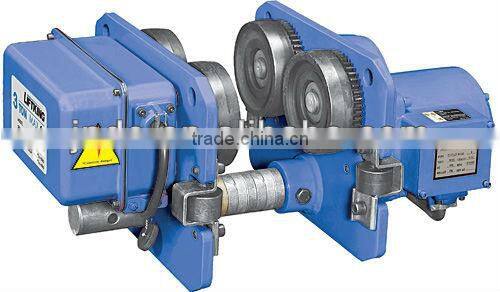

PX ELECTRIC TROLLEY
     1.CE and ISO9001
   2.Competitive price
   3.Delivery in Time
   4.High factor of safety
   5. Durable.





Technical Parameters :

 Description



Type	Capacity(Ton)	Unit(mm)				Speed 50Hz(m/min)	Motor(Kw)	Minimum radius of turn	l-Beam(mm)
		W	U	R	T
DPC-0.5	0.5	315	212	142	231	12.2	0.12	0.7	52-153
DPC-01	1	315	212	142	231	11 or 21	0.4	0.8	52-153
DPC-02	2	325	220	142	231	11 or 21	0.4	0.9	82-178
DPC-03	3	340	250	142	231	11 or 21	0.75	1	100-178
DPC-05	5	400	291	142	231	11 or 21	0.75	1.5	100-178
DPC-7.5	7.5	400	291	142	231	11 or 21	0.75	1.8	100-178
DPC-10	10	500	371	142	231	11 or 21	0.75	2.0	150-220

Packaging and  dlivery  detail
