600kg mini lifting hoist used for mining

Name: 600kg mini lifting hoist used for mining
Brand: JNDO
Availability: InStock

FOB Price

USD $39 - $185 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Tianjin
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Place of Origin:	Hebei, China	Brand Name:	JNDO
Model Number:	PA	Usage:	Mining Hoist	Power Source:	Electric
Sling Type:	Wire Rope	Maximum Lifting Weight:	600kg	Maximum Lifting Height:	30m
Lift Speed:	10m/min	Certification:	CE	Warranty:	1 Year
After-sales Service Provided:	No overseas service provided

Product Description

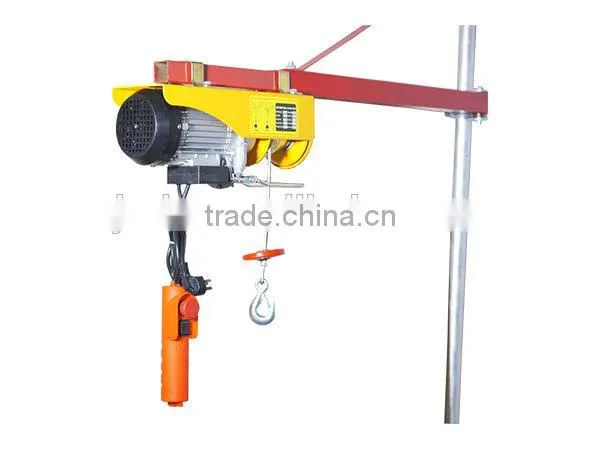

600kg Mini Lifting Hoist Used for Mining

The mini electric hoists produced by JNDO are designed to elevate heavy goods under household power supply. There is a limiting device set to ensure that the electricity is cut automatically when the hook has met its limit in height.
Main parts of the mini hoist like motors are manufactured independently by JNDO to ensure their performance. Our mini electric hoist has been CE certified and exported to many countries like the United States, Australia,Russia, Japan, India, and Vietnam.

Technical Parameter of PA Mini Electric Hoist
^Model	^{Method to Use}	^{Rated voltage (v)}	^{Input Power (w)}	^{Rated Capacity (kg)}	^{Lifting Speed (m/min)}	^{Lifting Height (m)}	^{Qty/ CTN (pcs)}	^{Packing Size (mm)}	^{G.W/ N.W (kg)}
_PA200	_{Single Hook}	AC, 110V/120V/220V/230V/380V, 50/60Hz, 1P	₅₅₀	₁₀₀	10	12	₂	360310240	_24/22
	_{Double Hook}			₂₀₀	5	6
PA250	_{Single Hook}		₆₀₀	₁₂₅	10	12	₂		25/23
	_{Double Hook}			₂₅₀	5	6
_PA300	_{Single Hook}		550	₁₅₀	10	12	2		26/24
	_{Double Hook}			₃₀₀	5	6
PA400	_{Single Hook}		₈₅₀	₂₀₀	10	12	2	440330260	35/33
	_{Double Hook}			₄₀₀	5	6
PA500	_{Single Hook}		1000	₂₅₀	10	12	₂		36/34
	_{Double Hook}			₅₀₀	5	6
PA600	_{Single Hook}		1150	₃₀₀	10	12	2		37/35
	_{Double Hook}			₆₀₀	5	6
PA700	_{Single Hook}		1300	₃₅₀	8	12	2		38/36
	_{Double Hook}			₇₀₀	4	6
PA800	_{Single Hook}		1450	₄₀₀	8	12	2		39/37
	_{Double Hook}			₈₀₀	4	6
PA1000	_{Single Hook}		1700	₅₀₀	8	12	1	560250320	34/32
	_{Double Hook}			₁₀₀₀	4	6

Main Features

1) The hoist features large power motor, good cooling effect, slow heating, and long working time of motor.

2) Upper limit device.

2) Emergency stop switch.

3) With thermal protection device equipped.

4) Insulation class: B; protection class: IP54.

Detail Pictures

Size

360 degree display

Detail

Motor coils

The copper wires are of good conductivity, covered by insulation materials.

Helical gears

The high-precision helical gears of the hoist allow for low noise.

Limiting device

Set for preventing motor reversal and collision.

Scale Manufacture

WORKSHOP STOCKS

PRODUCTION LINE

QUALITY CONTROL

PACKING & DELIVERY
