Stainless steel mesh dry pollen extraction vibrating screen sifter
- 10000 Set / Sets per Month
- Tianjin / Shanghai / Qingdao
- T/T
-
Hot Sale Food Grade Sieving Machine for Powder & Particles
-
DZ vibrating screen machine for Flour
-
Direct discharge sieve separator
-
food grade 304 stainless steel rotary vibration filter sieve
-
China Hot Sale Rotary Vibratory Separators Manufacturer
-
Rotary Vibrating Screen Separator Machine for powders and granules
Product Details
| Place of Origin: | Henan, China | Brand Name: | gaofu | Model Number: | S49-1000-2S Stainless steel |
| Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Rain-proof package or wooden case standard exporting package .
Product Description

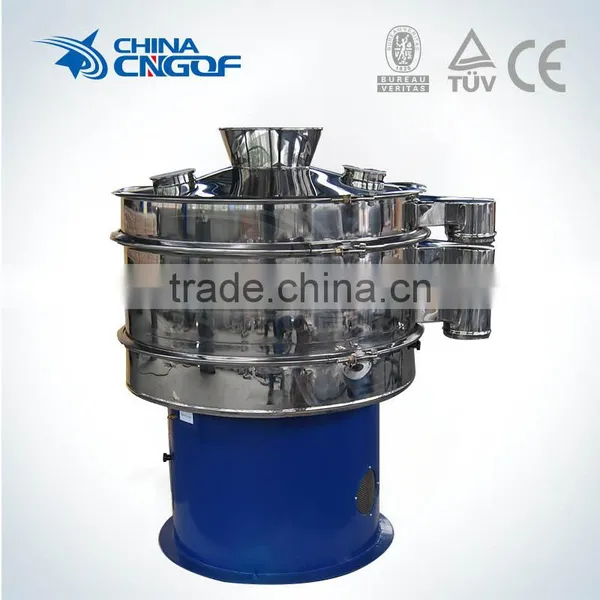

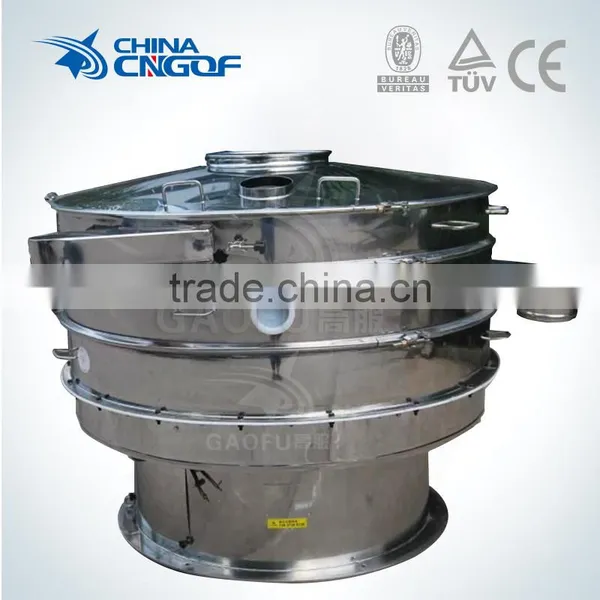

Stainless steel mesh dry pollen extraction
vibrating screen sifter
Application
This machine have a widely application.It is suitable for a variety materials of the form . such as powder,particle and so on . If you are worried about your product quality, if you are worried how to improve your product quality, please tell me your detailed information, then I can give you the best price and high quality machine.
Principle of the structure
S49-A series rotary vibration shaker use upright motor as the source of vibration, these consist of specially designed motor which is mounted vertically at the center of the base plate of the screen. Equipped eccentricity hammer on the both sides of motor, change circumrotate to level, upright and incline movement, then pass these three movements to the surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.
Technical parameter
Model | Effective Diameter for sieving surface(mm) | Effective sieving area(m2) | Sieving mesh specification | Layers | Power(KW) | |
Vibration motor | Common motor | |||||
S49-400 | 340 | 0.0907 | 2-500 mesh | 1-5 | 0.18 |
|
S49-600 | 540 | 0.2289 | 2-500 mesh | 1-5 | 1.25- | 0.75 |
S49-800 | 730 | 0.4183 | 2-500 mesh | 1-5 | 1.55 | 1.1 |
S49-100 | 900 | 0.6359 | 2-500 mesh | 1-5 | 1.1 | 1.5 |
S49-1200 | 1100 | 0.9499 | 2-500 mesh | 1-5 | 1.1 | 1.5 |
S49-1500 | 1400 | 1.5386 | 2-500 mesh | 1-5 | 1.5 | 2.2 |
S49-1800 | 1700 | 2.2687 | 2-500 mesh | 1-5 | 4 | 3.0 |
S49-2000 | 1886 | 2.7922 | 2-500 mesh | 1-5 | 4 | 3.0 |

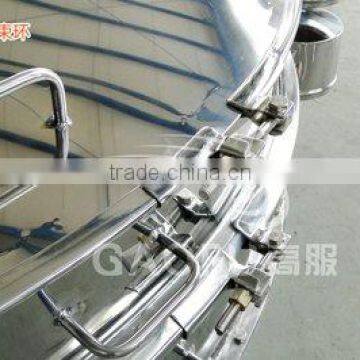

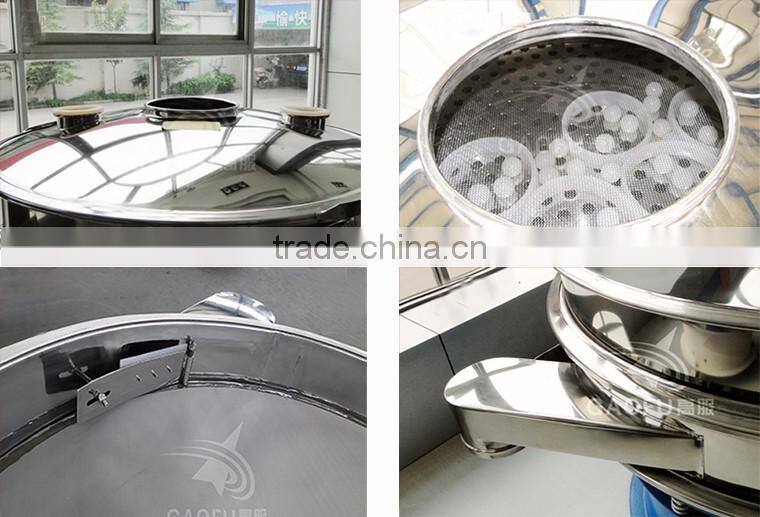

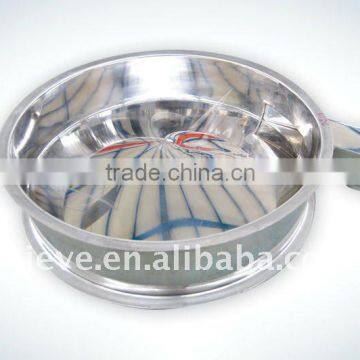

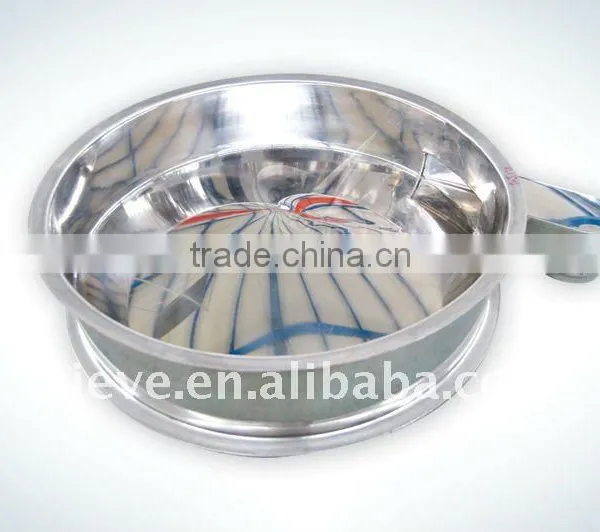

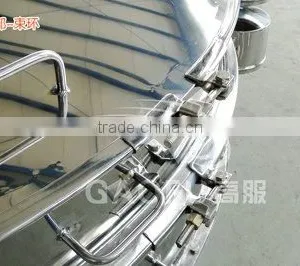

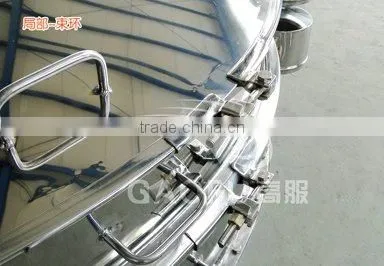

Product details

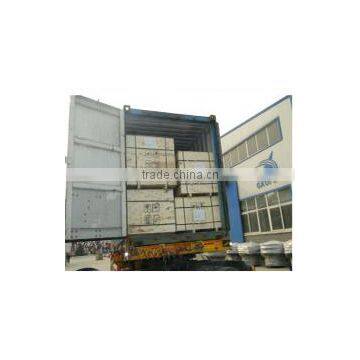

Packing & Shipping
Container storage according to the customer's requirements.

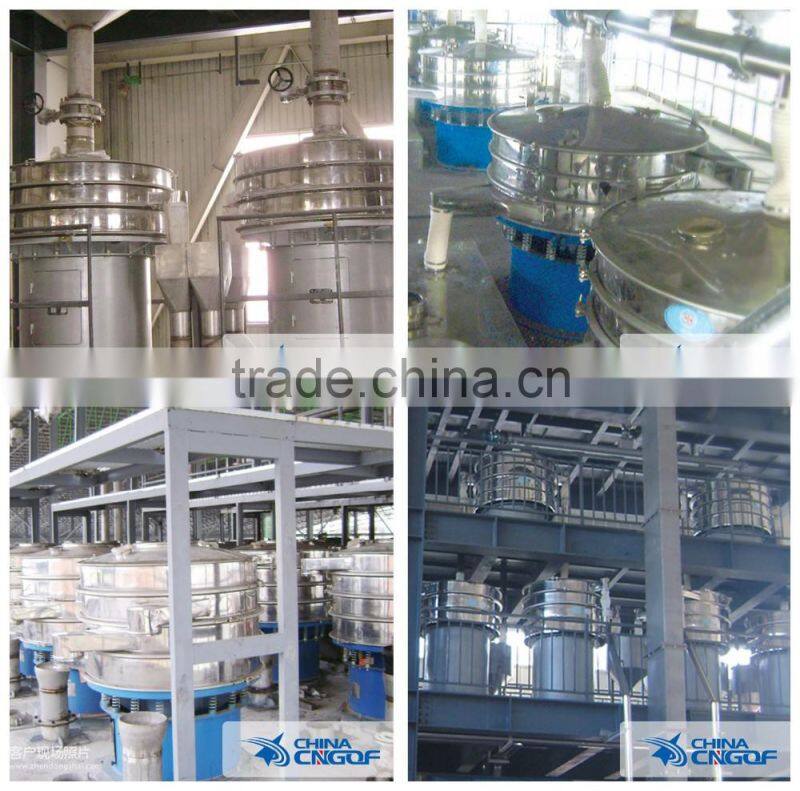

Customer worksite
Company Information
Gaofu company founded in 1982, 30 years of development history, gradually improve and integrated industrial chain;Main products include screening machinery, vibration equipment, crushed coal machinery, filtration equipment, dust removal equipment and other industries.With 56 national patents, is a design and production capacity of integrated machinery manufacturing company.
ISO and CE Certification
FAQ
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every macchine before delivery.
2.Guaranteed:
If products’quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
4.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.
If you are interest in our product, please don't hesitate to contact with us.
Company Profile
Xinxiang Gaofu Sieving Machinery Co., Ltd. specializes in manufacturing vibration screens and vibrating sieves. To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
Thanks to production equipment, strong technical capabilities, improved detection means and strict managing system, we have enjoyed good reputation.
our company has attained ISO9001:2000 certification and CE Certification. Our products sell well throughout China and are exported to North America, West Europe, Southeast Asia and other countries and regions.
Do you want to improve your product quality? Do you want your products to become more competitive? Choosing Xinxiang Gaofu Sieving Machine Co., Ltd.! We will be your friend in the way to success! And you will create a shiny future in 2014!
Please visit our website: www.gaoful.com.
Our tenet: "Honest Service, the Highest Quality".To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
