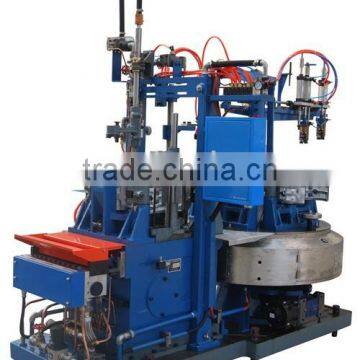

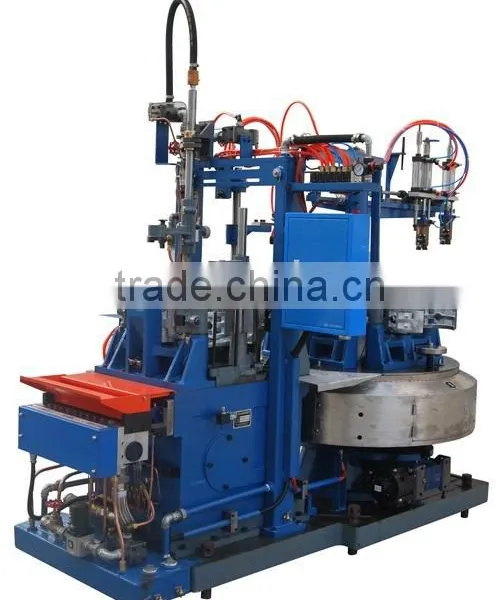

R-4S Digital Control Machine
R-4S, a rotating type of digital control bottle machine with high efficiency &quality, can produce wine and cosmetic bottles from 50ml to 2000ml with a wide size range of necks.
Single section can improve the efficiency up to 30%, and save the energy 40% comparing to the traditional one per ton.
Main Features
Gear-drived reversing by Servo with high precision of control.
Rotating control by Servo system, precise positioning.
4-mould arrangement enables production more efficient and in higher quality;
moulds with automatic close/open mechanism,
Electric valve box control adopted,
Automatic centralized lubrication with higher reliability;
Servo technology to save energy;
Production shift flexible and easy maintenance.
Technical data:
| blow-blow | press-blow | |
| High pressure (MPa) | 0.28~0.31 | |
| Low pressure (MPa) | 0.18~0.21 | |
| Compressed Air Consumption(m3/min) | 2.0 | 2.5 |
| Cooling Air Consumption(m3/h) | 2500 | |
| Air pressure(KPa) | 5.5 | |
| Power(KW) | ≤5 | |
| Adjusting accuracy of the rotating table | 0.01° | |
| Max. bottle body height(mm) | 345 | 240 |
| Max. bottle neck diameter(mm) | 50 | 120 |
| Max. bottle body diameter(mm) | 150 | |
| speed(pieces/min) | 4 to 12 | |
| Dimension(L×W×H,mm) | 2410×1100×2000 | |
