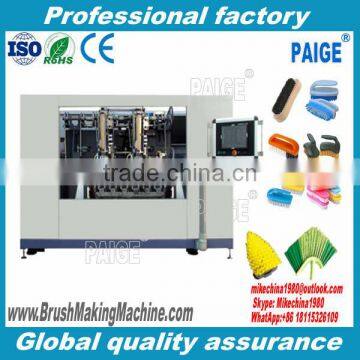

2016 CNC Brush making machine & Tufting Drilling Machine

FOB Price

USD $120,000 - $125,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Makng Brush
Automatic Grade	Automatic	Production Capacity	900Holes/min
Place of Origin	Jiangsu, China	Brand Name	PAIGE
Model Number	PG-CNC5A5H	Voltage	3/380V
Power(W)	3KW	Dimension(LWH)	2.5M1.4M1.98M
Weight	2000KG	Certification	ISO 9001 CE
Warranty	1 Year	After-sales Service Provided	Overseas service center available

Product Description

2016 CNC Brush making machine & Tufting Drilling Machine

Specification

Maximum production speed	900holes/minute
The maximum filament length	240mm
Dia. Of tufting holes	3.0mm -6.0mm
Machine Size	2.8m1.85m2.2m (LWH)
Power Consumption	5000W
Driving Motor	AC Servo Motor
Power Supply	Three-phase 380V
Weight(gross weight)	3500kg

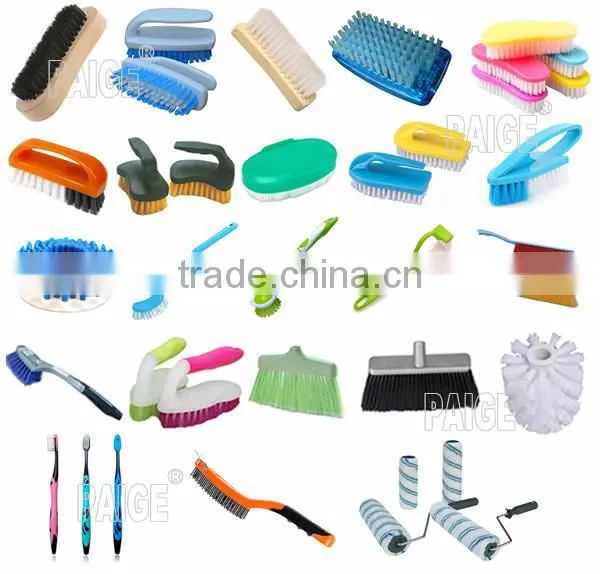

Product Sample

PG-CNC5A5H 5 Axis 5-Head Brush Drilling And Tufting Machine Feature:

Standard Working Area of Working Table	X-axis x Y-axis x Z-axis x A-axis x H-axis = 100mm x 320mm x 100° x 40° x 120mm (Other size could be customized)
Material of Brush Handle	Plastic or wood; with flat, corrugated or fan-shaped surface, or cylindrical shape;
Material of Brush Filaments	PP, nylon, copper wire, stainless steel wire, bristle
Length of Filaments (Outside Holes)	10mm - 120mm
Diameter of Brush Filaments	0.08mm - 1.2mm
Diameter of Holes	3mm - 5mm
Colors of Filaments	Either single color or two colors
Maximum Tufting Speed	5 holes per second
Specifications of Machine Body	2.2m(Length) x 1.6m(Width) x 2.5m(Height)
Motor (Power System)	With step-motor by default; also we could use servo-motor instead, if required by clients.
Data Input	Teaching-type: Operator manually puts tufting head into holes one by one, then presses “Enter” on hand-controller, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

	Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
Touchable Screen	With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
Speed Adjusting	Frequency-conversion stepless-adjustable speed
Qty of Programs Saved	It saves totally 84 programs for making different brushes.
Gross Weight	Around 2500KGS
Programming	PLC (Programmable Logic Controller)
Power Supply	3-Phase 380V, or Single-Phase 220V; 50-60Hz; 600W
Replaceable Grippers	FMS type. Operator could make other kinds of brushes, as long as he changes grippers.
Tufting Mode	Staple-type (using round wires)
Packing	It’ll be packed into wood cases.
	Machine Body: 2.2m(Length) x 1.6m(Width) x 2.5m(Height)
	Computer Box: 63cm(Length) x 61cm(Width) x 145cm(Height)

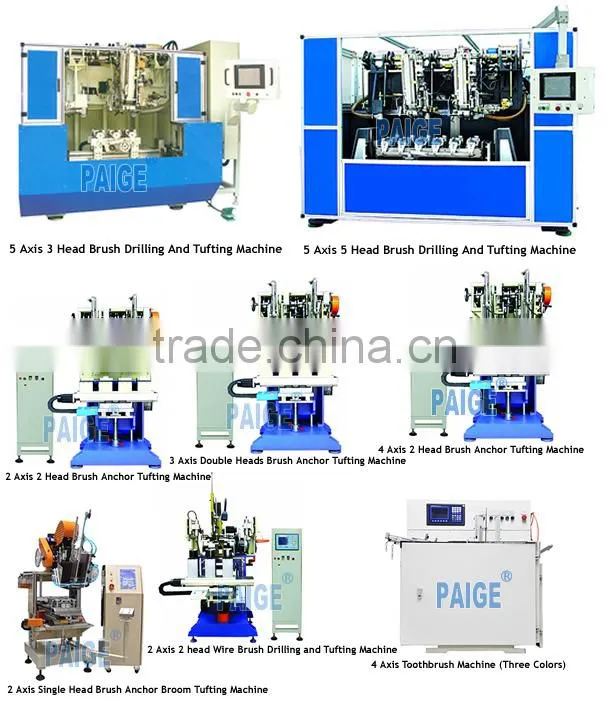

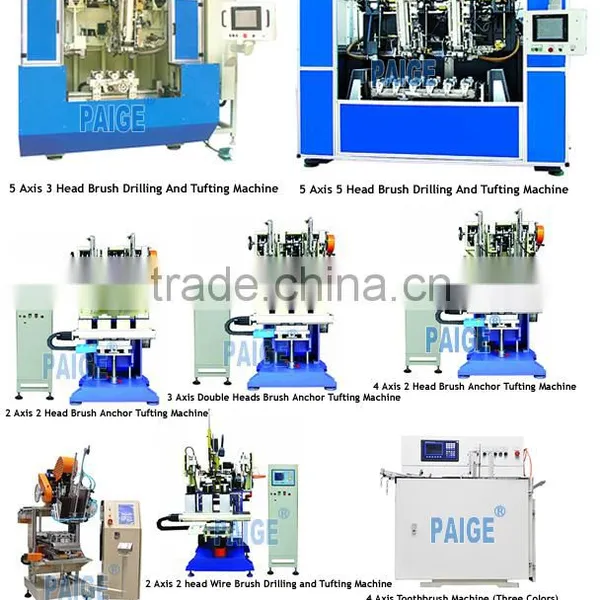

Product Show
