Dump Truck Tipper Hydraulic Cylinder

Specifications

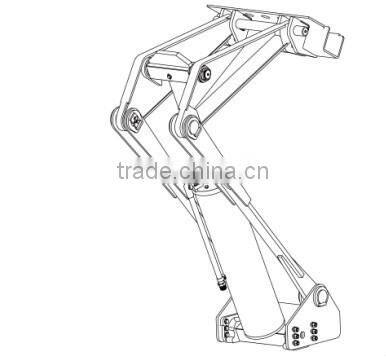

                                                                            ♦     T-type lifting hydraulic system     ♦

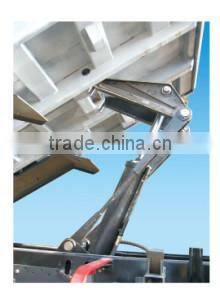

T-TYPE composite of hydraulic cylinder, lifting arm, draw bar. The main feature of tipping mechanism is the two ends of tipping cylinder hinge-jointed with backing frame and lifting arm. The three action points of lifting arm hinge-jointed with tipping cylinder, restraining bar and dump body, the two ends of restraining bar hinge-jointed with backing frame and lifting arm, dump body

lifted by the lifting arm that forced by restraining bar. Designed by CAD, the advantage is simple structure, low hydraulic pressure and better balance.

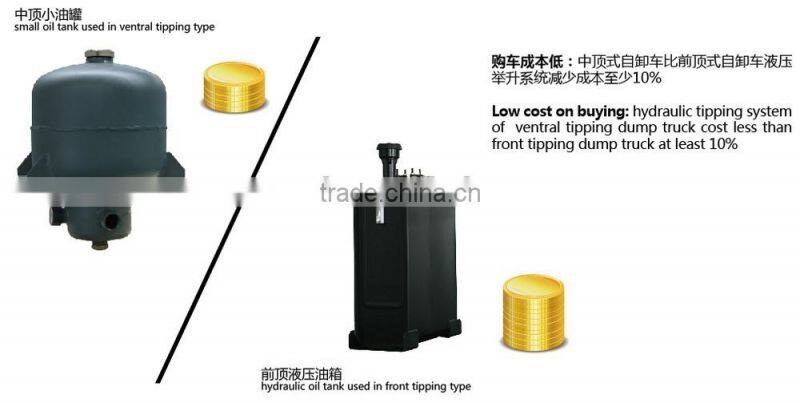

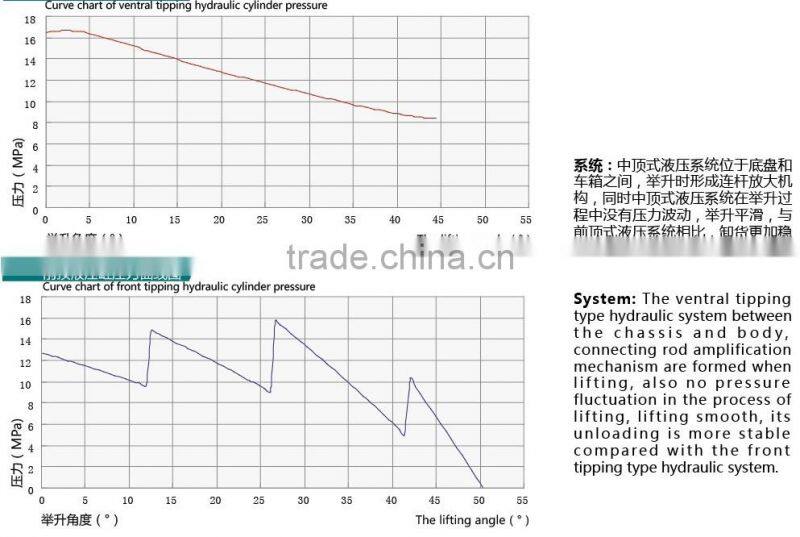

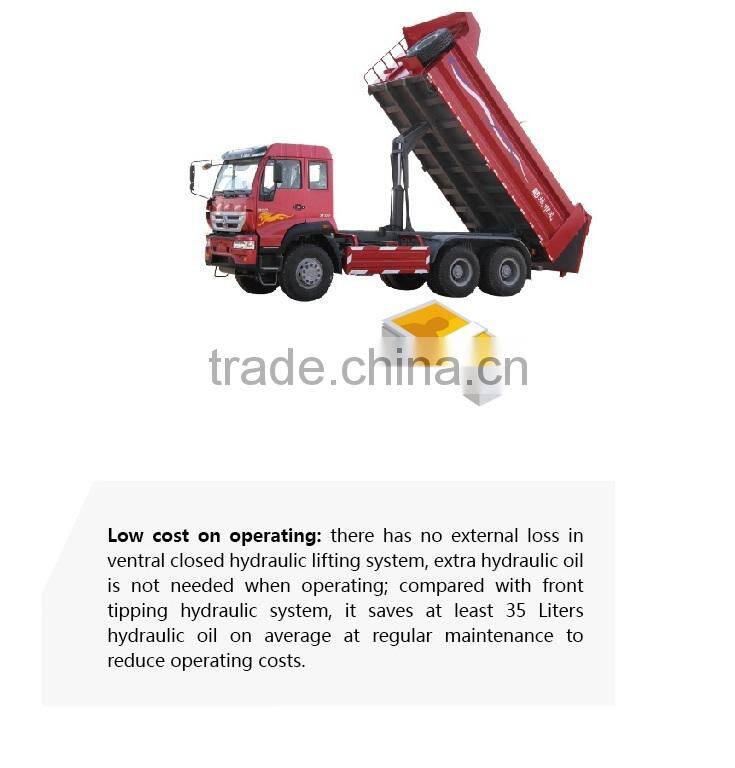

                          ♥          ADVANTAGES OF T-TYPE LIFTING SYSTEM          ♥

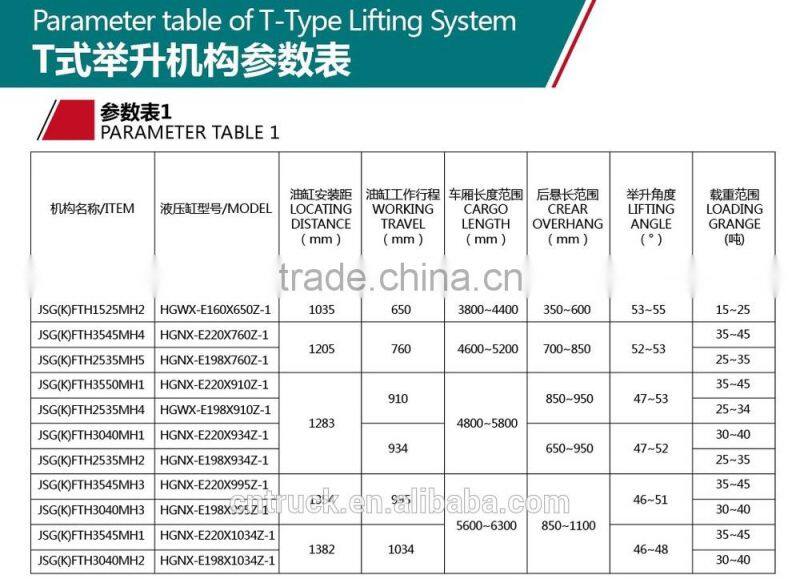

 THE PFOLLOWING PARAMETER IS JUST FOR REFERENCE   ↓↓

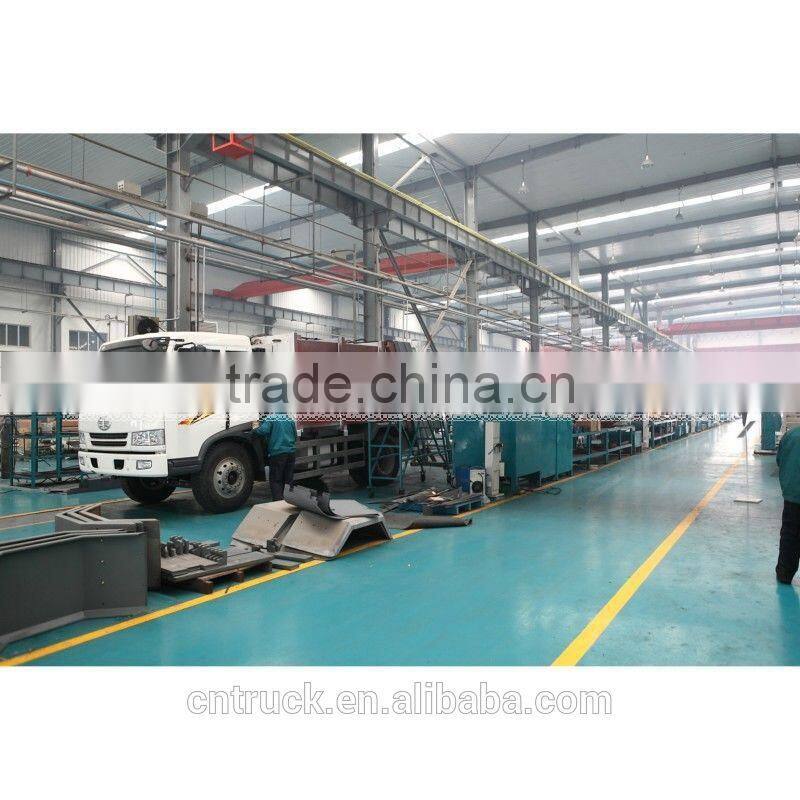

SINOTRUK QINGDAO HEAVY INDUSTRY CO. LTD. is one of the wholly owned subsidiaries of China National Heavy Duty Truck Corp., Ltd. As one of the leading special truck R&D center, our company is also the biggest truck manufacturing and exporting base in Qingdao, China. With over 1,350 staffs, SQHI covers an area of 533,328 square meters and owns 2 billion RMB fixed assets. The main products cover dump trucks, concrete mixer trucks, bulk cement trucks, garbage trucks, aircraft tractors, excavators, military vehicles, hydraulic components, etc. A series of advanced professional production lines have been built and imported in order to provide professional top-class products for international market. Now, SQHI has the capacity of manufacturing 20,000 units of special truck and over 60,000 sets of hydraulic component per year.

SQHI is one of the 52 national vehicle export base and almost 50% of its products are exported every year. In 2011, 12,064 units of special trucks were manufactured and 6,400 of them have been exported to more than 50 countries and regions worldwide including Southeast Asia, Middle East, Africa, South America, etc. The export earnings of our company reached USD 24.71 million last year.

While making significant progress, we are trying our best to continuously improve ourselves. We are looking forward to cooperation and partnerships from clients all over the world.
