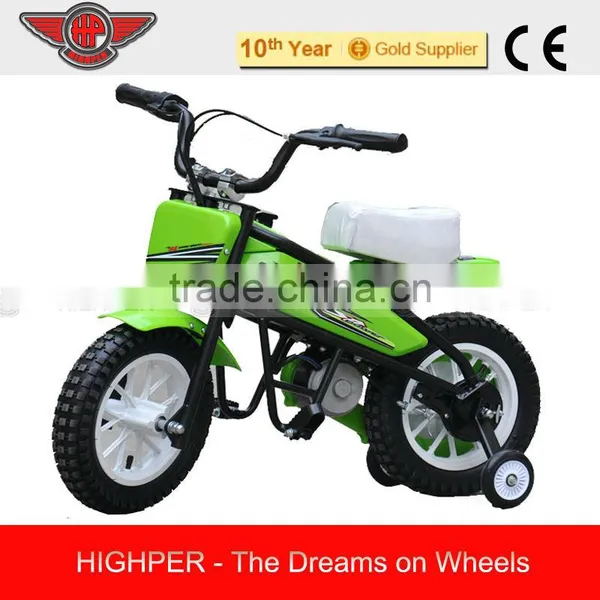

Ride On Electric Toy Bike (HP108E)

Specifications

200W Motor,
Speed Controlled by Throttle,
Two Max Speed: 7km/h and15km/h

   Specification



Products Size	900mmX570mmX700mm
Motor Type	brushed DC , 200W/24V
Motor Max Loaded Amps	13.8A
Torque	0.89(N.m)
Max RPM	2700±7.5%(rpm)
Controller Type	Air cooled, non water -proof; brake shutoff, charger port
Battery	Lead-Acid Battery, 12V/ 5AH*2pcs
Charging Time	6-8 hours
Battery Charger	Input-100-240VAC,50/60Hz; Output-DC24V,0.6A
Special Features	Dismountable Handle bar
Turning angle	28º
Transmission Ratio	92T/11T
Seat Height	500 mm
Wheel base Distance	580 mm
Front & Rear Tire and Rim	12½×2.75
Maximum Carrying Capacity	42kgs
Mini Ground Clearance	120mm
Maximum Speed	Low speed:7km/h; high speed:15km/h
Maximum Distance Range	8km
Control System	handle bar control
Throttle Type	turn control
Front & Rear Braking System	Mechanical disc,left handle control
Drive System	Chian drive
Brake Distance	≤2m(7km/h); ≤4m(15km/h)
Packing Size	960mmx280mmx550mm
N.W/G.W.	21kgs/24kgs





   Product Work Flow



   Package



   Certificate





   FAQ

1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.



2. Q: Do you have the products in stock?

A: No. All bikes are to be produced according to your order including samples.



3. Q: What’s the delivery time?

A: It usually takes about 25 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.



4. Q: Can I mix different models in one container?

 A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.



5. Q: How does your factory do regarding quality control?
A: Quality is priority. Highper People always attach great importance to quality control from the very beginning to the end of the production.  Every product will be fully assembled and carefully tested before it's packed for shipment.



6. Q:What's your warranty terms?
A:  We offer different warranty time for different products. Please contact with us for detailed warranty terms.



7. Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit. Highper has been alibaba’s Gold supplier since 2004. If you check with alibaba, you will see that we have never got any complaint from our customers.





   Highper Sales Team
