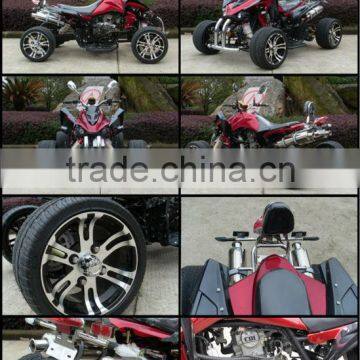

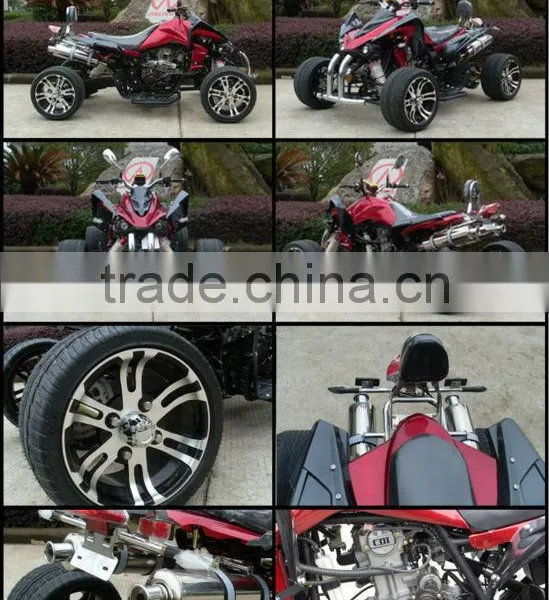

250cc ATV Jinling JLA-21B Series
- 1000 Piece / Pieces per Month
- NINGBO
- T/T
You May Like
Product Details
Fuel | Gas / Diesel | Displacement | 250cc | |
Engine Type | 4 Stroke | Transmission Type | Manual | |
Transmission System | Chain Drive | Certification | ECE | |
Brand Name | JINLING | Place of Origin | Zhejiang, China | |
Model Number | JEA-21A-09 |
Carton Outside,Hob Inner.
Product Description
-
--------------------------------------------------------------------------------------------------------------------------------

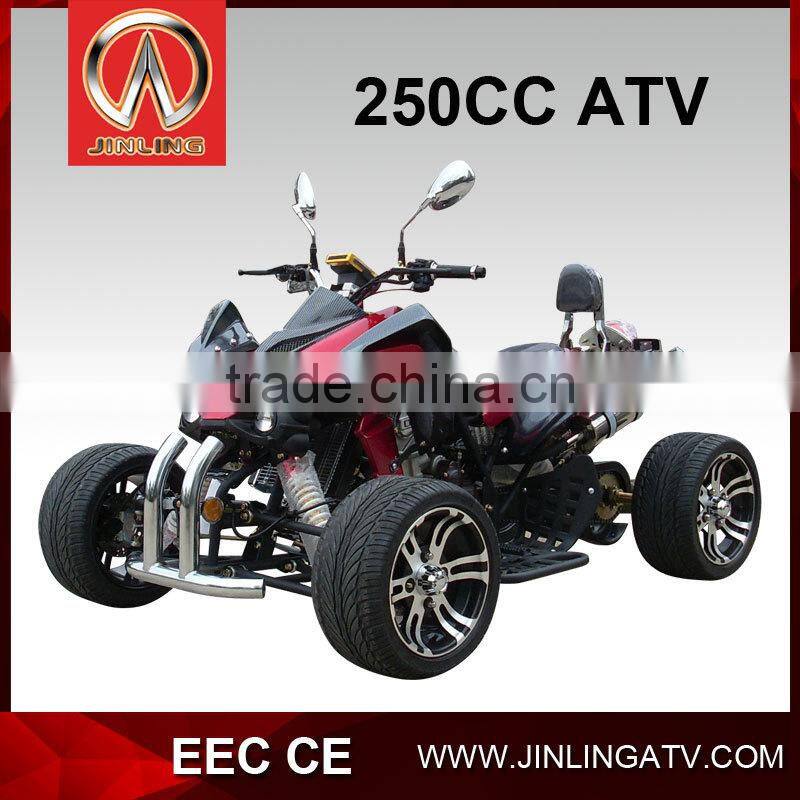

JEA-21A-08 250cc ATV Jinling JLA-21B Series
250cc 4 stroke loncin water cooled Engine,
Chain drive,manual clutch,Disc/Disc
CE-EEC 14 inch road wheel,Wide front A-ARM
CE /EEC/E-MARK
----------------------------------------------------------------------------------------------------------------------------------
Features:
This 250CC 250cc ATV Jinling JLA-21B Series
is jinling JEA-21A-08 250CC 4x2. Jinling's are wonderful ATVs.
They are adult sized ATVs . These ATVs have a super reliable 4 stroke,water cooled engine with electric start and reverse.
The transmission is a 4+1 speed foot shift unit .
----------------------------------------------------------------------------------------------------------------------------------
Specification:

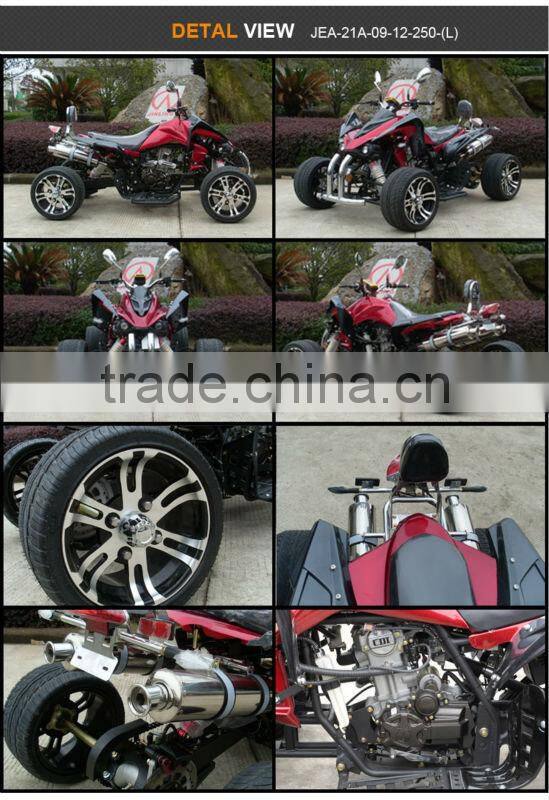

250CC EEC JEA-21A-08 EEC 250cc ATV Jinling JLA-21B Series
IDENTIFICATION | |||
1.Model No. | JEA-21A-08-12-250 (N) | JEA-21A-08-12-250 (L) | JEA-21A-08-12-250 (A) |
2.Warranty | one year for engine, 6months for other parts | ||
3.Model No. in EEC certifcate | JLA-21B-250-A-01 | JLA-21B-250-A-04 | JLA-21B-250-A-02 |
ENGINE | |||
4.Cylinder | Single | Single | Single |
5.Cooled System | water | water | water |
6.Engine Stroke | 4 Stroke | 4 Stroke | 4 Stroke |
7.Bore*Stroke(mm) | 70x64.8mm | 70x64.8mm | 70x64.8mm |
8.Displacement(ml) | 249.4(250cc) | 249.4(250cc) | 249.4(250cc) |
9.Max.power(kw/rpm) | 12kw/7500rpm | 12kw/7500rpm | 12kw/7500rpm |
10.Max.torque(n.m/rpm) | 18.5N.m/6000rpm | 18.5N.m/6000rpm | 18.5N.m/6000rpm |
11.Ignition Type | CDI | CDI | CDI |
TRANSMISSION | |||
12.Transmission Type | Manual Clutch,4 fowarder gear,1 reverse gear | ||
13.Primary Drive(Rear Wheel) | Chain 4x2 | Chain 4x2 | Chain 4x2 |
14.Reverse | Yes | Yes | Yes |
15.Max Speed(km/h) | 75 | 75 | 75 |
WHEEL | |||
16.Front wheel | 235/30-14 tire Alloy rim | 235/30-14 tire Alloy rim | 235/30-14 tire Alloy rim |
17.Rear wheel | 235/30-14 tire Alloy rim | 235/30-14 tire Alloy rim | 235/30-14 tire Alloy rim |
SUSPENSION | |||
18.Front Suspension | Double normal A-Swing Arm | Double Long A-Swing Arm | Double alloy A-Swing Arm |
19.Rear Suspension | Swing Arm | Swing Arm | Swing Arm |
BRAKE SYSTEM | |||
20.Front brake | Disc | Disc | Disc |
21.Rear brake | Disc | Disc | Disc |
22.Braking distance | 8m(30km/h) | 8m(30km/h) | 8m(30km/h) |
TECHINCAL SPECIFICATIONS | |||
23.Product Dimensions(mm) | 1900x1090x1050mm | 1900x1305x980mm | 1900x1200x1000mm |
24.Ground Clearance(mm) | 800 | 800 | 800 |
25.Wheelbase(mm) | 1380 | 1380 | 1380 |
26.Mini Turning Radius(mm) | 2800mm | 2800mm | 2800mm |
27..gross weight(kg) | 208 | 208 | 208 |
28. net weight(kgs) | 187 | 187 | 187 |
29.Fuel Capacity(L) | 8 | 8 | 8 |
30.Fuel consumption | 4.5L/100KM | 4.5L/100KM | 4.5L/100KM |
SEAT | |||
31.Seat Height(mm) | 600 | 600 | 600 |
32.Number of Seats | 2 | 2 | 2 |
COLOR | |||
33.Standard Color | Red/Yellow/Blue/Green/Black/White | ||
34.Optional Color | Green camo,Yellow camo,Snow Camo,Metallic,Carbon | ||
LOADING | |||
35.Packing Size(mm) | 1700x1120x750 (Steel frame inside,carton outside) | ||
36.Quantity | 20FT:18PCS, 40HQ:42PCS | 20FT:18PCS, 40HQ:42PCS | 20FT:18PCS, 40HQ:42PCS |
PRICE | |||
37.MOQ | 1X20FT | 1X20FT | 1X20FT |
Company Profile

Established in 1996, Yongkang Jinling Vehicle Co., Ltd. covers an area of 15,000 square meters and boasts over 300 high quality management personnel and skilled technicians. Our Company is a manufacturer of various ATVs, pocket bikes, dirt bikes, mini choppers, gas scooters, electric scooters and mini scooters. In 1999, after marketing analysis, we decided to involve in developing ATVs (All Terrain Vehicles). So far, we have annual production capability of 20,000 units of ATV'S and our ATV range from 50cc, 90cc, 100cc, 125cc, 150cc, 200cc and up to 250cc Using three-dimensional CAD software, our R&D personnel have developed a range of ATV products that are both environmentally friendly and highly functional. Featuring streamlined designs and adopting highly efficient motors, our ATVs have several advantages over similar models. These include strong anti-shock properties, good safety levels, non-grade variable speed, low fault rate and low noise. Our enterprise pays great attention to product quality and makes the best use of the talents. We attach importance to ceaseless innovation, put emphasis on environmental protection. Our company endeavors to develop the fashionable products which can create the harmony and unity between humanity and nature. With the principle of 'Quality Utmost, Reputation Our Base,' we constantly introduce advanced production technology and management techniques. By these means, we may develop products that meet the demands of the current market. If you are interested in any of the products we currently have available, or have a customized order to fill, please contact us with your detailed requirements. We are looking forward to receiving your correspondences in the near future.
