XCMG 20 ton Truck Cranes QY20G.5
- 10 Unit / Units per Month
- China Port
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | XCMG |
Model Number: | QY20G.5 |
Product Description

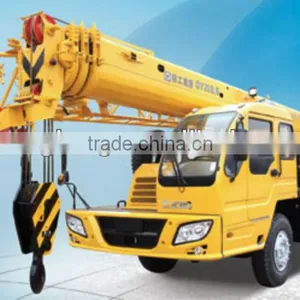

XCMG 20 ton Truck Cranes QY20G.5
Feature of 20 ton Truck Crane QY20G.5
More excellent performance
• The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
•Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
More reliable quality
• Adopt the classic K series jib telescoping technique, working safer and more reliable.
• Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.
• The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.
•The new power steering mechanism adopts hydraulic power design, which makes the steering light, flexible, and precise, and ensures the safety of the truck.truck crane
Parameter of 20 ton Truck Crane QY20G.5
Dimension | Unit | QY20G.5 |
Overall length | mm | 12400 |
Overall width | mm | 2500 |
Overall height | mm | 3320 |
Weight | ||
Total weight in travel | kg | 26020 |
Front axle load | kg | 6900 |
Rear axle load | kg | 19120 |
Power | ||
Engine model | SC8DK260Q3, WD615.327 | |
Engine rated power | kW/(r/min) | 192/2200 198/2200 |
Engine rated torque | N.m/(r/min) | 1100/1400 1150/1400 |
Travel | ||
Max. travel speed | km/h | 75 |
Min. turning diameter | m | 20 |
Min. ground clearance | mm | 275 |
Approach angle | ° | 16 |
Departure angle | ° | 13 |
Max. grade ability | % | 24 |
Fuel consumption for 100km | L | ≈35 |
Main performance | ||
Max. rated total lifting capacity | t | 20 |
Min. rated working radius | mm | 3000 |
Turning radius at turntable tail | m | 3.385 |
Max. lifting torque | KN.m | 860 |
Base boom | m | 10.06 |
Fully extended boom | m | 32.76 |
Fully extended boom+jib | m | 42.12 |
Longitudinal outrigger span | m | 4.97 |
Lateral outrigger span | m | 5.4 |
Working speed | ||
Boom luffing time | s | 75 |
Boom full extension time | s | 95 |
