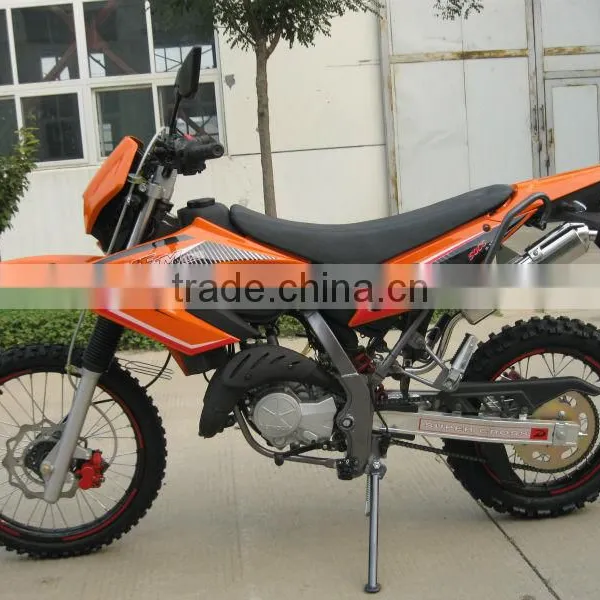

Mini Bike 49cc

Specifications

mini bike 49cc

EngineType                                   49cc, single-cylinder, 2-stroke, water-cooled

Bore x Stroke (mm)                      39.9 x 40

Compression Ratio                     11.5:1

Ignition                                            CDI

Transmission                                5-speed gear shift

Starting system                             Electric/kick

Max power(kw/r/min)                    5.0/8500

Max torque(Nm/r/min)                  5.1/8000

Max.speed(km/h)                          45

Drive                                                chain

Suspension/Front                        Spring oil damper

Suspension/Rear                         Swing-arm spring oil damper

Brakes/Front                                  Disc type

Brakes/Rear                                  Drum/Disc type

Tires/Front                                      2.75-21(race tire:110/70-17)

Tires/Rear                                      4.10-18(race tire:130/70-17)

Length x Width x Height                 2030mm×820mm×1190mm

Wheelbase                                      1360mm

Dry Weight                                        108kg

Fuel Capacity                                   7 L

Qty/40------------------------------  60units/40GP  130sets/40HQ(CKD)
