XBH 8X8-2 Standard amphibious vehicle with folding shelter 800cc 8 Wheel 4 Stroke ATV

Name: XBH 8X8-2 Standard amphibious vehicle with folding shelter 800cc 8 Wheel 4 Stroke ATV
Brand: XIBEIHU
Availability: InStock

FOB Price

USD $6,000 - $10,999 / Piece

3 Pieces(Min.Order)

Supply Ability 200000 Unit / Units per Month
Port NIngbo

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Fuel	Gas / Diesel
Engine Type	4 Stroke	Transmission Type	Automatic
Transmission System	Chain Drive	Certification	Other, CE
Brand Name	XIBEIHU	Place of Origin	Zhejiang, China
Model Number	XBH 8x8-2

Product Description

XBH 8X8-2 Standard amphibious vehicle with folding shelter 800cc 8 Wheel 4 Stroke ATV

Product Description

XBH 8×8-2 Standard Equipment Vehicle with folding vehicle Introduction:
Body Parameters:
Dimension:	3160×1720×1150mm
Wheel Base:	670×670×670mm
Track:	1420mm
Minimum Ground Clearance:	180mm
Complete Vehicle Kerb Mass:	750kg
Rated Load:	On Land:500kg(6 People)
Rated Load:	On Water:300kg(4 People)
Performance Parameters:
Start Mode:	Key
Ignition Mode:	EFI
Battery Specification:	12V/60Ah
Drive Mode:	On Land: All-wheel Drive
Drive Mode:	On Water: All-wheel Drive or Outboard Drive
Top Speed:	On Land:45km/h
Top Speed:	On Water: 5km/h(Tyre Stroke)or 12km/h(15HP Outboard)
Minimum Turning Radius:	0.71m
Maximum Climbing Angle:	32 º
Approach Angle:	54 º
Departure Angle:	57 º
Brake Mode:	Caliper Hydraulic Brake
Tyre Specification:	25×12(11.5)-9NHS
Tyre Pressure:	5-7psi (34.5-48.3kPa) With Track: 3-5psi(20.7-34.5kPa)
Transmission Mode:	Belt and Chain Transmission
Dynamic Parameters:
Engine Model:	SQR372
Engine Type:	Vertical 3-Cylinder, Water-cooling, 4-Stroke, Inline DOHC
Oil-supply Mode:	MPI
Cylinder Diameter ×Stroke:	3-72×66.5mm
Displacement:	812ml
Compression Ratio:	9.5:1
Rated Power and Turning Speed:	39kW(6000r/min)
Max. Torque and Turning Speed:	70N•m(3500~4000r/min)
Idle Speed:	900±50r/min
Lubricating Mode:	Pressure and Splash Lubrication
Cooling Mode:	Forced Circulation and Antifreeze Coolant
Clutch System:	CVT
Transmission Type:	CVT+2 Forward Gears, Neutral, Reverse Gear
Fuel Type:	Gasoline 93#
Oil Tank Capacity:	38L
Others:
Optional Equipment:	Bumper, Drain Equipment, Traction Ball Head, Safety Belt, Rear Foot Pedal, Winch, Outboard Motor, Track, Foldable Windshield, Windshield Wiper, Anti-roll Rack, Top, Convertible Top, Utility Storage Pouch, Vehicle Cover, Alert Lamp, Four-way Overheating Prevention System, Heating System, Snow Plough, Breakwater Board etc.
Performance Characteristics:	8×8 All Wheel Drive, Braking Differential Steering, CVT, 32 Degree Climbing, 360 Degree Turning on the Ground, 1 Meter Wide Trenches Across, ±40 ℃ Temperature Work and Full-sealed High Strength Vehicle Body etc.
Certificate:	CE certificate, CCS certificate and National Motor Vehicle Products Quality Supervision and Inspection Center certificate.
Functionality:	Rescue, Exploration, Hunting, Fishing, Tourism, Entertainment etc.
Application Scope:	All Terrains such as Swamp, Beach, Non-paved Road; Rivers, Lakes and other Calm Waters ( 4 grade water); Hills, Snow Land, Forest, Desert etc.

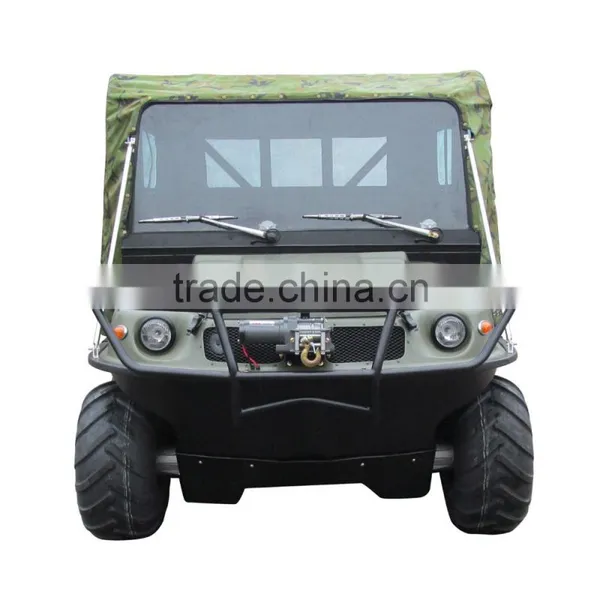

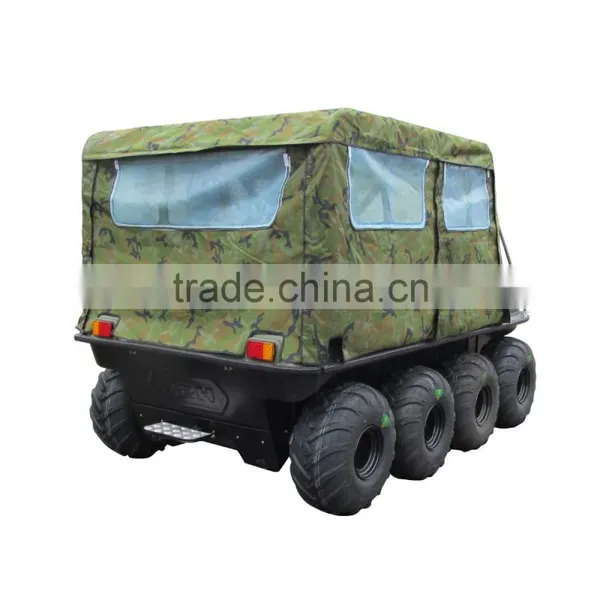

Product Pictures

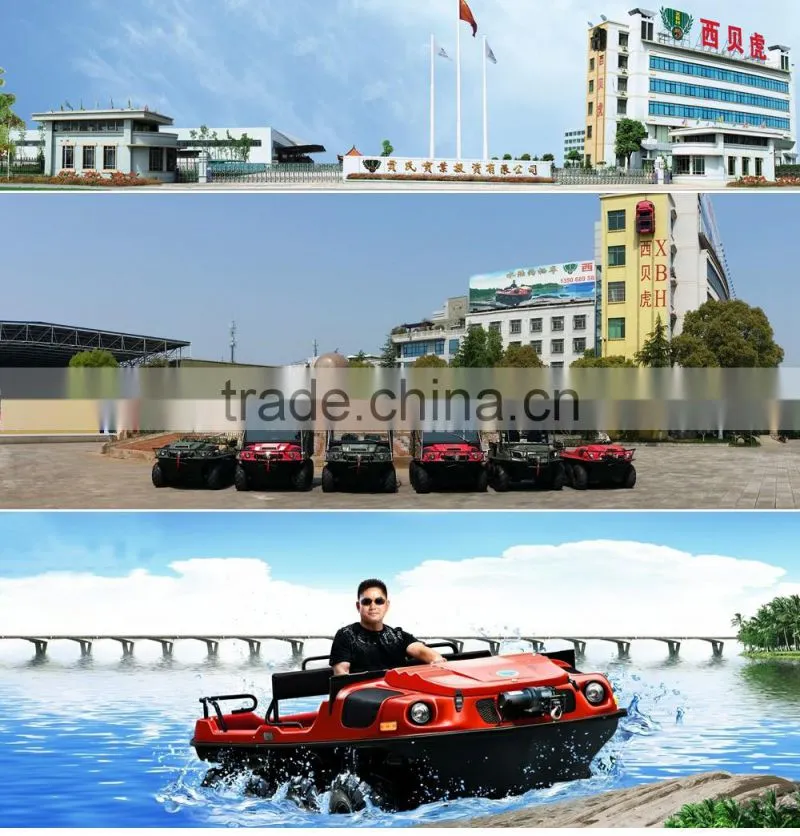

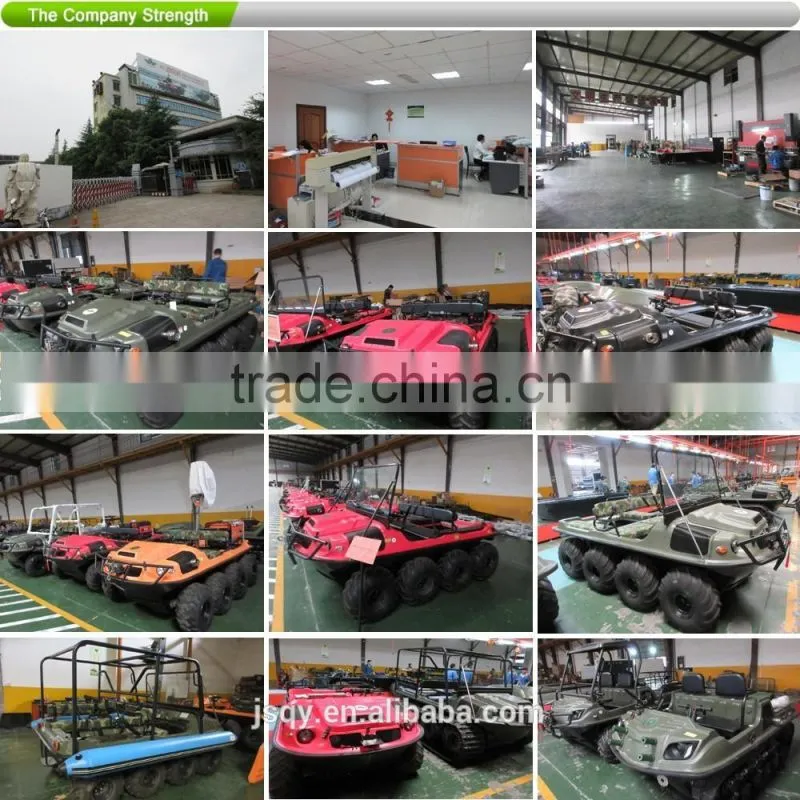

Company Information

In 2005, Yiwu Xi Beihu Special Vehicle Co., Ltd., which is specially engaged in the development, production and sales of amphibious special vehicles, is a high-tech enterprise invested by Jia's Industrial Co., Ltd. with a total investment of 200 million yuan. The company has a dozens of senior technical staff of the product development team and the international advanced production equipment, and through the Chinese People's Liberation Army Armored Engineering Institute of cooperation to ensure that the company's research and development capabilities and technical level.

After years of research, the company has successfully developed a new generation of complete intellectual property rights of all terrain vehicle --- "Xi Beihu" amphibious special vehicles. The successful development of the car, to fill the domestic amphibious all terrain operation vehicle blank, breaking the domestic automobile industry single use limit.

The performance test and practical application show that "Xi Beihu" in the water, hills, swamps, snow, forests and other bad terrain in the free travel, and can be ± 40 ℃ in the ultra-conventional temperature environment for continuous Operations, the key technical indicators to achieve and exceed the international advanced level.

FAQ

1.Q:Are your company a manufacturer or trading company?

A:We are a manufacturer with 13 years .And 10years of exporting experience

2.Q:Where is your factory? How can I get there?

A:Our factory is located in Yiwu City, Zhejiang Province.Which closed to Yiwu Airport.We are highly welcome your visit of our factory.And we can picked you up from the Yiwu airport.

3.Q:Can your products be customized?

A: Almost all of our products can be customized, including the sizes, color, logo, package and so on. OEM is acceptable.

What's your Product MOQ?

A:For whole set car 3units/1X20GP container,MOQ 3units.

4. Q: What is the advantages of your products?

A: High quality and copetitive price. Xibeihu Pay attention to production quality control from the beginning to the end . Each product will be fully assembled and carefully tested before it's packed for shipment.

5. Q: What makes your company a reliable supplier?

A: Many years of experience in manufacturing and exporting.Strict quality control, the QC strictly carries on a precise process to ensure the best quality. We have the most professional overseas sales and customer service team. In a word, we offer you not only the products, but also the professional service.
