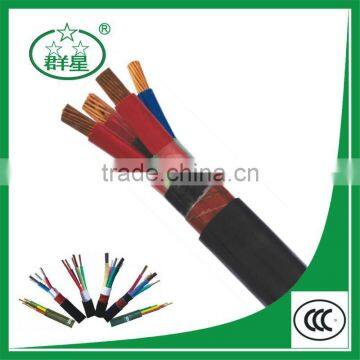

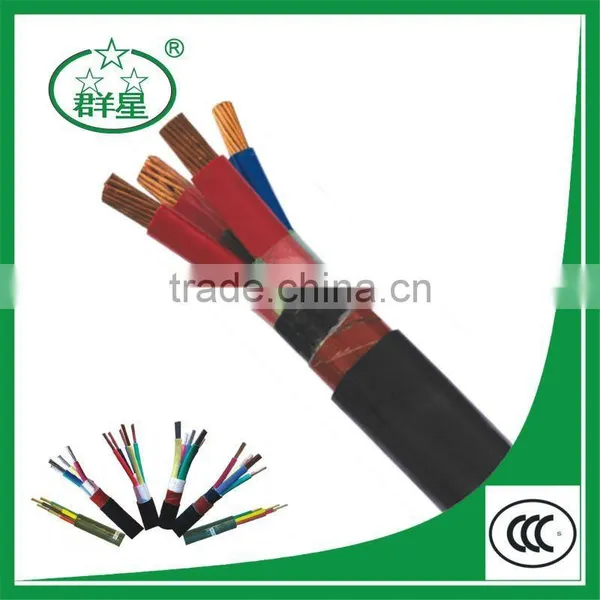

pvc power cable

Specifications

pvc power cable
1,Conductor: Copper/Aluminum
2,Insulation: PVC
3,Jacket:PVC
4,Armored:Option

pvc power cable





Application
These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant...).



Construction



Conductor
Solid Aluminum or Copper conductor, round stranded or shaped

Insulation
PVC(Polyvinyl Chloride)
Colour Code
1 Core :   Brown
2 Cores:   Brown or Blue
3 Cores:   Brown, Black, Grey
4 Cores:   Blue, Brown, Black, Grey
5 Cores:   Green-yellow, Blue, Brown, Black, Grey
Above 5 Cores: White Cores with black numbers



Filler(optional)
PVC or Polypropylene yarn
Binder Tape(optional)
Polyester (Mylar) tape
Inner Sheath/ Bedding
PVC (Polyvinyl Chloride)



Armour
Single Core: AWA (Aluminum Wire  Armour)
Multi Core: SWA (Steel Wire or Tape Armour)

Voltage rating
600/1000V

Temperature rating
-20°C to +60°C

Bending radius
Single core: 10 x overall diameter
Multicores: 8 x overall diameter
