fire resistance instrument cable

Specifications

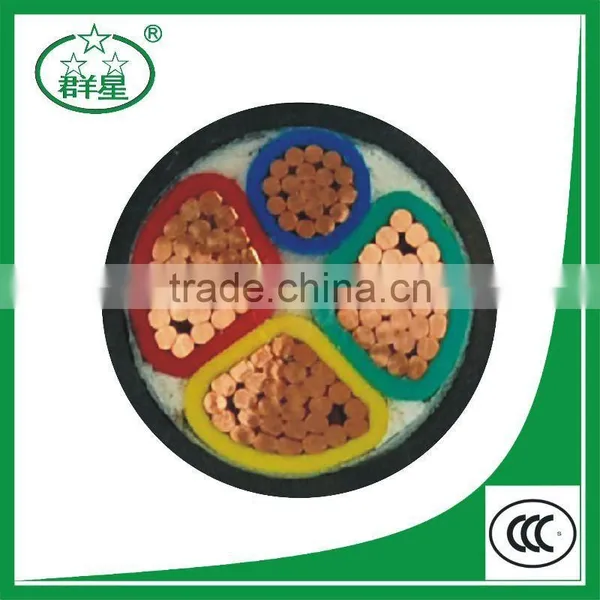

fire resistance instrument cable
1,Conductor: ALuminum,Copper
2,Insulation: PVC
3,Jacket:PVC
4,Armored:Option

 fire resistance instrument cable



Application:

Power cables for power networks, underground, outdoors and in cable ducting.

Standards:

GB/T 12706

Conductor:

Copper & Aluminum

Conductor screen:

Semi-conducting Layer

Insulation:

PVC

Insulation Screen:

Semi-conducting Layer

Metallic Screen:

Individual and overall copper tape screen

Bedding:

PVC

Armoring:

Single Core: Aluminum Wire Armored (AWA)
Multicourse: Steel Wire Armored (SWA)

Sheath:

PVC

Color:

Red or Black

Voltage Rating:

0.6/1kv,50 HZ

Temperature Rating:

0 to +70°C

Minimum Bending Radius:

Single Core: 15 x overall diameter
Three Core: 12 x overall diameter
(Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)

>Not drop restriction on laying

>Stable & process performance

>Strong ability to adapt to the environment

>Short circuit (the longest duration of not more than 5s)

>The highest temperature of cable does not exceed 250 °C

>The maximum normal operating temperature of conductor 70°C

>Good flexibility, easy maintenance, installation, simple structure

>AC rated voltage 0.6/1kv,50 HZ for the fixed installation , transmission and distribution lines.

In cable laying, to ensure sufficient mechanical tension in the case of not drop restrictions, but the single core cable can’t be laid in the iron pipe, it’s also not permissible for using steel instrument around and fix the cable .During the cable laying ,its temperature is not less than zero,

Model:

copper(aluminum)conductor PVC insulation PVC  sheathed power cable (VV,VLV)

copper(aluminum)conductor PVC insulation  PE sheathed power cable (VY,VLY)

copper(aluminum)conductor PVC insulation  steel tape armoured PVC  sheathed power cable(VV22,VLV22)

copper(aluminum)conductor PVC insulation  steel tape armoured PE  sheathed power cable(VY22,VLY22)

copper(aluminum)conductor PVC insulation  thin steel-wire armoured PVC sheathed power cable (VV32,VLV32)

copper(aluminum)conductor PVC insulation  thin steel-wire armoured PE sheathed power cable (VY32,VLY32)

copper(aluminum)conductor PVC insulation  Thick steel-wire armoured PVC sheathed power cable (VV42,VLV42)

copper(aluminum)conductor PVC insulation  Thick steel-wire armoured PE sheathed power cable (VY42,VLY42





No.of Core ×Cross-sectional Area (mm2)	Thin steel wire Armoured Cable
	Approx.Outer Diameter (mm)	Approx.Weight  kg/km
		VV32	VLV32
4×10	24	1305	1060
4×16	27	1659	1266
4×25	30	2191	1574
4×35	33	2701	1848
4×50	34	3480	2301
4×70	38	4465	2778
4×95	44	6173	3861
4×120	47	7268	4366
4×150	52	8762	5117
4×185	57	10536	6016
4×240	63	13120	7268
4×300	71	16764	9400
4×400	78	20988	11317
