2 cores electric wire
- 1000 Kilometer / Kilometers per Month
- Shenzhen
- T/T Credit Card
Product Details
| Place of Origin: | Guangxi, China | Brand Name: | Qunxing | Model Number: | VV, VLV |
| Type: | Low Voltage | Application: | Construction | Conductor Material: | Copper |
Product Description
3 cores Power Cable
PVC insulation & sheath power cable
20170208
| Model | Name |
| BV | Copper Core PVC Insulation Wire |
| BLV | Aluminum Core PVC Insulation Wire |
| BVR | Copper Core PVC Insulation Flexible Wire |
| BVV | Copper Core PVC Insulation PVC Sheath Round Wire |

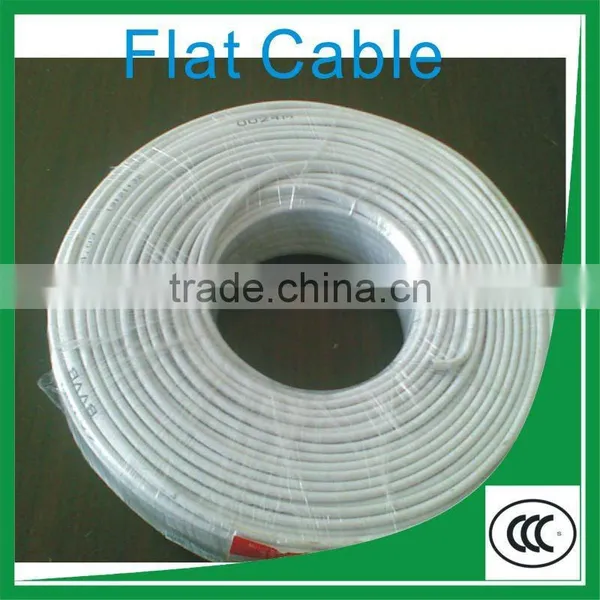

| BVVB | Copper Core PVC Insulation PVC Sheath Flat Wire |
| BLVVB | Aluminum Core PVC Insulation PVC Sheath Flat Wire |
| BV-90 | Copper Core Heat-resistance 105oC PVC Insulation |
Specification
Rate voltage U0/U: 450/750V,300V/500V,300V/300V.
Temperature Range:70-90°C
Conductor: Copper or Aluminum
Insulation: PVC
Colours:Black,Red,Yellow,Green,Blue,etc
Characteristic
High/low temperature resistant, anti-acid, anti-oil, antisepsis and moisture
Application
Apply to Household appliance, Illumination and Lighting and Headlamp, electric machines, temperature sensor Military series, Metallurgy Chemical series, Motor cars and Ships Electrical Installation.
Specification Size and Technical Data
| Nominal | Conductor | Nominal | Max overall | Condcutor | Min insulated | Weight | ||
| sectional area | No/Dia. | Insulated thick | Dia. | Resistance at | resistance at | Kg/km | ||
| mm2 | mm | mm | mm | 20 | 70MΩ/km | |||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.01 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.01 | 30.8 | 15 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.007 | 65 | 29 |
| 10 | 7/1.35 | 1 | 7 | 1.83 | 3.08 | 0.0065 | 110 | 52 |
| 16 | 7/1.70 | 1 | 8 | 1.15 | 1.91 | 0.005 | 170 | 70 |
| 25 | 7/2.14 | 1.2 | 10 | 0.727 | 1.2 | 0.005 | 270 | 110 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.004 | 364 | 150 |
| 50 | 19/1.78 | 1.4 | 13 | 0.387 | 0.641 | 0.0045 | 500 | 200 |
| 70 | 19/2.14 | 1.4 | 15 | 0.268 | 0.443 | 0.0035 | 688 | 269 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.32 | 0.0035 | 953 | 360 |
| 120 | 37/2.03 | 1.6 | 19 | 0.153 | 0.253 | 0.0032 | 1168 | 449 |
| 150 | 37/2.25 | 1.8 | 21 | 0.124 | 0.206 | 0.0032 | 1466 | 551 |
| 185 | 37/2.52 | 2 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808 | 668 |
