co-extruded permanently lubricated hdpe ducts by china manufacturer

shipping packaging of cable pipe for communication

Specifications

co-extruded permanently lubricated hdpe ducts by china manufacturer
1.Protect optical cable,telecom cable.
2.2000M per Roll.



co-extruded permanently lubricated hdpe ducts by china manufacturer

Characteristics:

To catch up with the development of world telecom industry, our company researched and develop this product by our abundant technical strength and rich production experience through two years hard work. Its main characteristics are:

1.       Adopt the mode of multi-machine co-extrusion, silicon core layer is synchronizely embedded in the pipe. It will be lubricated and not be stripped forever.

2.       The friction coefficient of the inner wall is very small. Optical cable (electric cable) can be repeatedly extracted and tensioned in the pipe. Trough using cable blowing machine, one time blowing length can be 1000 to 2000 meter under normal conditions.

3.       Good tightness, waterproof, damp-proof, can avoid the damage by rodent animals.

4.       With great ring stiffness and toughness. In construction, its bending radius should not be less than 10 times of the external diameter of the pipe.

5.       Aging-resistant, anticorrosion of chemicals. With long service life, and will not deteriorate within 50 years in the earth.

6.       Good weather resistant ability, and its suitable temperature scope is from -40 to 100.

7.       Convenient in construction. This will save time and the project cost is only 30% of the PVC pipe.

Specifications:

1. Specification

Φ50/42Φ48/40Φ46/38Φ40/33Φ34/28Φ32/26

Also we can offer customized specification according to customers requirement.

2. Color

We can produce various pure color pipes. Also we can add color strip on pure color pipe to divide many pipes assembled together.

3. Recommend specification and color:

We recommend you to use black color with colorful strip pipe to improve the antioxidising ability.

Φ40/33 is the most popular specification according to our experience. Normal length is 2000m/roll, it is the best choice for design and construction. Also we can offer you 500m to 3000m per roll pipe according to your requirement.

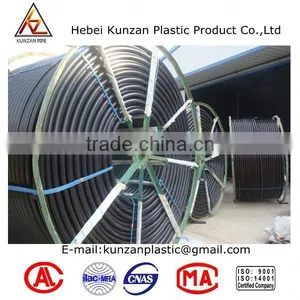

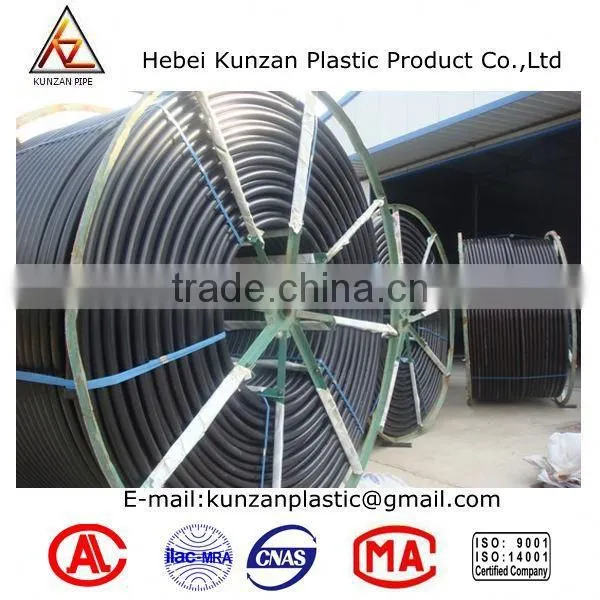

4. Length and Packing

2000m per drum, using cable blowing machine to blow 2000m per time. The most advanced optical fibre cable protection pipe.

Packing with Steel drums and plastic cloth.



Application scope
Applies to the piping system of outside communication cable and optical cable, or construction for public information network, public transmission system, cable television network and freeway communication.
