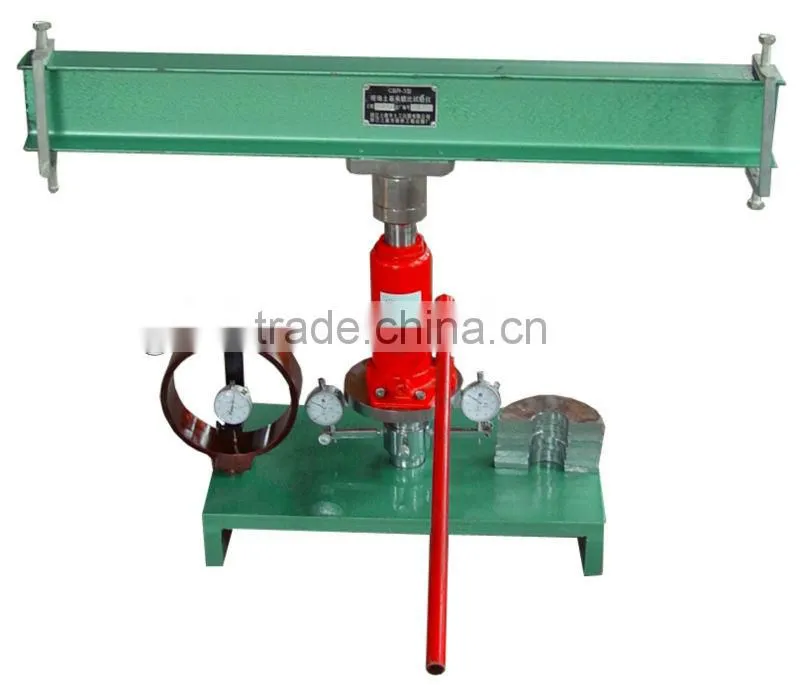

STCBR-2 In-situ Field CBR Test Equipment / Test euipment for CBR
- 150 Set / Sets per Month
- Shanghai port
- T/T
-
Reaction Force Framework and concrete test apparatus for concrete beam examination
-
Digital weight indicator ZDY-03
-
Weight Indicator ZDY-03
-
Standard Load Cell and weight indicator ZDY-03
-
K-30 Thermal Resistance for estimate bearing capacity of road base or ground base
-
STK-3 Bearing capacity test for road
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | SHTG | Model Number: | STCBR-2 |
| Power: | Electronic | Usage: | Other, cbr test equipment |
Product Description
Specifications
cbr test equipment1.Hydraulic jack Capacity: 100KN (ball seat)
2.Proving ring: 60KN

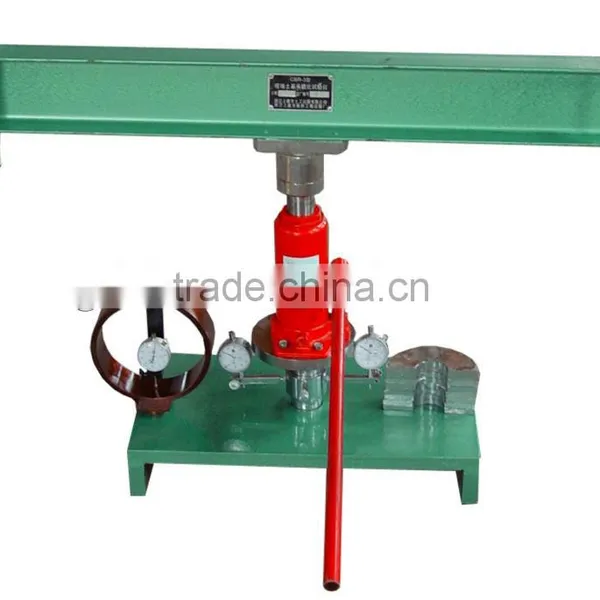

STCBR-2 In-situ Field CBR Test Equipment
1. with hydraulic jack
2. suitable for all kinds of earth base materials at road site
Introduction :
It's designed and made according to JTJ059-95 “Road Base and Road Surface Site Determine Rules”. It is applicable for determining the site CBR value of all kinds of earth base materials at road site.
The operating principle is: calculate the earth base site CBR value with the quantity of penetration and the load tested by the ergometer. The quantity penetration can be tested by a load motorcar with back axis load less than 60KN with loading at the penetration pole by a jack.
Specifications:
(1) 100KN hydraulic jack and the ball base
(2) 60KN ergometer
(3) Penetration pole diameter: Φ50mm length 200mm
(4) Bearing plate : 1.25kg/piece 4 pieces
(5) Penetration determinate fitting platform and dial indicator
Manufacturing License for China Industrial Products( XK07-003-00014)
