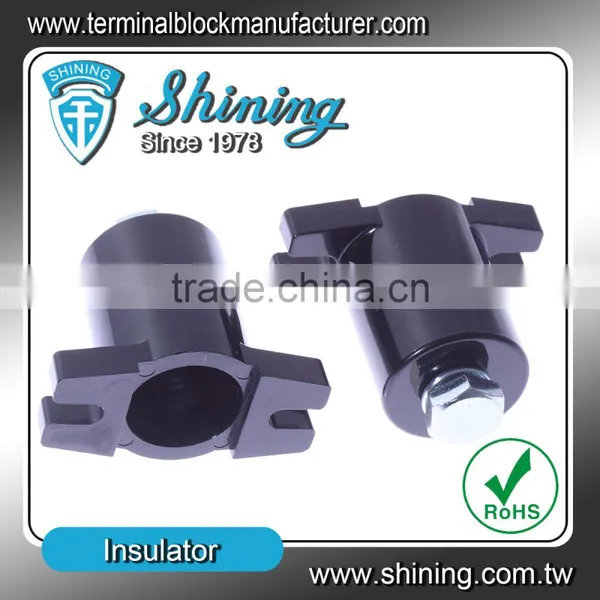

SL-3550 1.2KV Fog Different Type Of Busbar Bus Post Insulator
- 100000 Piece / Pieces per Month
- Keelung
- Credit Card
- SL-4050F Black M10 Plastic Busbar Low Voltage Electrical Insulator
- SL-3035 6.6KV Epoxy Resin Shackle Composite Pin Post Insulator
- SL-4050F Screw In Bus Bar Support Plastic Overhead Line Insulator
- SL-3550 Thermoplastic 1.2KV Polymer Post Plastic Clamp Insulator
- SL-3040 Epoxy 6.6KV Electrical Standoff Bus Post Heat Insulator
- ET-12 High Quality High Voltage Plastic 11KV Line Post Insulator
Product Details
Place of Origin: | Taiwan | Brand Name: | SHINING | Model Number: | SL-3550 |
Type: | Insulator | Material: | Other, Theromplastic | Application: | Low Voltage |
Rated Voltage: | 1.2 KV | Tensile Strength: | 10 Nm |
Packaging Details
100pcs/N.W. :10.0kgs /carton
Product Description
Specifications
SL-3550 1.2KV Fog Different Type Of Busbar Bus Post InsulatorDimensions: 64*36*50mm
Rated Voltage: 1.2KV
Temperature: +110C
SL-3550 1.2KV Fog Different Type Of Busbar Bus Post Insulator
•Itm number: SL-3550
•Dimension: 64x36x50mm
•Rate Voltage: 1.2KV
•Working Temperature: 1100C
•Insulator Material: Thermoplastic
•Color: Black
•Default Screw: M10
•Rated Torque(N-m): 10
•Packing: 100pcs/1ctn / N.W. :8.0kgs /carton
•Webpage: SL Series Lox Voltage Standoff Insulator
Series Name | ET-12 | SL-2540 | SL-3550 | SL-4050F | SL-3035 | SL-3040 |
Picture | ||||||
Dimensions | 142*36*70 mm | 45*25*40 mm | 64*36*50 mm | 66*40*49 mm | 30*32*35 mm | 30(40)*40 mm |
Rated Voltage [V] | 11 KV | 1.2 KV | 1.2 KV | 1.2 KV | 6.6 KV | 6.6 KV |
Working Temp. | +1000C | +1100C | +1100C | +1100C | +1100C | +1100C |
Insulator Material | Resin | Thermoplastic | Thermoplastic | Thermoplastic | Epoxy | Epoxy |
Color | Black | Black | Black | Black | Red | Red |
Default Screw | M10 | M8 | M10 | M10 | M8 | M8 |
Alternative Screw (MOQ required) | N/A | M6, 1/4", 5/16" | M8, M12, 5/16", 3/8", 1/2" | M8, M12, 5/16", 3/8", 1/2" | N/A | N/A |
Rated Torque [N-m] | 10 | 6 | 10 | 10 | 6 | 6 |
Drawing | ET-12 Drawing | |||||
|
