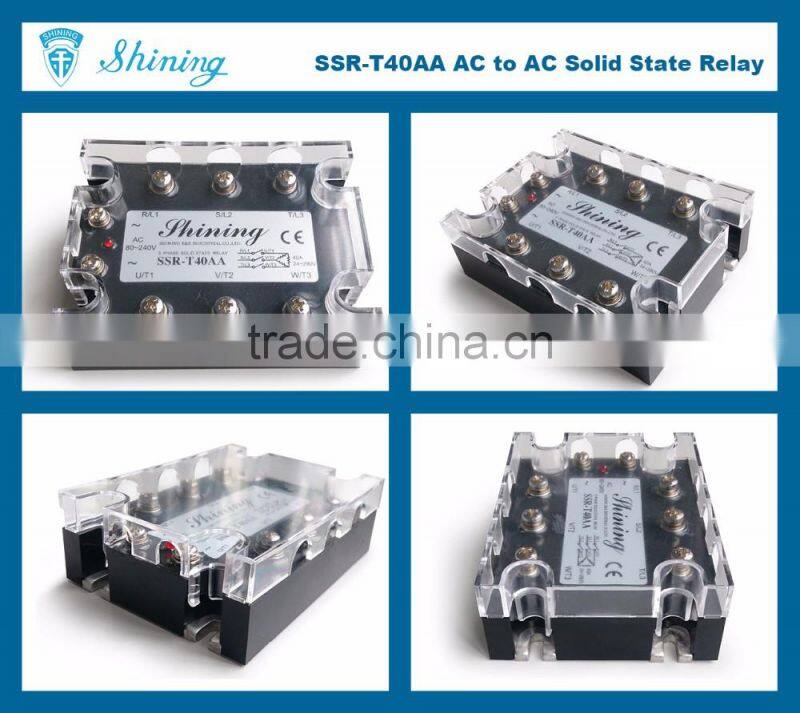

SSR-T40AA 40A Three Phase AC To AC Power SSR Relay
- 1000 Piece / Pieces per Month
- Keelung
- T/T Credit Card PayPal
-
SSR-S25DA 25 Amp DC To AC Single Phase SSR Solid State Relay
-
SSR-S25AA-H Shining 25A AC to AC UL High Power 240V Output Relay
-
SSR-S10AA UL/CE Approval Solid State Electrical Relay AC 10A SSR
-
SSR-S40DA-H DC to AC Type CE 40A Single Phase Solid State Relay
-
SSR-S10DA-H UL/cUL Approval Electric Relays Single Phase 10A SSR
-
SSR-T40DA Industrial Use CE Approved 40A DC to AC 3 Phase SSR Relay
Product Details
| Place of Origin: | Taiwan | Brand Name: | SHINING | Model Number: | SSR-T40AA |
| Theory: | Solid State Relay | Usage: | General Purpose | Size: | Miniature |
| Protect Feature: | Sealed | Contact Load: | Low Power |
Packaging Details
30pcs/N.W. :13.3kgs /carton
Product Description
| SSR-T40AA 40A Three Phase AC To AC Power SSR Relay |
| Gerneral Product Information | |
| Item number: | SSR-T40AA |
| Load Current: | 40A |
| Input Voltage: | 80~240 VAC |
| Output Voltage: | 24~280 VAC |
| Dimension: | 103*79*27 mm (L*W*H) |
| Type: | AC to AC, Three Phase |
| Dimensions [mm] | ||||||
| Item No. | Load Current | Input Voltage(VAC) | Output Voltage(VAC) | Length(L) | Width (W) | Height (H) |
| SSR-T25AA | 25A | 80~240 | 24~280 | 103 mm | 79.0 mm | 27.0 mm |
| SSR-T40AA | 40A | |||||
| SSR-T25AA-H | 25A | 90~480 | ||||
| SSR-T40AA-H | 40A | |||||
| Product Photos |
| Product Features |
• Item Number: SSR-T40AA • Load Current: 40A • Input Voltage: 80~240 VAC • Output Voltage: 24~280 VAC • 600V Transient Capability • Low EMI/EFI & Surge by zero cross trigger control • High Isolation over than 50MΩ/500VDC • Panel Mounting • LED Input status Indicator • Integrated with removable tinger-proof cover SSR-T-CV • Fast reaction, high reliability and long life • No switching speaks, no noise, and no contact points. • Excellent for switching control of switchboard panel, heaters, printers, machines, UPS • CE Compliant • Type: AC to AC, Three Phase • Certificate: CE
SSR-TxxAA Series Solid State Relay are Panel Mounted Mounted Three Phase Solid State Relay, the basic color is black. The Load Current is 25A or 40A. The Input Voltage is 80~240VAC, and Output Voltage is 24~280VAC / 90~480VAC. About this Solid State Relay, it can be install on Heat Sink with Electrical Fans. Protective Cover (SSR-T-CV) is an optional parts for this SSR. The SSR are RoHS approved. |
| Specification Sheet | ||||
| SSR-TXXAA(-H) Product Picture | | |||
| Item No. | SSR-T25AA | SSR-T40AA | SSR-T25AA-H | SSR-T40AA-H |
| Specifications | ||||
Total Length (L) [mm] | 103 | |||
| Ref 1. L1 x W1 [mm] | 24.1 x 27.6 mm | |||
| Ref 2. L2 x W2 [mm] | 88.9 x 47.5 mm | |||
| Ref. Diameter (Ø) | 5.2 mm | |||
| Electrical Specification | ||||
| Max. Load Current | 25A | 40A | 25A | 40A |
| Control Method | Zero Cross | |||
| Input Operating Voltage | 80~240 VAC | |||
| Input Current | 60mA@ 32 VDC | 60mA@ 220 VAC | ||
| Must Turn Off Voltage | 0~70 VAC | |||
| Output Load Voltage Range | 24~280 VAC | 24~280 VAC | 90~480 VAC | 90~480 VAC |
| Max. One Circle Peak Surge | 250 A | 400 A | 250 A | 400 A |
| Min. Blocking Voltage | 600 V | |||
| Turn On & Turn Off Time | <1/2 AC circle | |||
| Isolate Impedance | 50 Mega Ohm / 500 VDC | |||
| Max. On-State Voltage Drop | 1.6 V / 25oC | |||
Materials | ||||
| Body Materials | PBT | |||
| Color | White | |||
Accessories & Parts | ||||
| Protective Cover | SSR-T-CV (Optional) | |||
| Heat Sink Heat Sink | HS-80XXX series (HS-80050, HS-80100, HS-80150, HS-80200) | |||
| Fan | FAC-80, FDC-80, FDC-50 fans | |||
| Approval & Certificate | CE | |||
| Packaging |
| 30pcs/1 cartom. N.W. :13.3kgs |
