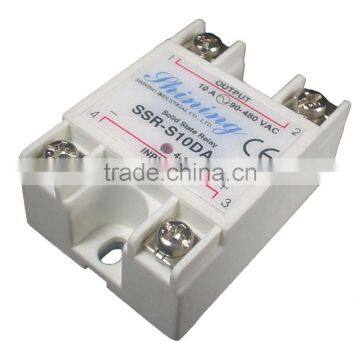

SSR-S10DA-H Ul Approval Industrial Solid State Relay Heater 10A
- 10000 Piece / Pieces per Month
- Keelung
- Credit Card
- SSR-S10DA-H Fast Reaction Miniature Zero Crossing Solid State Relay
- SSR-S25AA Alibaba Shining Solid State And Zero Cross Relay 25A
- SSR-S25AA-H Reversible Zero Cross Solid State Relay 240V 25A
- SSR-S25DA 25A DC to AC Industrial Input Solid State Relay Module
- SSR-S25DA-H 25A White DC To AC Fotek Type Solid State Relay
- SSR-S40AA Panel Mounting Solid State Electric 40A Relay Module
Product Details
Place of Origin: | Taiwan | Brand Name: | shining | Model Number: | SSR-S10DA-H |
Theory: | Solid State Relay | Usage: | General Purpose | Size: | Subminiature |
Protect Feature: | Epoxy | Contact Load: | Low Power |
Packaging Details
100pcs/N.W. :11.6kgs /carton
Product Description
Specifications
SSR-S10DA-H Ul Approval Industrial Solid State Relay Heater 10A1.Input voltage:4~32VDC
2.Output Load Voltage Range:90~480VAC
SSR-S10DA-H Ul Approval Industrial Solid State Relay Heater 10A
• Item number: SSR-S10DA-H
• Output Load Current: 10A
• Output Load Voltage Range: 90~480VAC
• Operate InputCurrent: 4~32VDC
• 600V Transient Capability
• Low EMI/EFI & Surge by zero cross trigger control.
• High Isolation over than 50MΩ/500VDC
• Panel Mounting
• LED Input status Indicator
• Integrated with removable tinger-proof cover SSR-S-CV
• Fast reaction, high reliability and long life
• No switching speaks, no noise, and no contact points.
• Excellent for switching control of switchboard panel, heaters, printers, machines, UPS
• UL and cUL Approval. File No. E301692. CE Compliant.
• Packing: 100pcs/ctn, N.W. :11.6kgs /carton
• Webpage:SSR-SXXDA Series DC to AC Solid State Relays
(Series Name or) Product Item No. | SSR-S10DA | SSR-S25DA | SSR-S40DA | SSR-S10DA-H | SSR-S25DA-H | SSR-S40DA-H |
Specifications/Dimensions | ||||||
L x W x H | 57 x 42 x 24 mm | 57 x 42 x 24 mm | 57 x 42 x 24 mm | 57 x 42 x 24 mm | 57 x 42 x 24 mm | 57 x 42 x 24 mm |
Ref. L1 x W1 | 43.8 x 27 mm | 43.8 x 27 mm | 43.8 x 27 mm | 43.8 x 27 mm | 43.8 x 27 mm | 43.8 x 27 mm |
Ref. L2 x W2 | 46.3 x 12 mm | 46.3 x 12 mm | 46.3 x 12 mm | 46.3 x 12 mm | 46.3 x 12 mm | 46.3 x 12 mm |
Ref. Diameter (Ø) | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm |
Electrical Specifications | ||||||
Max. Load Current | 10 A | 25 A | 40 A | 10 A | 25 A | 40 A |
Control Method | Zero Cross | Zero Cross | Zero Cross | Zero Cross | Zero Cross | Zero Cross |
Input Operating Voltage | 4~32 VDC | 4~32 VDC | 4~32 VDC | 4~32 VDC | 4~32 VDC | 4~32 VDC |
Input Current | 20mA@ 32 VDC | 20mA@ 32 VDC | 20mA@ 32 VDC | 20mA@ 32 VDC | 20mA@ 32 VDC | 20mA@ 32 VDC |
Must Turn Off Voltage | 0~2.5 VDC | 0~2.5 VDC | 0~2.5 VDC | 0~2.5 VDC | 0~2.5 VDC | 0~2.5 VDC |
Output Load Voltage Range | 24~280 VAC | 24~280 VAC | 24~280 VAC | 90~480 VAC | 90~480 VAC | 90~480 VAC |
Max. One Circle Peak Surge | 120 A | 250 A | 400 A | 120 A | 250 A | 400 A |
Min. Blocking Voltage | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
Turn On & Turn Off Time | < 1/2 AC circle | < 1/2 AC circle | < 1/2 AC circle | < 1/2 AC circle | < 1/2 AC circle | < 1/2 AC circle |
Isolate Impedance | 50M Ohm / 500 VDC | 50M Ohm / 500 VDC | 50M Ohm / 500 VDC | 50M Ohm / 500 VDC | 50M Ohm / 500 VDC | 50M Ohm / 500 VDC |
Max. On-State Voltage Drop | 1.6 V / 25oC | 1.6 V / 25oC | 1.6 V / 25oC | 1.6 V / 25oC | 1.6 V / 25oC | 1.6 V / 25oC |
Materials | ||||||
Body Materials | PBT | |||||
Color | White | |||||
Accessories & Parts | ||||||
Protective Cover | SSR-S-CV (Optional) | |||||
Heat Sink | HS-60XXX series (HS-60050, HS-60100, HS-60150, HS-60200) | |||||
Approval & Certificate | UL/cUL File No. E301692, CE, LVD |
