SSR-T40DA CE Approved With Black Color 40A Fotek SSR Relay
- 1000 Piece / Pieces per Month
- Keelung
- T/T Credit Card PayPal
-
SSR-T40DA CE Approved 3 Phase Panel Mounted Solid State Relay
-
SSR-S10AA 10A Fotek Type Solid State Relay UL cUL Approval SSR
-
SSR-S40DA-H Taiwan 40A Panel Mounting DC to AC Solid State Relay
-
SSR-S25AA UL CE Approved AC To AC Single Phase 25A SSR
-
SSR-S25AA AC SSR Solid State General Kinds Of Relays Electrical 24V
-
SSR-T40AA-H Equal To Fotek AC To AC 40A SSR Solid State Relay
Product Details
| Place of Origin: | Taiwan | Brand Name: | SSR-T40DA | Model Number: | SHINING |
| Theory: | Solid State Relay | Usage: | General Purpose | Size: | Subminiature |
| Protect Feature: | Sealed | Contact Load: | Low Power |
Packaging Details
30pcs/13.3kgs/1ctn
Product Description
| SSR-T40DA CE Approved With Black Color 40A Fotek SSR Relay |
| Gerneral Product Information | |
| Item number: | SSR-T40DA |
| Load Current: | 40A |
| Input Voltage: | 4~32 VDC |
| Output Voltage: | 24~280 VAC |
| Dimension: | 103*79*27 mm (L*W*H) |
| Type: | DC to AC, Three Phase |
| Dimensions [mm] | ||||||
| Item No. | Load Current | Input Voltage(VDC) | Output Voltage(VAC) | Length(L) | Width (W) | Height (H) |
| SSR-T25DA | 25A | 4~32 | 24~280 | 103 mm | 79.0 mm | 27.0 mm |
| SSR-T40DA | 40A | |||||
| SSR-T25DA-H | 25A | 90~480 | ||||
| SSR-T40DA-H | 40A | |||||

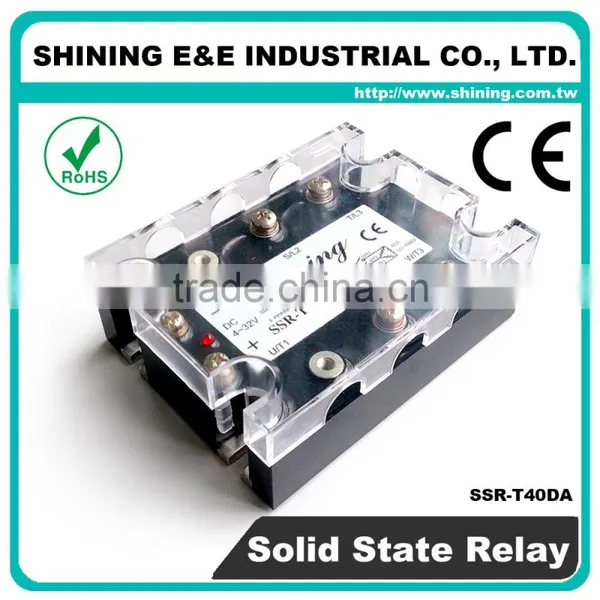

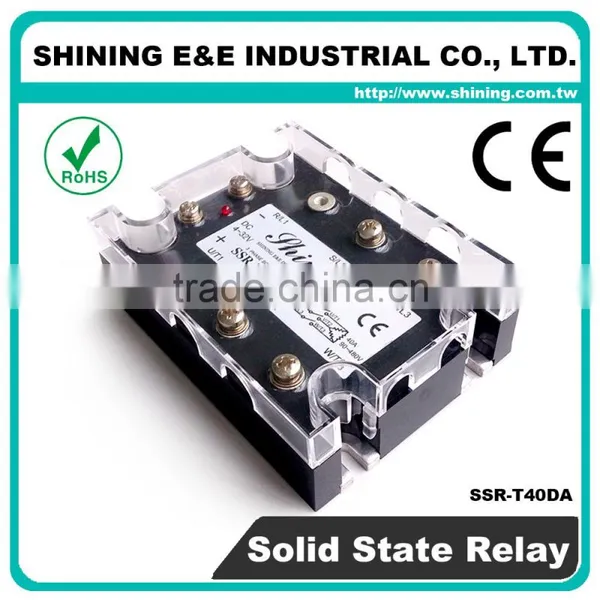

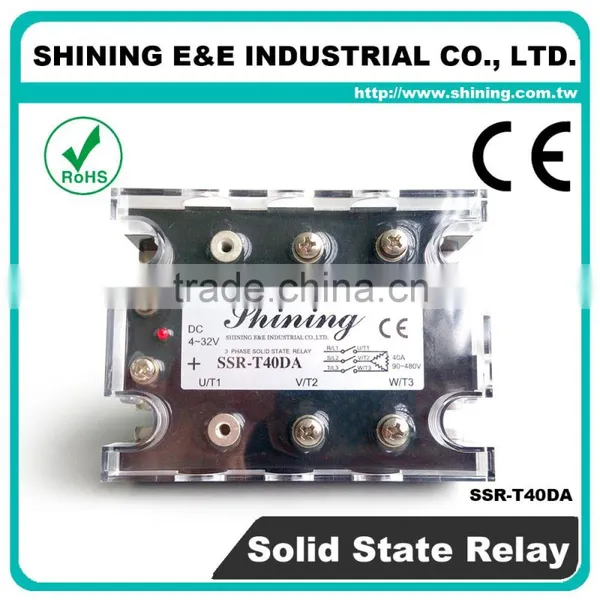

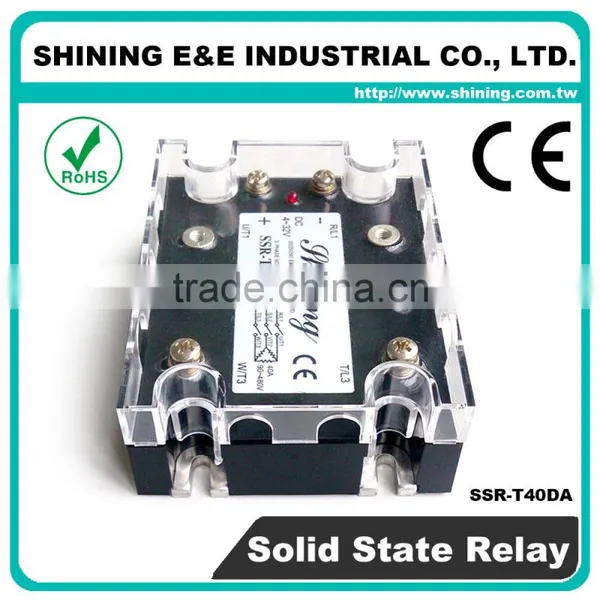

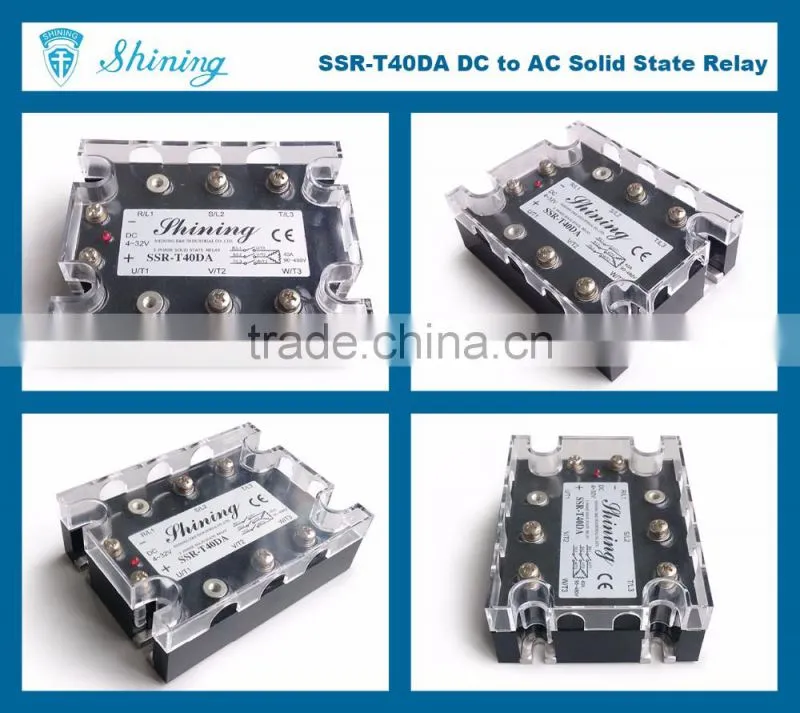

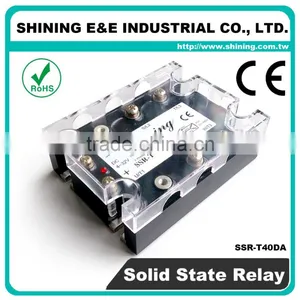

| Product Photos |
| Product Features |
• Item Number: SSR-T40DA • Load Current: 40A • Input Voltage: 4~32 VDC • Output Voltage: 24~280 VAC • 600V Transient Capability • Low EMI/EFI & Surge by zero cross trigger control • High Isolation over than 50MΩ/500VDC • Panel Mounting • LED Input status Indicator • Integrated with removable tinger-proof cover SSR-T-CV • Fast reaction, high reliability and long life • No switching speaks, no noise, and no contact points. • Excellent for switching control of switchboard panel, heaters, printers, machines, UPS • CE Compliant • Type: DC to AC, Three Phase • Certificate: CE
SSR-TxxDA Series Solid State Relay are Panel Mounted Mounted Three Phase Solid State Relay, the basic color is black. The Load Current is 25A or 40A. The Input Voltage is 4~32VDC, and Output Voltage is 24~280VAC / 90~480VAC. About this Solid State Relay, it can be install on Heat Sink with Electrical Fans. Protective Cover (SSR-T-CV) is an optional parts for this SSR. The SSR are RoHS approved. |
| Specification Sheet | ||||
| SSR-TXXDA(-H) Product Picture | | |||
| Item No. | SSR-T25DA | SSR-T40DA | SSR-T25DA-H | SSR-T40DA-H |
| Specifications | ||||
Total Length (L) [mm] | 103 | |||
| Ref 1. L1 x W1 [mm] | 24.1 x 27.6 mm | |||
| Ref 2. L2 x W2 [mm] | 88.9 x 47.5 mm | |||
| Ref. Diameter (Ø) | 5.2 mm | |||
| Electrical Specification | ||||
| Max. Load Current | 25A | 40A | 25A | 40A |
| Control Method | Zero Cross | |||
| Input Operating Voltage | 4~32 VDC | |||
| Input Current | 60mA@ 32 VDC | |||
| Must Turn Off Voltage | 0~2.5 VDC | |||
| Output Load Voltage Range | 24~280 VAC | 24~280 VAC | 90~480 VAC | 90~480 VAC |
| Max. One Circle Peak Surge | 250 A | 400 A | 250 A | 400 A |
| Min. Blocking Voltage | 600 V | |||
| Turn On & Turn Off Time | <1/2 AC circle | |||
| Isolate Impedance | 50 Mega Ohm / 500 VDC | |||
| Max. On-State Voltage Drop | 1.6 V / 25oC | |||
Materials | ||||
| Body Materials | PBT | |||
| Color | White | |||
Accessories & Parts | ||||
| Protective Cover | SSR-T-CV (Optional) | |||
| Heat Sink Heat Sink | HS-80XXX series (HS-80050, HS-80100, HS-80150, HS-80200) | |||
| Fan | FAC-80, FDC-80, FDC-50 fans | |||
| Approval & Certificate | CE | |||
| Packaging |
| 30pcs/1 cartom. N.W. :13.3kgs |
