Home > Products > UL797 ANSI C80.3 EMT Conduit > ul listed emt conduit with 2"

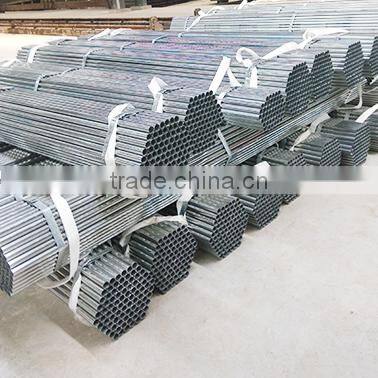

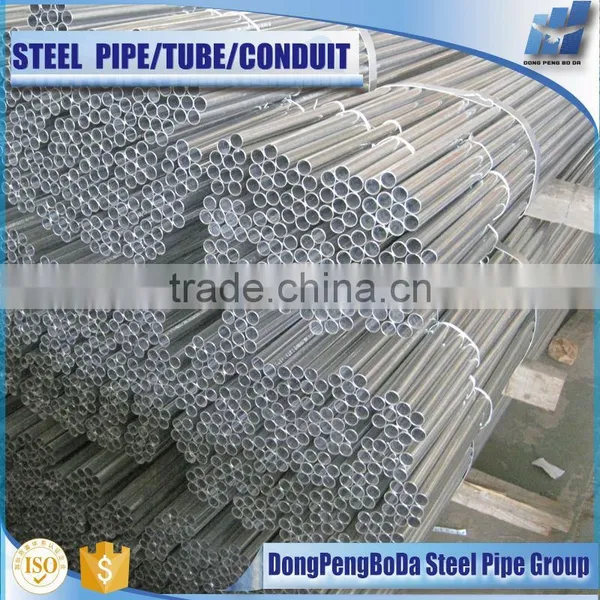

ul listed emt conduit with 2"
- 210000 Piece / Pieces per Month
- XINGANG/TIANJIN
- T/T L/C D/P D/A Credit Card
Product Details
Thickness: | 0.85, 2.11 | Section Shape: | Round | ||
Outer Diameter: | 17.93 - 114.3 mm | Place of Origin: | Tianjin, China | Secondary Or Not: | Non-secondary |
Application: | Other, electrical application | Technique: | ERW | Certification: | UL |
Surface Treatment: | Galvanized | Special Pipe: | EMT Pipe | Alloy Or Not: | Non-alloy |
Product Description
ul listed emt conduit with 2"
Product Name: | ul listed emt conduit with 2" |
Material Grade | Q195,Q235 |
Surface Finished | Pre galvanized or hot dipped galvanized |
Standard | UL797 ANSI C80.3 |
Length | 3.05M or customized length |
STANDARD EMT CONDUIT | ||||||
Standard | Nominal Size | Outside Diameter | Wall Thickness | Length | ||
UL 797 ANSI C 80.3 | inch | inch | mm | mm | feet | mm |
1/2" | 0.706 | 17.93 | 1.07 | 10 | 3050 | |
3/4" | 0.922 | 23.42 | 1.24 | 10 | 3050 | |
1" | 1.163 | 29.54 | 1.45 | 10 | 3050 | |
1-1/4" | 1.510 | 38.35 | 1.65 | 10 | 3050 | |
1-1/2" | 1.740 | 44.20 | 1.65 | 10 | 3050 | |
2" | 2.197 | 55.80 | 1.65 | 10 | 3050 | |
2-1/2" | 2.875 | 73.03 | 1.83 | 10 | 3050 | |
3" | 3.500 | 88.90 | 1.83 | 10 | 3050 | |
3-1/2" | 4.000 | 101.60 | 2.11 | 10 | 3050 | |
4" | 4.500 | 114.30 | 2.11 | 10 | 3050 | |
| ||||||
ECONOMIC EMT CONDUIT | ||||||
Standard | Nominal Size | Outside Diameter | Thinner wall Thickness | Length | ||
UL 797 ANSI C 80.3 | inch | inch | mm | mm | feet | mm |
1/2" | 0.706 | 17.93 | 0.85 | 10 | 3050 | |
3/4" | 0.922 | 23.42 | 1.00 | 10 | 3050 | |
1" | 1.163 | 29.54 | 1.10 | 10 | 3050 | |
1-1/4" | 1.510 | 38.35 | 1.30 | 10 | 3050 | |
1-1/2" | 1.740 | 44.20 | 1.30 | 10 | 3050 | |
2" | 2.197 | 55.80 | 1.40 | 10 | 3050 | |
| ||||||
Applicable Tolerances: | ||||||
Length: 10Ft (3.05m) ± ¼” (±6.35mm). | ||||||
Outside Diameter: ½”-2” ±0.005” (±0.13mm); 2½” ±0.010” (±0.25mm); 3” ±0.015” (±0.38mm); 3½”-4” ±0.020” (±0.51mm) |
Our Competitive Advantage:
1,Safe Product.
Our conduit is safe, easy to install, with wide production range, and has shielding performance, anti-jamming performance, fire prevention and many other good performance. It is the preferred wire pulling material of modern building.
2,Good Raw Material.
Our conduit is processed by high-quality hot dipped galvanized coil, with zinc layer thickness more than 120G / M², which extends the life of the conduit. Zinc coating is well-distributed, good finished with smooth surface, without black spots and bubbles, and has strong corrosion resistance. It is suitable for wires protect installation of lighting and machinery equipment in wet, corrosive harsh environment. Higher-quality products can be customized according to customer’s requirements.
3,Good Weld Line.
Weld line is smooth, and the height of inner weld line does not exceed 0.3 mm, which keep the conduit suitable for wire pulling and no damage to the wires.
4,Clean End of the Conduit.
The end of our conduit is cut off squarely and cleaned without any burrs and sharp edges, which will not damage the wire.
5,Perfect Inspection Process.
Our company has a perfect product inspection process to ensure that products we offer you are qualified.
6,Withstand a variety of tests.
Our products have a perfect performance in the threading test, zinc layer testing, stamping tests, bending tests and other physical and chemical tests.
|
|
UL797 ANSI C80.3 electrical conduit pipe | Galvanized Steel Electrical Metallic Tubling EMT Pipe |
DongPengBoDa Steel Pipe Group is founded in 2006, and the register capital is 205 million RMB.
Group companies have a professional production of galvanized round pipe, galvanized square and rectangular pipe, hot rolled square and rectangular steel pipe, steel conduit (EMT/IMC/RSC) and other various types of steel pipes.
We have a total of 17 steel production lines, which have advanced technology and equipment and are all controlled by computer.
Our product quality has reliable guarantee and can be exported to North America, South America, Europe, Middle East, Southeast Asia, Australia and many other countries and regions.
1. Q: Are you a factory or a trading company?
A: We are factory, but with our own international sales department. We can export directly.
2. Q: Can you provide samples?
A: Yes, if the sample is available in stock.
3. Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
4. Q: What is the delivery time?
A: It is based on the order, normally 15 - 20 days after receiving the deposit or L/C at sight.
5. Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
6. Q: What are your payment terms?
A: 100% irrevocable L/C at sight. Or T/T, 30% advance, and balance against the copy of B/L within 3-5 days.
7.Q: What is your MOQ?
A: 10 tons for common size, or mix sizes for a 20 GP container.
