165W polycrystalline silicon 15.6% efficiency solar module/solar panel with MC4 connector
- 3000000 Watt / Watts per Month
- shanghai
- T/T Credit Card PayPal
- 175Wp solar panel Promotion whole set solar power application charge controller + solar inverter + solar battery
- 185Wp Solar panel 6*8pcs series solar cell array solar energy system
- Solar products distributor demand China manufacturer supply 75W 12V solar panel
- 80W portable solar panel and normal solar plate supplier China manufacturer
- 0.7usd per watt price solar panel 85W Mono silicon & Poly silicon Solar cells module
- Common usage 90W Monocrystalline solar panel manufacture TOP quality solar cell
Product Details
Place of Origin: | Shanghai, China | Brand Name: | 165W polycrystalline silicon solar module | Model Number: | YC-W |
Material: | Polycrystalline Silicon | Size: | 1335*990*35mm | Number of Cells: | 48pcs |
Max. Power: | 100watt |
Product Description

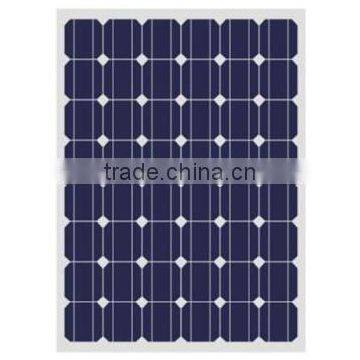

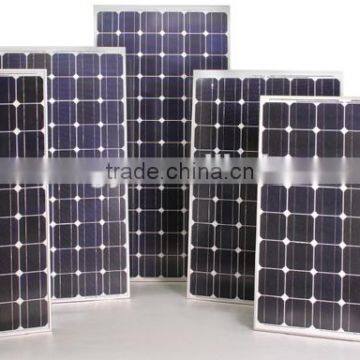

Polycrystalline Solar Module
10-year repair and workmanship warranty
12-year warranty at 90% power output
25-year warranty at 80% power output
Typical Electrical Characteristics
Models | XH165P(48) | XH175P(48) | XH185P(48) | XH195P(48) |
Max. Power (Pmax) | 165Wp | 175Wp | 185Wp | 195Wp |
Optimum Operating Voltage (Vm) (Vm) | 23.3V | 23.5V | 23.7V | 23.9V |
Optimum Operating Current (Im) | 7.09A | 7.45A | 7.81A | 8.04A |
Open-circuit Voltage (Voc) | 28.8V | 28.9V | 29.1V | 29.2V |
Short-circuit Current (Isc) | 7.95A | 8.29A | 8.61A | 8.79A |
Cells efficiency | 14.5% | 15.2% | 16% | 16.8% |
Solar Cell | Poly-crystalline 156×156mm |
Power Tolerance (Pmax) | 0 ~ +3% |
Numbers of cells | 48pcs of cells in series |
Module Dimension | 1335×990×35mm |
Weight | 15.80Kg |
Max. System Voltage | 1000V DC |
Max. Series Fuse Rating | 12A |
Temperature cycling range | -40℃ ~ +85℃ |
NOTC | 47℃ |
Temperature coefficients of Isc | (+0.06%/℃) |
Temperature coefficients of Voc | (-0.35%/℃) |
Temperature coefficients of Pmax | (-0.4%/℃) |
Load Capacity | 320pcs/ 20'GP |
670pcs/ 40'HQ |
Solar panel, charge controller, inverter, rechargeable battery, LED light
Solar water pump system
Off grid solar generator system
Grid tie solar generator system

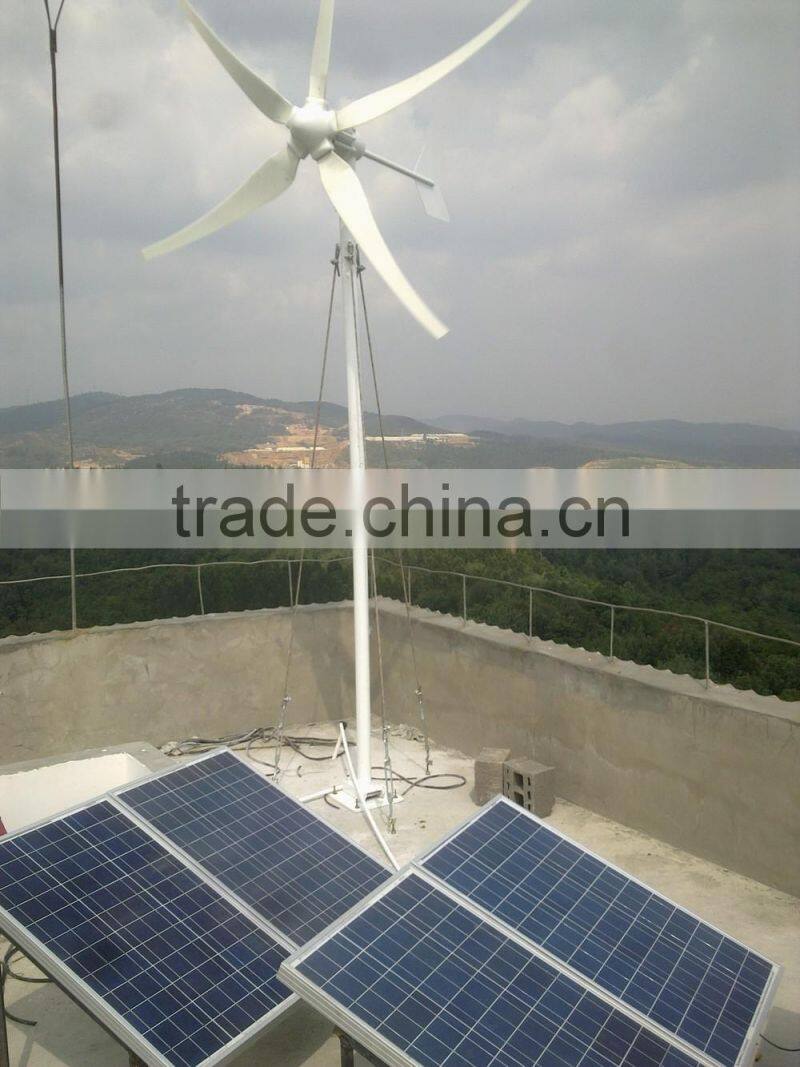

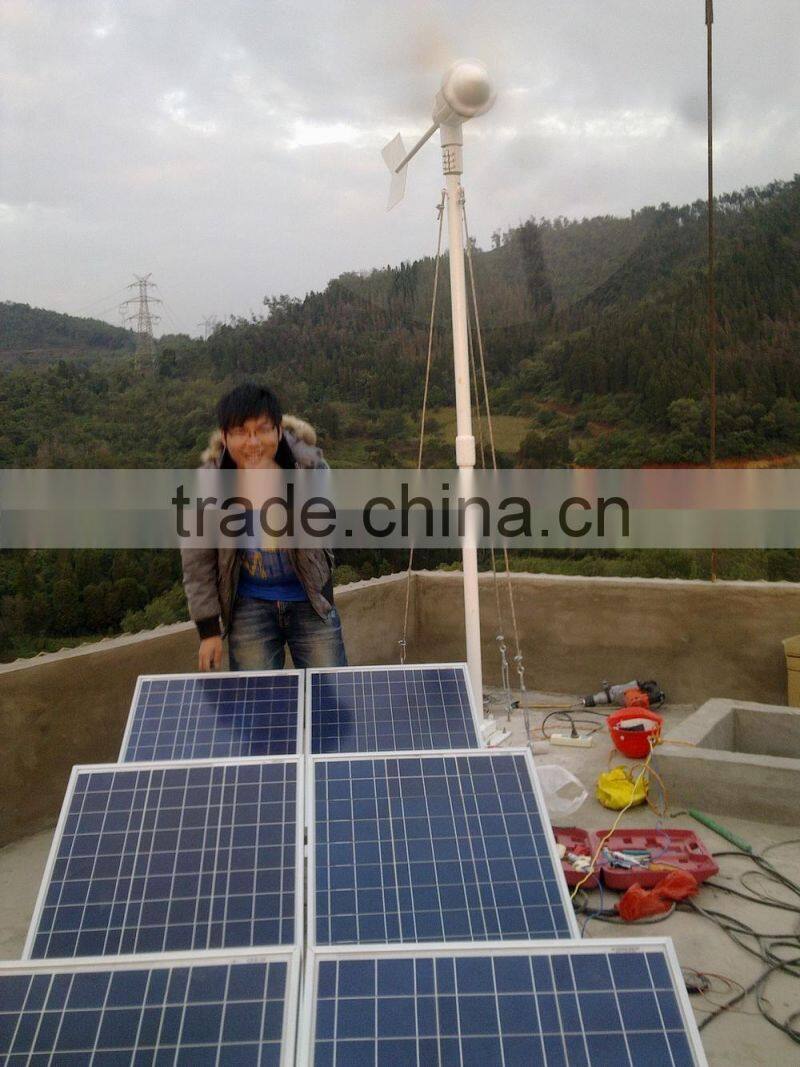

Wind & solar hybrid generator system
Customized solar energy system application according to your demand
Yunnan Yaochuang Energy Development Co., Ltd. locates in Kunming, Yunnan, China. It is a subsidiary of Shanghai XIHE Solar Co., Ltd, a trade & Industry integrated production-oriented enterprise.
YC Solar specializes in solar system research & developing, producing & marketing. We produce solar panels ranging from 5w to 310w mono & poly crystalline solar modules, and keep growing production ability from 200MW/Y at present. Customized solar panels can be produced according to clients’ requirement. TUV & IEC & EC & ISO certificated, high quality promise. YC solar provide 25 years solar panels quality guarantee.
Solar generator system, solar water pump system, solar street lamp system, solar & wind hybrid system we supplied are welcomed throughout America, Australia, Europe, Africa, Asia.
Shanghai is one of largest port in China, it ensures our products can be sent out to over world timely & safe. Yunnan is near by 9 states in Southeast Asia, unique geographical advantages make international trade more convenient. Sincerely hope we can be your long-term cooperator, and both of us get more flourishing future.
