Home > Products > High Pressure Water pump > 3 inch high discharge max pressure 125 psi engine driven high pressure water pum
3 inch high discharge max pressure 125 psi engine driven high pressure water pum
USD $66 - $70
/ Set
10 Sets(Min.Order)
- 1500 Set / Sets per Month
- Shanghai or Chongqing Port
- T/T
You May Like
-
High lift high pressure aluminum body water fire pump
-
High lift high pressure water pump inline water booster pump
-
Juanyong brand 3 inch high lift high pressure water pump
-
70m high lift diesel engine driven high pressure water pump
-
High lift diesel engine powered centrifugal syringe pump
-
High lift high pressure aluminum body water spray pump
Product Details
| Place of Origin | Chongqing, China | Brand Name | Juanyong | |
| Model Number | HP80 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | High Pressure | |
| Application | Other, Irrigation or fire |
Product Description
Product Description
Introduction of 3 inch high pressure water pump
Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.
Specifications of 3 inch high pressure water pump
| Item | HP80 |
| Inlet Size(mm) | 80 |
| Outlet Size(mm) | 65 |
| Speed(rpm) | 3600 |
Displacement Q.max(m3 /h) | 55 |
Lift H.max(m) | 70 |
| Suction(m) | 7 |
| Engine Model | 190F |
Engine Crankshaft Data Request

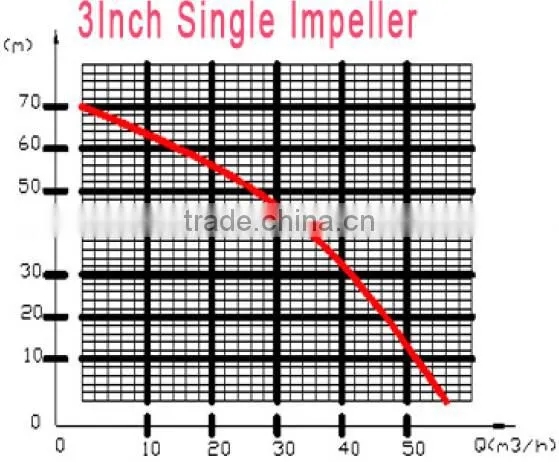

Performance Curve
Water Pump Part List
| No. | Name | Number |
| 1 | water pump cover | 1 |
| 2 | Aluminum flat washer Φ8×φ16×1.5 | 4 |
| 3 | Bolt M8×60 GB5787 | 4 |
| 4 | Pump sealing ring | 1 |
| 6 | mechanical seal/ceramic | 1 |
| 7 | Impeller | 1 |
| 8 | Eddy shell | 1 |
| 9 | Eddy shell sealing ring | 1 |
| 10 | water pump body | 1 |
| 11 | Outlet gasket | 1 |
| 12 | The water outlet joint | 1 |
| 13 | Bolt M8 | 12 |
| 14 | Rudder plug gasket | 2 |
| 15 | Threaded plug pump | 2 |
| 16 | Inlet sealing gasket | 1 |
| 17 | Inlet joint | 1 |
| 18 | Pipe joint sealing gasket | 2 |
| 19 | Pipe joint connecting nut | 2 |
| 20 | Pipe joint | 2 |
| 21 | Clamp | 3 |
| 22 | The filtering orifices | 1 |
| 23 | filter cover | 1 |

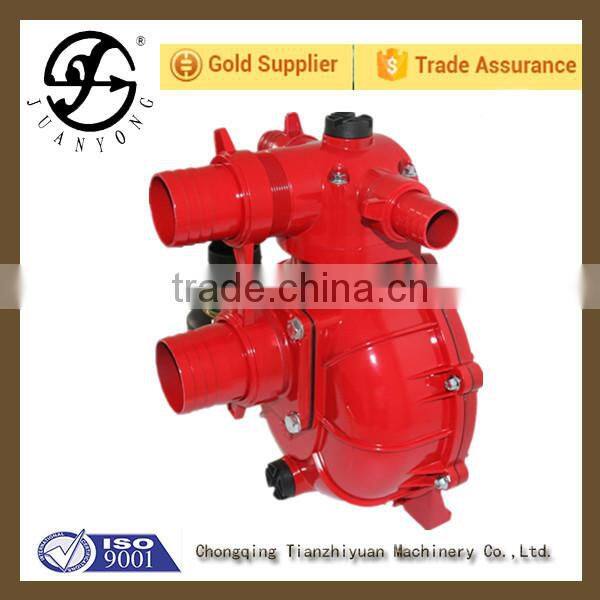

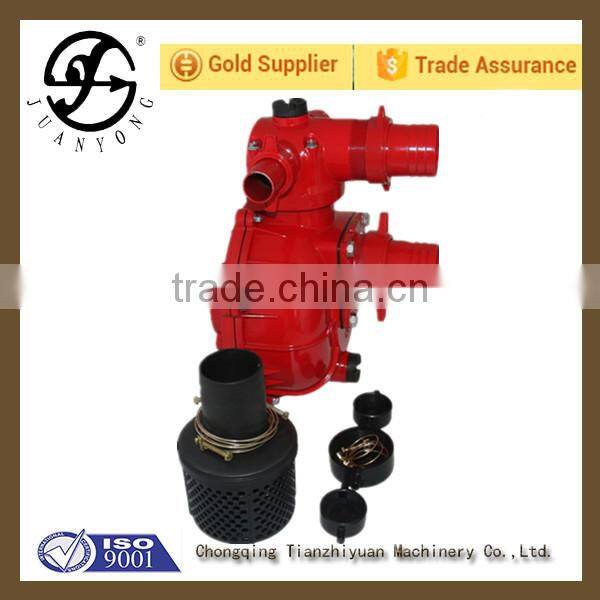

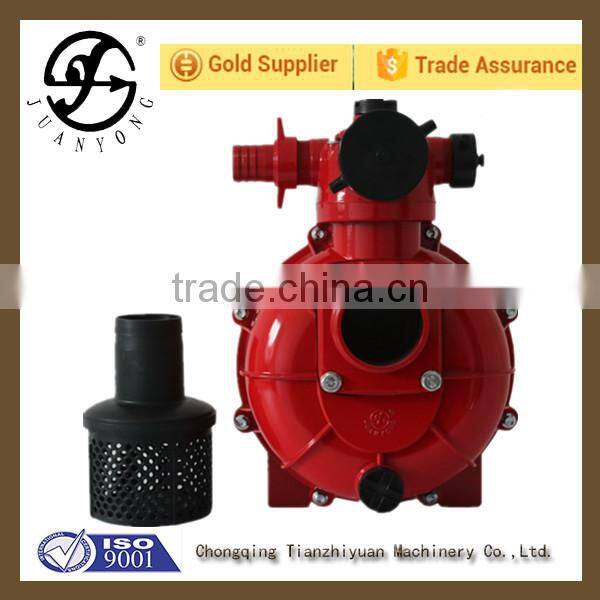

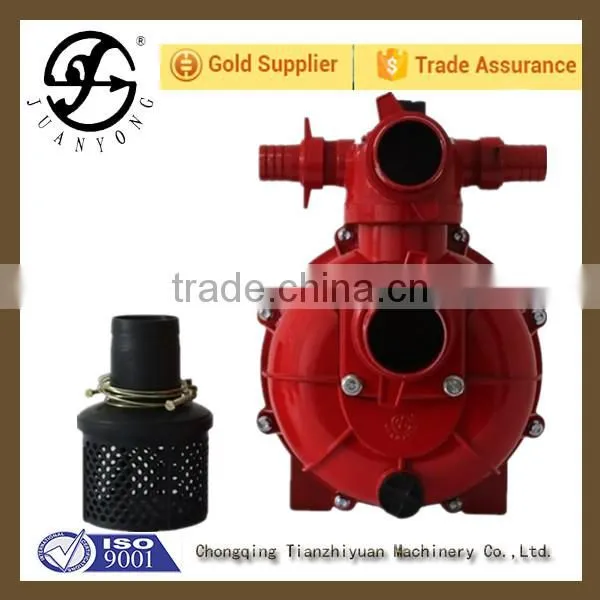

Image of 3 inch high pressure water pump
Factory Pictures
Our Service
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
How to contact us
Contact Us
- Chongqing Tianzhiyuan Machinery Co., Ltd.
- Contact nameJane Zhang Chat Now
- Phone86-023-86083286
- AddressFuzibao Community, Tianma Village, Xiema Town
