Home > Products > Sewage Water Pump > 3 inch sewage pump with electric water pumps
3 inch sewage pump with electric water pumps
USD $58 - $68
/ Set
5 Sets(Min.Order)
- 1400 Set / Sets per Month
- Chongqing
You May Like
-
Industry usage sewage pumps
-
1kw-5.5kw Power and Standard Standard or Nonstandard agricultural consumptions water pump
-
Large power electric water pumping system for sewage for Slurry Pump Semi-Open Impeller
-
"juanyong" Brand 3 inch sewage water pump well pump with outdoor fountain
-
2015 JUANYONG Brand condensate pump
-
In china 3 inch sewage pump with machines used sewage pumps purchase
Product Details
| Place of Origin: | Chongqing, China | Brand Name: | JUANYOMNG | Model Number: | WB80 |
| Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
| Power: | Hydraulic | Standard or Nonstandard: | Standard | Fuel: | Diesel |
| Pressure: | Low Pressure | Application: | Sewage |
Product Description
Product Description
ITEM | WB80 |
Outlet Size(mm) | 80 |
Inlet Size(mm) | 80 |
Speed(rpm) | 3600 |

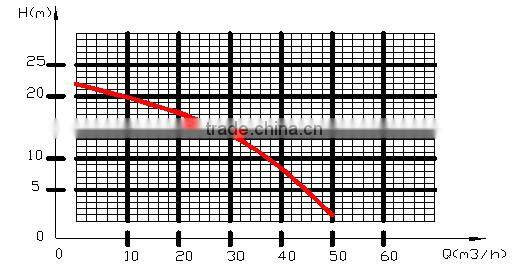

Displacement Q.max(m3/h) | 50 |
Lift H.max(m) | 20 |
Suction(m) | 7 |
Engine Model | 168F |
Accesseries Parts
| Serial number | Name | Number |
| 1 | Water pump cover | 1 |
| 2 | Aluminum flat washer | 4 |
| 3 | Bolt | 4 |
| 4 | Mechanical seal/ceramic | 1 |
| 5 | Impeller | 1 |
| 6 | Eddy shell sealing ring | 1 |
| 7 | Eddy shell | 1 |
| 8 | Inlet sealing gasket | 1 |
| 9 | pump sealing ring | 1 |
| 10 | Water pump body | 1 |
| 11 | Rubber plug gasket | 2 |
| 12 | Threaded plug pump | 2 |
| 13 | Bolt | 1 |
| 14 | Pipe joint sealing gasket | 2 |
| 15 | Pipe joint connecting nut | 2 |
| 16 | Pipe joint | 2 |
| 17 | Clamp | 3 |
| 18 | The filtering orifices | 1 |
| 19 | Filter cover | 1 |
Accesseries Installation Diagram
