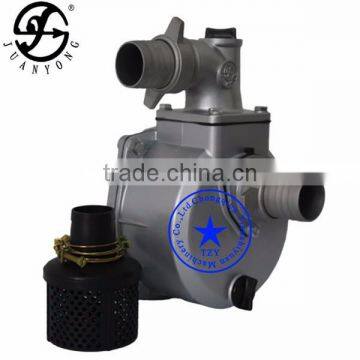

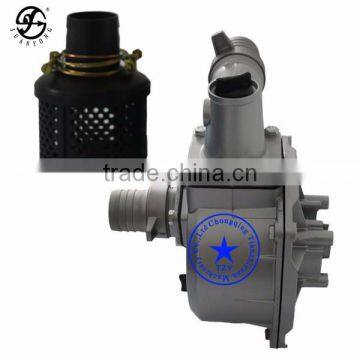

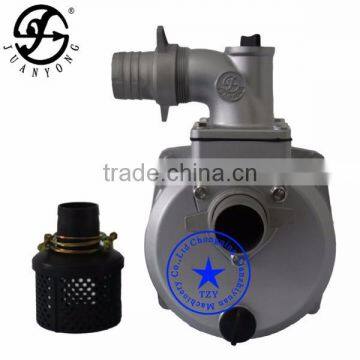

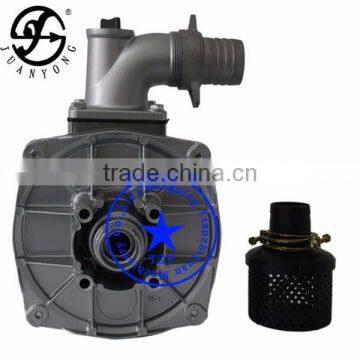

JUANYONG 2"self priming water pump with aluminum water pump
USD $16 - $26
/ Set
5 Sets(Min.Order)
- 1400 Set / Sets per Month
- Chongqing
You May Like
-
JUANYONG 4"self priming water pump for centrifugal pumps Water Pumps
-
JUANYONG1.5"self priming water pump with agriculture water pump Water Pumps
-
JUANYONG 1"self priming water pump with agricultural irrigation pumps
-
JUANYONG 2"drag water pump of Low Pressure Pressure and Hydraulic Power 6hp Water Pump
-
JUANYONG 2"high pressure pump for Decor Outdoor Garden Water Fountain Bowl Electric Water Pump
-
JUANYONG2&3&4&6 Gasoline Water pump for desert control 1.5-60t/h
Product Details
| Place of Origin | Chongqing, China | Brand Name | JUANYONG | |
| Model Number | WP50 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | Low Pressure | |
| Application | Other, irrigation |
Product Description
Product Description

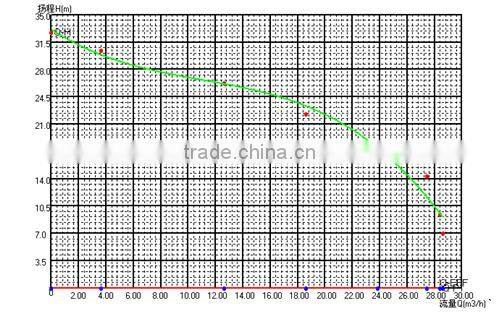

Performance curve

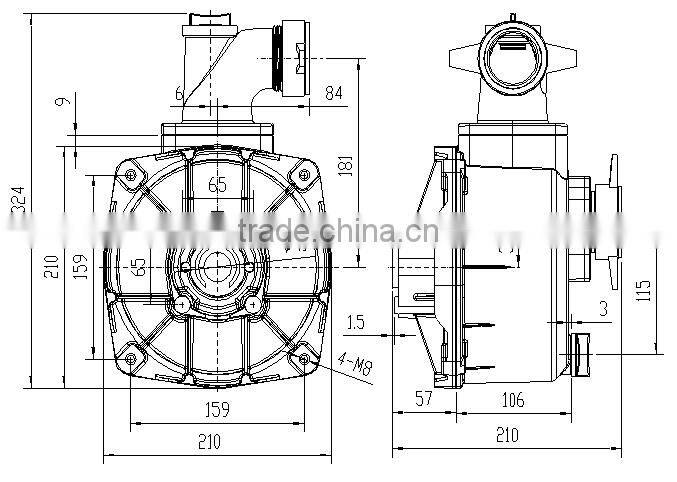

Parameter
ITEM | WP50 |
Outlet Size(mm) | 50 |
Inlet Size(mm) | 50 |
Speed(rpm) | 3800 |
Displacement Q.max(m3/h) | 28 |
Lift H.max(m) | 30 |
Suction(m) | 7 |
Engine Model | 168F |

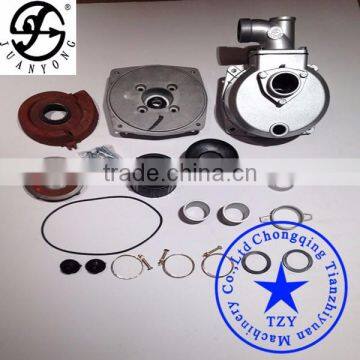

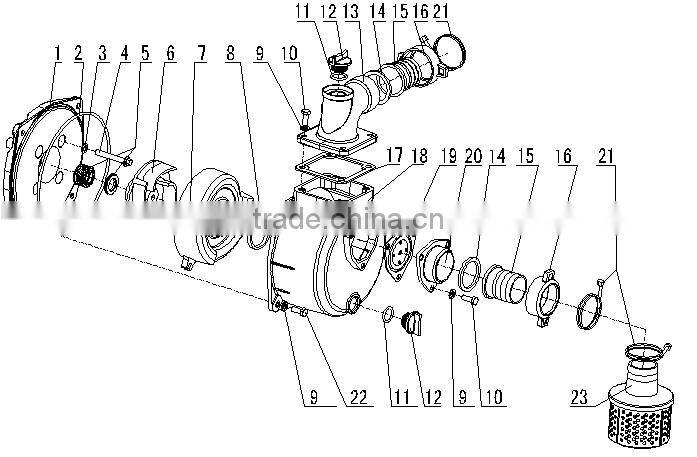

Serial number | Name | Number
|
1 | Water pump cover | 1 |
2 | Pump sealing ring | 1 |
3 | Aluminum flat washer φ8×1.5 | 4 |
4 | Bolt M8×60 GB5787 | 4 |
5 | Mechanical seal / ceramic | 1 |
6 | Impeller | 1 |
7 | Eddy shell | 1 |
8 | Eddy shell sealing ring | 1 |
9 | washer φ8×φ16×1.5 | 11 |
10 | Bolt M8×20 | 7 |
11 | O ring | 2 |
12 | Whorl Plug | 2 |
13 | The water outlet joint | 1 |
14 | Pipe joint sealing gasket | 2 |
15 | Pipe joint | 2 |
16 | Pipe joint connecting nut | 2 |
17 | Outlet gasket | 1 |
18 | Water pump body | 1 |
19 | Check valve | 1 |
20 | Inlet joint | 1 |
21 | Clamp | 3 |
22 | Bolt M8×25 GB5783 | 4 |
23 | Filter cover | 1 |
