Hot Sale Farm Irrigation Water Pump Machine

Name: Hot Sale Farm Irrigation Water Pump Machine
Brand: JUANYONG
Availability: InStock

FOB Price

USD $49 - $49 / Set

5 Sets(Min.Order)

Supply Ability 1500 Set / Sets per Month
Port Chongqing
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Chongqing, China	Brand Name:	JUANYONG	Model Number:	WP100
Theory:	Centrifugal Pump	Structure:	Single-stage Pump	Usage:	Water
Power:	Other, Hydraulic, 15hp	Standard or Nonstandard:	Standard	Fuel:	Gasoline
Pressure:	Low Pressure	Application:	Other, garden

Product Description

Hot Sale Farm Irrigation Water Pump Machine

Performance curve

Parameter

ITEM	WP100
Outlet Size(mm)	100
Inlet Size(mm)	100
Speed(rpm)	3600
Displacement Q.max(m3/h)	90
Lift H.max(m)	25
Suction(m)	7
Engine Model	190F

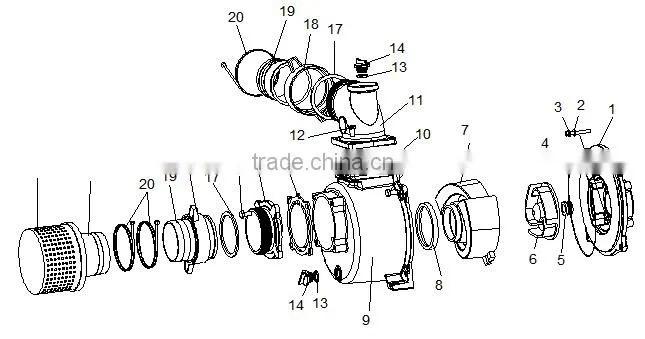

Serial number	Name	Number
1	Water pump cover	1
2	Aluminum flat washer φ8×φ16×1.5	5
3	Bolt M8×45 GB5787	4
4	Pump sealing ring	1
5	Mechanical seal / ceramic	1
6	Impeller	1
7	Eddy shell	1
8	Eddy shell sealing ring	1
9	Water pump body	1
10	Outlet gasket	1
11	The water outlet joint	1
12	Bolt M10×30	12
13	Rubber plug gasket	2
14	Threaded plug pump	2
15	Inlet sealing gasket	1
16	Inlet joint	1
17	Pipe joint sealing gasket	2
18	Pipe joint connecting nut	2
19	Pipe joint	2
20	Clamp	3
21	The filtering orifices	1
22	Filter cover	1

Water pump feactures

*Powered by a strong engine.The strong and lightweight die-cast aluminum pump delivers

high volume of water.

*The highly effective mechanical seal with special carbon ceramics provide extra durability.

*The entire unit is protected by a sturdy rollover pie frame.

*Guaranteed suction head of 7meters.

Customers to visit our factory

Applications

*Sprinkling for field irrigation.

*Irrigation of paddy fields.

*Orchard cultivation.

*Pumping water from wells.

*Feeding or draining water to/from ponds or troughs.

*Feeding or draining water on fish farms.

*Washing cattle,barns or agricultural tools.

*Feeding water into water reservoirs.

Delivery &Payment

Delivery time:10-15days after initial payment.

Sampe by express, like UPS,TNT,FEDEX,EMS by air.

For large goods will delivery by sea.

Payment :T/T30% payment in advance,70% pay it when we prepared all goods after.

West Uion/PayPal and the special issues can be discussed.
