Alternative Black Anti-static Material Durostone for Soldering Pallet With SGS Certificate

Shenzhen Catos Technology Co., Limited

Alternative Black Anti-static Material Durostone for Soldering Pallet With SGS Certificate thumbnail-1

Alternative Black Anti-static Material Durostone for Soldering Pallet With SGS Certificate thumbnail-2

Alternative Black Anti-static Material Durostone for Soldering Pallet With SGS Certificate thumbnail-3

Alternative Black Anti-static Material Durostone for Soldering Pallet With SGS Certificate thumbnail-4

Alternative Black Anti-static Material Durostone for Soldering Pallet With SGS Certificate thumbnail-5

Alternative Black Anti-static Material Durostone for Soldering Pallet With SGS Certificate photo-1

Alternative Black Anti-static Material Durostone for Soldering Pallet With SGS Certificate photo-2

Alternative Black Anti-static Material Durostone for Soldering Pallet With SGS Certificate photo-3

Alternative Black Anti-static Material Durostone for Soldering Pallet With SGS Certificate photo-4

Alternative Black Anti-static Material Durostone for Soldering Pallet With SGS Certificate photo-5

Negotiable MOQ: 0 Kilogram (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Model Number:

CATOS 2200

Material:

Other, Fiberglass and epoxy resin mainly

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN PORT

Delivery Detail:

2 days

Product Details
Company Profile
Contact Us

Place of Origin China

Model Number CATOS 2200

Material Other, Fiberglass and epoxy resin mainly

Type Insulation Sheet

Application High Temperature

Specifications

wave solder pallet material
1.operating temperature up to 385 degree
2. Less distortion
3. Superior dimensional stability

About Wave solder pallet material with resistant high temperature and competitive price in 2014

Trade names:	Alternative Durostone, Carbon Fiber Glass Reinforced Sheet
Available Type :	Sheet
Color:	Black, grey, ect.
Sheets Thickness:	3,4,5,8,10,12mm;other can be customized
Size:	1020mm x 1220mm;1220mmx2440mm

Weight Data
Size/sheet(mm)	Weight/sheet(kg)
1220 x 1020 x 3	6.9
1220 x 1020 x 4	9.2
1220 x 1020 x 5	11.5
1220 x 1020 x 6	13.8
1220 x 1020 x 8	18.4
1220 x 1020 x 10	23
1220 x 1020 x 12	27.6
2440 x 1220 x 3	16.5
2440 x 1220 x 4	22
2440 x 1220 x 5	27.5
2440 x 1220 x 6	33
2440 x 1220 x 8	44
2440 x 1220 x 10	55
2440 x 1220 x 12	66
Weight=length(m) x width(m) x thickness(mm) x Density(1.85g/cm3) ( eg. Weight of a sheet 1220mm x 1020mm x 3mm=1.22x1.02x3x1.85=6.9kg)

China alternative Durostone sheet is a heavy-duty glass fiber reinforced plastic which offers extreme strength and excellent electrical, thermal and chemical properties. It can keep it’s mechanical strength, smoothness and original color when continuously used under the temperature of 260°C (max. working temperature below 385°C 10~20sec).

I.Advantages:

High Temperatur alternative Durostone Materials recognized worldwide and appreciated for their high temperature resistance, excellent machinability, chemical resistance, static dissipative properties and are sensor detectable..

II.Key Features:

Normal working temperature at 260°C, operating temperature up to 385 °C
Less distortion, low thermal conductivity
Superior dimensional stability, Long life
High temperature resistance
Resistance to chemical corrosion
High mechanical strength
Good machinability (low density)

III.Applications:

Wave solder pallet and SMT carriers
Electronic components automatic cartridge
Solder paste screen printing
SMT Surface Mount technology
IR reflow curin
Online testing jig

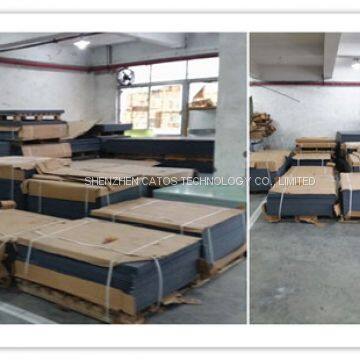

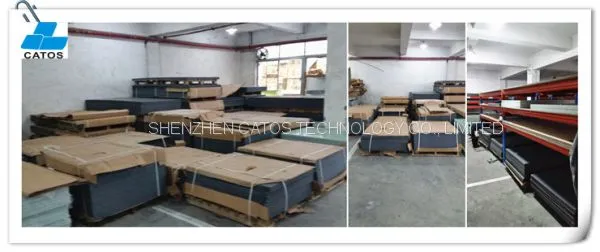

IV.Stock Capability

V. Packing & Delivery

1. PE protective film package;
2. Paper carton and water-proof cloth
3. Pallet and Iron straps position.
4. Weight of a pallet within 300KG .
5.Also we can depends on the requirment of customers

VI.Fabricating Process of High Temperature Resistance Durostone Sheet

Samples is available to you for free,your inquiry is welcome!

Meanwhile,Processing Guideline and Material Specification is available to you!
