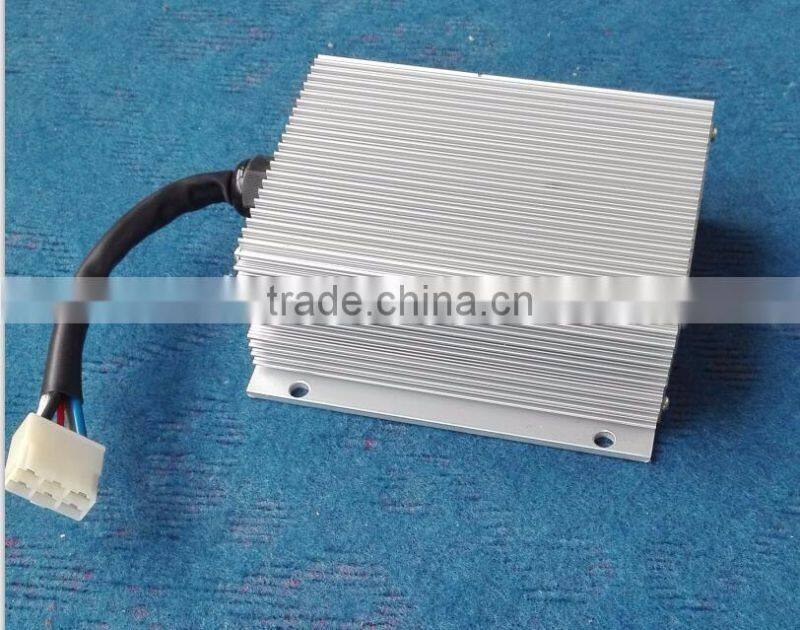

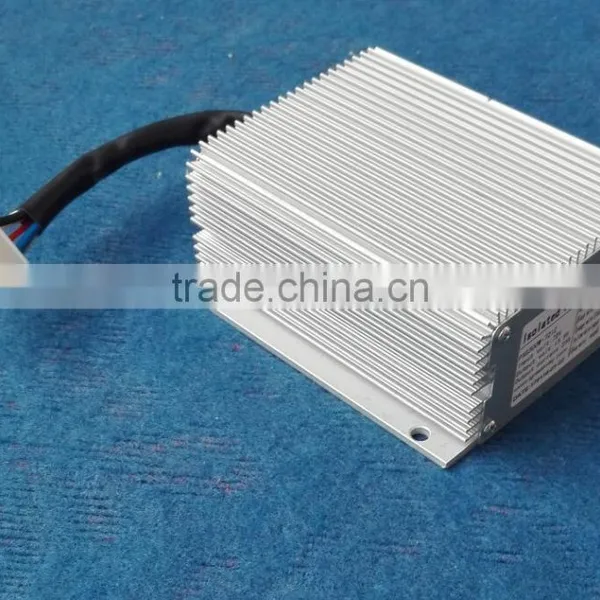

300w 72v to 12v,25A isolated dc-dc converter

 PXG series isolated DC/DC converter applies advanced technology and is configured specifically for electric vehicles. It is very suitable to supply power to the lamp and audio system as it is very stable and clean. The advantages of high efficiency, stability and compact size, are achieved by adopting the advanced high frequency technology

Technical parameters

       1: Input voltage range: 48V 60v 72V 84v 96v 108v 120v 144v

            Output voltage: 12.8V / 13.5v / 13.8V  (The default value is 13.5V)

            Output Current:  20A /25A

      Output power : 300W

      2: load factor: 82%

      3: Working environment temperature: -20- +50

      4: Insulation resistance: ≥100 megohms

      5: Test leakage current: < 0.75mA

      6: input-output  type:  full Isolated

      7: primary, secondary, between the chassis dielectric strength: ≥1500V AC

      8: Functions: over-current limit, the output short circuit, output reverse, overheating protection

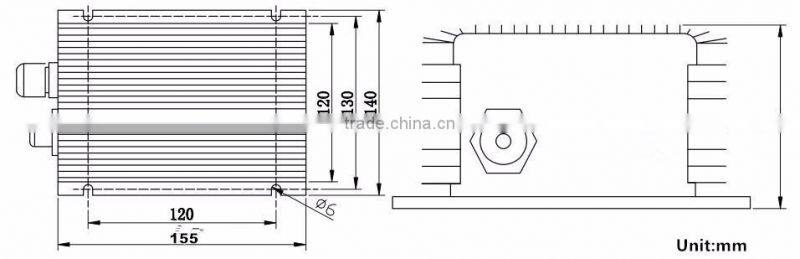

      9: Size: 160X140X63 (length has also 155mm,178mm,198 mm)

     10: Weight: 1.40Kg

 .Type Table

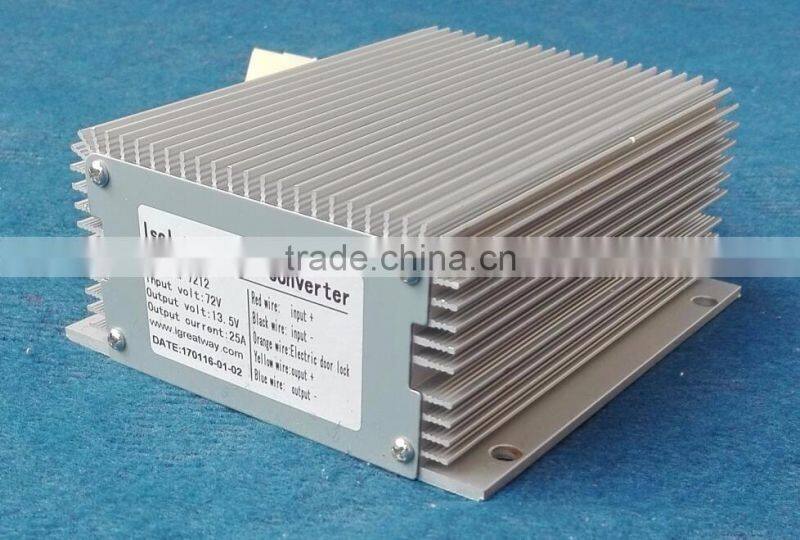

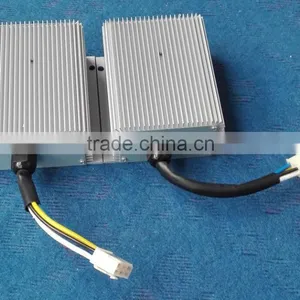

     Wiring instruction

     Red  wrie (with wax tube): input+                  Black wire:  output -

     Orange wire: electric locks

     Yellow wire: output+         Blue wire: output-

    The converter  are  with built-in insurance
