Home > Products > Sprial Wound Gasket > 3in 1500Lb SS316 Graphite Filled Spiral Wound Gasket

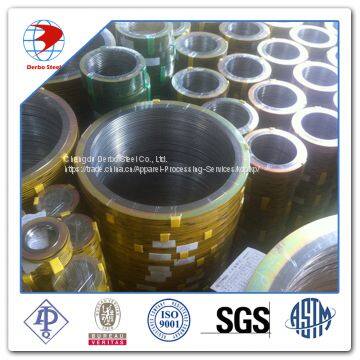

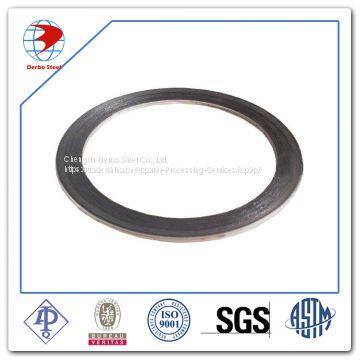

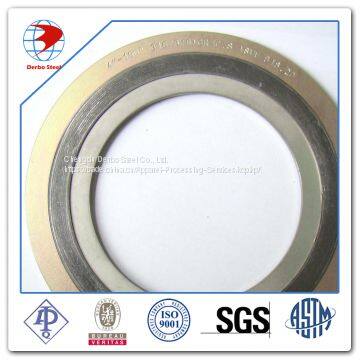

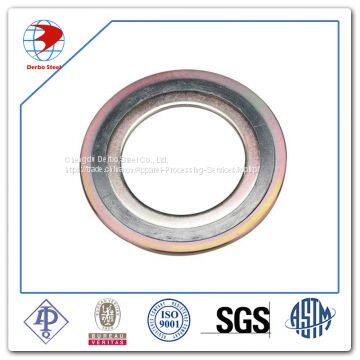

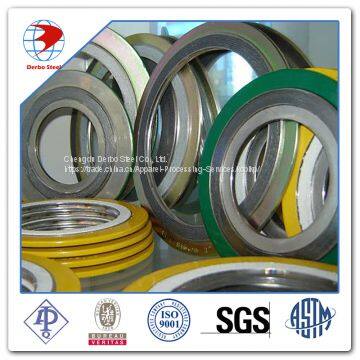

3in 1500Lb SS316 Graphite Filled Spiral Wound Gasket
- 0 per Month
Product Description
3in 1500Lb SS316 Graphite Filled Spiral Wound Gasket
3in 1500Lb SS316 Graphite Filled Spiral Wound Gasket applied to pipe connections with premium stainless steel. We have succeed to cooperated with SHELL,LUKOIL and other famous oil &gas companies with small order,best quality,reasonable price.
1.Technical Parameters
| 1.Name:Spiral wound gaskets | |||
| 2. Type | |||
| Type | Thickness(mm) | ||
| Basic form | 3.2 | 4.5 | |
| With inner ring | 4.5 | ||
| With outer ring | 4.5 | ||
| With inner and outer ring | 4.5 | ||
| 3. Structure type: | |||
| Filler | Hoop | Inner ring | Outer ring |
| Asbestos | SUS 304 | Carbon steel | Carbon steel |
| Graphite | SUS 316 | SUS 304 | SUS 304 |
| PTFE | SUS 316L | SUS 316 | SUS 316 |
| SUS 316L | SUS 316L | ||
| Flange type | Spiral Wound Gasket form | ||
| Flat face flange(F.F) | Gasket with an outer ring | ||
| Gasket with an inner and outer ring | |||
| Raised face flange(R.F) | Gasket with an outer ring | ||
| Gasket with an inner and outer ring | |||
| Ring Joint Gasket:Apply to RTJ flange, the high temperature and high pressure seal | |||
| Section Type: | |||
| Type | Pressure Mpa | ||
| Oval | 70 | ||
| Octogonal | 70 | ||
| Rx | 70 | ||
| Bx | 150 | ||
| Material: | |||
| Material | Max,Hard | Temperature(°C) | |
| Soft Iron | 90 | 540 | |
| Low Carbon Steel | 120 | 540 | |
| 5Cr0.5Mo | 130 | 650 | |
| SS304 | 160 | 800 | |
| SS316 | 160 | 800 | |
| SS316L | 150 | 800 | |
3.Gasket Packing and Transportation
Our Advantages
1. Professional Sales Team With More Than 10 Years Experience In Steel Industry.
2. Technical Engineer From Oil Company and Third Party Inspection Company.
3. One-Stop Service for steel industry, Especially for pipeline project application.
4. Rich Cooperation Experience With SHELL,Lukoil,Samsung Etc.
5. Competitive price,Fast Delivery Time,Excellent Service.
Quality Control
Quality control is the basic but most important point for qualification of the steel pipes/tubes&fittings. We carry out in-production supervision and after-production inspection for our products. We ensure that the products are produced,tested,and inspected strictly according to standard specification under supervision of our QA engineer during production. After production inspection is carried out by worldwide famous third party inspection company like BV,SGS,Intertek Etc.
