color glazed steel roll forming machine

FOB Price

Negotiable / Bag

1 Bag(Min.Order)

Supply Ability 0 per Month

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

color glazed steel roll forming machine

1. Processing flow diagram

Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products

2. Technical parameters

Model number	color glazed steel roll forming machine
Rolled material	0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width	AS YOUR DESIGN
Feeding width	ACCORDING TO YOUR DESIGN
Forming steps	11 stations
Roller	45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft	80mm
Main motor power	4 kw
Pump power	3 kw
Sprocket chain	1 inch
Drive type	by chain
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component	1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table
Payment terms	cash,T/T,L/C.

Remark: Above parameters are standard, we can design and make some change exactly according to your requirements.

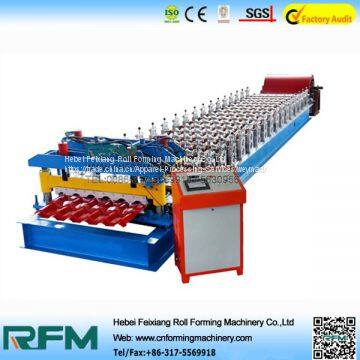

3. Profile and Real photos

4.Details of the machine:

5.After-sales service

A: Warranty: One year ,and we will provide the technical support for the whole life.
B: Training: the buyer should charge of visa, round-trip ticket, food and accommodation
overseas and USD100/person/day for salary.

C: Need one technician.
D: Training time: one week (contains the time of installation and adjustment)

6.Real Photos of Our Factory. Warmly Welcome to Come and Visit Our Company

7.Certifications for Our Company and Our Machines

8.if any needs or questions on roll forming machines, please feel free to contact me.
