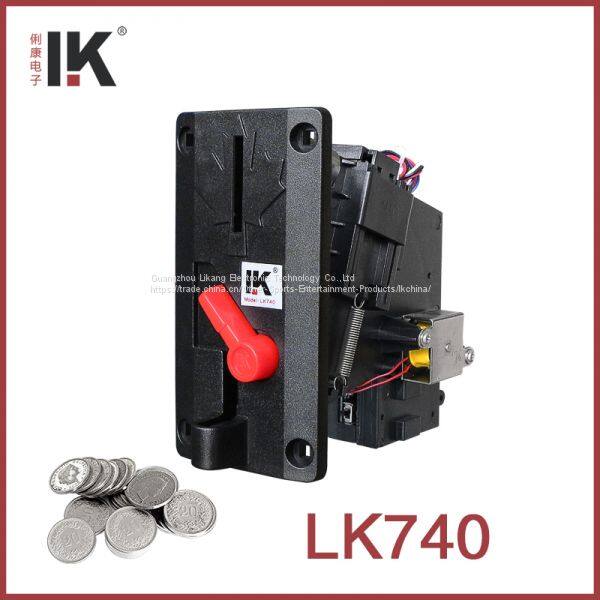

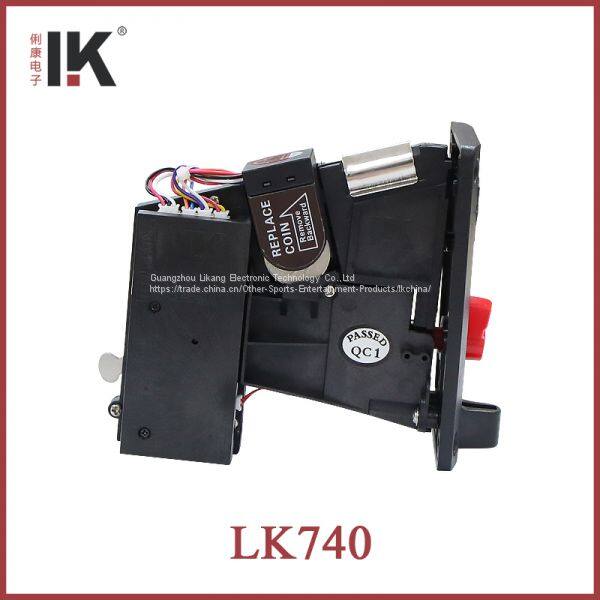

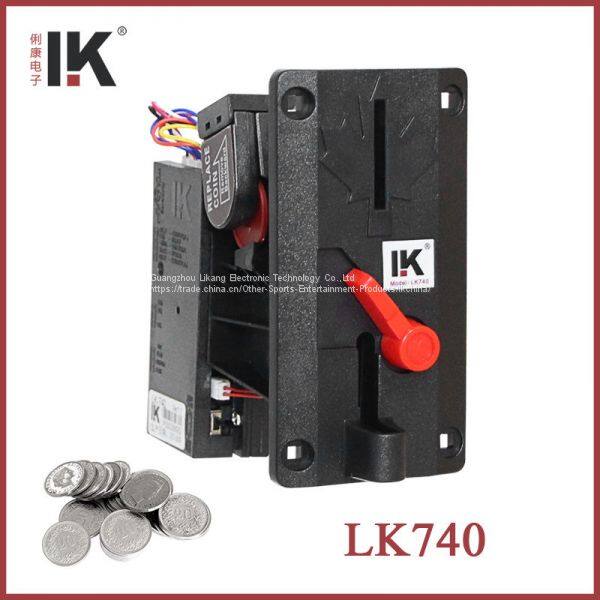

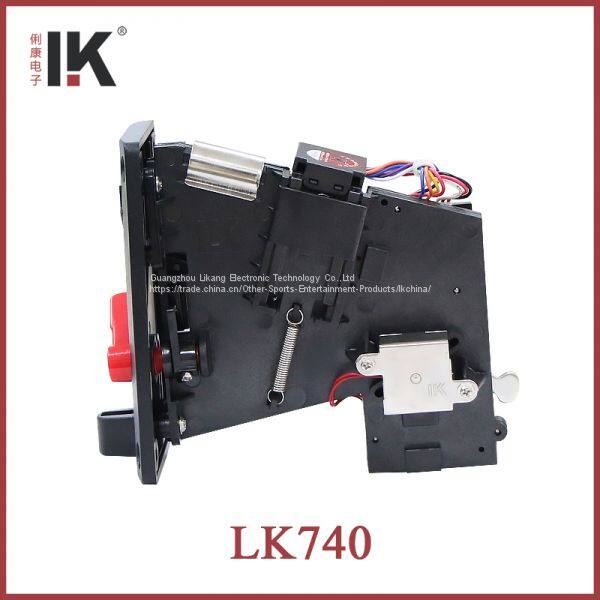

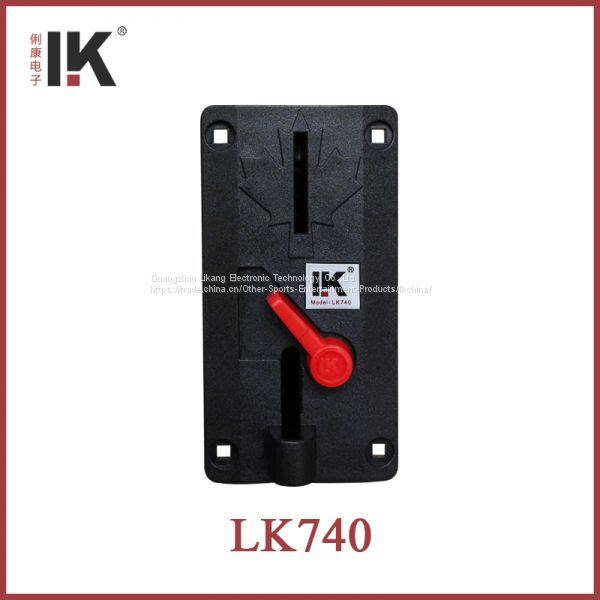

Plastic 3mm thickness coin validator

Use step

1.Take out the plastic cion from the slot,put your coin in.

2.Depend your motherboard to choice coin signal output mode,N.O/N.C(open/close),usually use N.C stall.

3.Depend on your motherboard to selector the output pluse,

20ms is the quick signal ,suit the machine which need quickly throwing coin;

40ms is the middle- quick signal,suit the normal machine;

100ms is the slow signal, suit the normal fun machine.

4.VR switch is sensitivity conthol for coin filtrating ,clockwise turn(+),it accept large tolerance coin, anticlockwise turn(-),it accepts small tolerance coin.

5.If the coin is not easy to be passed on the exactness position of SW3,please transfer the SW3 to normal position and ajust the VR to suitable position.

Funtion

1.CPU process control,accurate scoring

2,Prevent false cion

3.Counter connector available

4.Suitable all the coins diameter

5,Special precision/normal stall,coin smoother

6.Pulse signal adjustable 20/40/100ms

7,Prevent fishing,fishing alarm

8,Wire part of the whole SMT technology,quality and stability

Parameters

Pictures

Package

Package:30pcs/ctn,bubble bag inside with a inside box per piece

G.W.:12.5KGS

Carton Dimension: 46x34x39 cm

Shipping way

1,By sea

2,By air

3,By expressage,such as DHL,FEDEX,TNT,UPS and etc.

4,Your agent pick up from our warehouse or send to your agent.

Application area

Our coin slot is widely used in coin kiosk, car washing machine, TV, massage chair, cloth dryer, cyber coffee, laundromat, laundry,computer ,amusement machine , arcade machine,vending machine,etc
