New Floral Foam Machines/Cutting Machine/Mould Machine
- 100 Set / Sets per Month
- China port
- Credit Card
You May Like
-
High quality floral foam machines/floral foam new technology
-
Full Automatic Floral Foam Machinery
-
1000-1500 day floral foam machine /flower mud machine/wet floral foam production line
-
Wholesale Custom floral foam cutting machine
-
high quality floral foam making machine and technology
-
Hot Sale Floral Foam Vertical Cutting Machine on floral foam equipment
Product Details
Condition | New | Product Type | Foam Net | |
Place of Origin | Hebei, China | Brand Name | Huiya | |
Model Number | HY | Voltage | 380V/50HZ | |
Power(W) | 30KW | Dimension(L*W*H) | customized | |
Weight | 12t | Certification | CE | |
Warranty | 12 months except spare parts | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Characteristics of new technology of wet floral foam making technology:
1.Our company adopts solid para-formaldehyde synthesis technology, solving the problems of waste water discharge, environment protection, etc.
2.The automatic temperature control system combines electric heating and physical reaction, which improves the production efficiency, reduces the resin production cost. Synthetic resin equipment combined with automatic foaming machine let the stability of the foam(density, strength, water absorption, water retention, PH) come true, and let the foam open porosity rate can reach more than 95%. New technology of the production cost was reduced by 15% than old technology.
3.The whole production line includes resin synthesis equipment, floral foam auto-machine, foaming mould, vertical cutting machine and printing machine, etc.
Resin synthesis equipment of wet floral foam making technology
This equipment adopts the material:304L、Q235 :
(1) Energy saving: the production of 700 kg resin used electric 50 RMB, don't need to be heated in the process of production, It was synthesized by chemical physics, compared with other production of foam equipment greatly reduces the cost of production.
(2 ) Environmental protection: no sewage,no waste emissions;
(3) Efficient: 1000 l reactor can produce 700 kg resin, production time 4 hours
(4) the total power configuration: 22 w, actual use power: 6 kw;
Foaming Equipment of wet floral foam making technology
Description: (1) material: 304 L, Q235
(2) energy saving, high efficiency, environmental protection equipment, PLC control
(3) the ability of 15 to 20 seconds to 1 m3 after speed: 2800 revolutions per minute
(4) after installation equipment specification: 5.8 M * 2.6 M * 3.5 M
(5) the total power rating: 26.8 KW, the actual average operating power is about 1.05

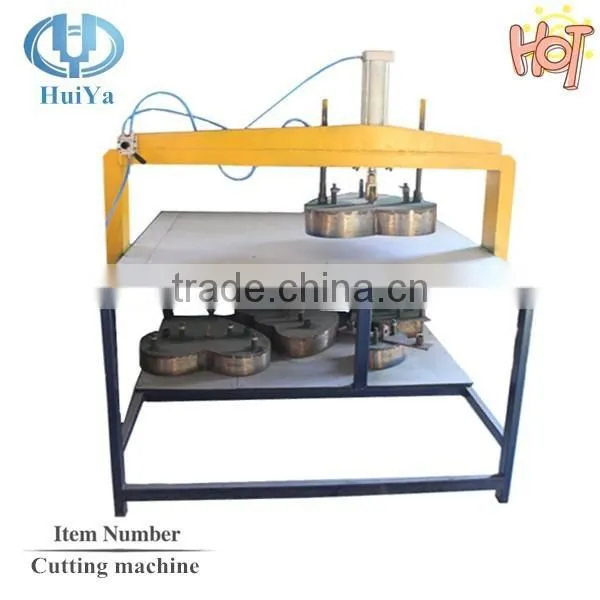

Vertical cutting machine of wet floral foam making technology
Description: (1) the peel and cut different shape of the bubble specifications;
(4) after installation equipment specification: 3.6 M * 2.8 M * 2.4 M wide
(5) the total power rating: 1.5 KW
CNC horizontal cutting machine of wet floral foam making technology
Description:This equipment is CNC automatic operation, and the vertical cutting machine the staff work together, a woman can operation, ability to work in accordance with the eight hours can cut 2000-2200-8 cm specification foam box bubble.
(1) 8 cm foam cutting specifications;
(2) after the installation equipment specification: 5.6 M * 2.8 M * 2.4 M
(3) the total rated power: 4.5 KW
Horizontal pushing printing machine of wet floral foam making technology
Description:This equipment is to start control, according to the customer need to customize different specifications in the shape of a bubble
Job scope: heart, LOVE, cross, annular, empty heart.
After installation specification: 1.6 M * 1.3 M * 1.35 M

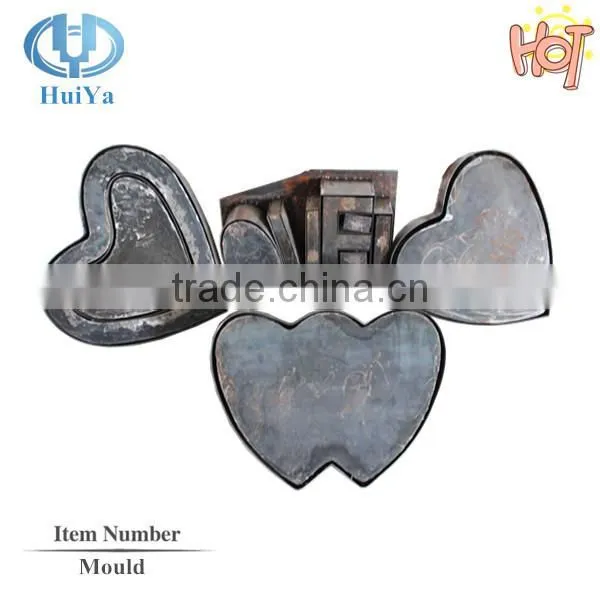

Foam Mould of wet floral foam making technology
Description: (1) the mold specifications: 1 cubic (can be customized according to customer's requirements)
(2) one mold specifications: inner diameter 1 M * 1 M* 1 M(3) automatic constant temperature setting, time control systems,
(4) three mold after installation equipment specifications: 5.8 M * 1.6 M * 1.6 M length: 13 M
(5) the total power rating: 24 kw
1.Can i visit your factory to see the producing line?
YES, welcome you to visit our factory, we will show you the features of our floral foam producing equipment and our company.
2.What about the configuration of the production line?
We have different configuration according to your factory scale.
1) one unit of reaction still + one unit of storage tank + foaming machine +cutting machine + related accessories. (Standard configuration)
2) one unit of reaction still without storage tank + foaming machine +cutting machine + related accessories.
3) two unit of reaction stills and/or one or two unit of storage tank + foaming machine +cutting machine + related accessories.
3.What about the required area for producing floral foam for install the whole standard configuration production line?
The whole set of production line need 600 square meters area at least, a certain area of storage room is necessary according to your producing capacity.
4.What about your lead time?
Normally 40days is enough for one set of standard configuration production line.
5.What about the packing and shipping?
Sea worthy package, for one standard configuration, 2*40’HQ is needed.
6.Do you provide a technical train service if we buy your production line?
Yes, before the equipment factory delivery, you can send your technical staff come over to our factory to learn operation method until he think it is ok for operation.
7.What about the quality guarantee?
12months. if any problem, we will try our best to help you to resolve it ASAP forever.
