Home > Products > Electrical wires > Nylon sheathed wire with copper conductor

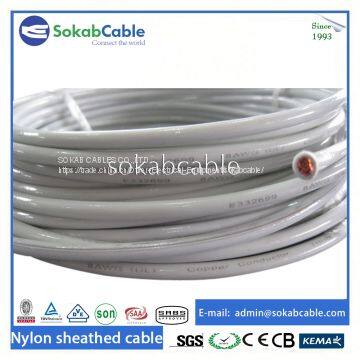

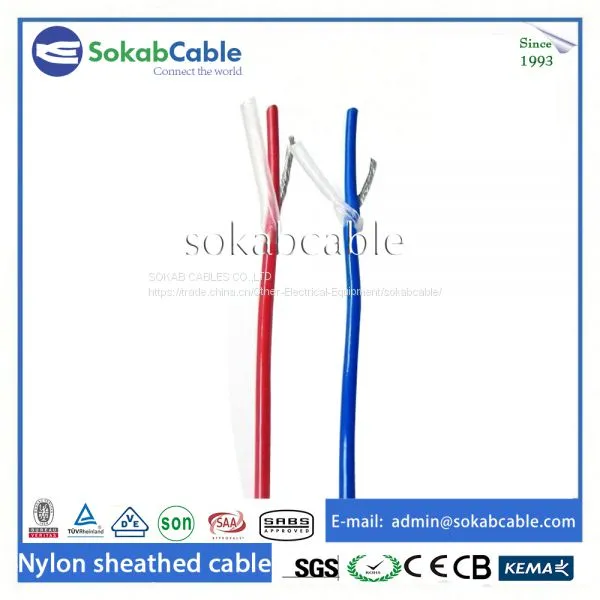

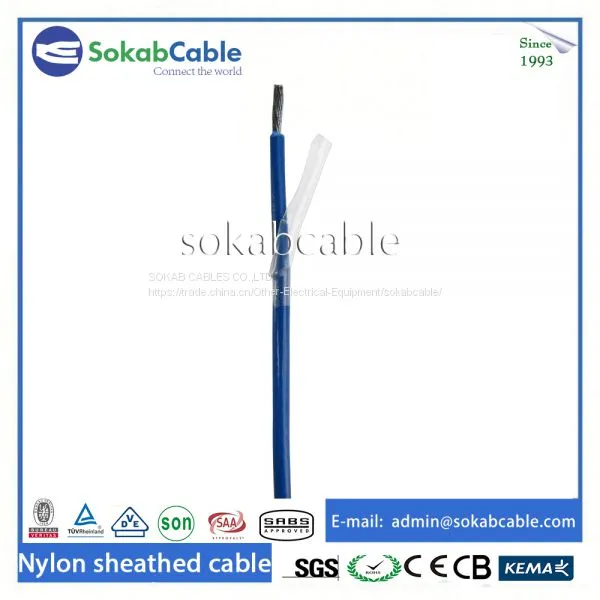

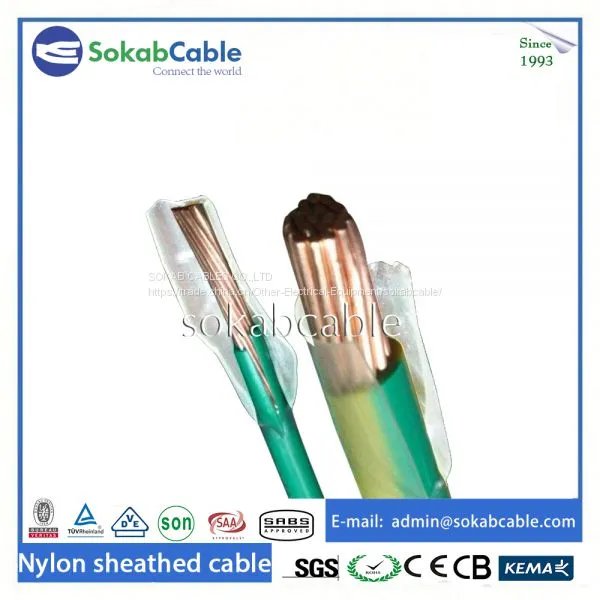

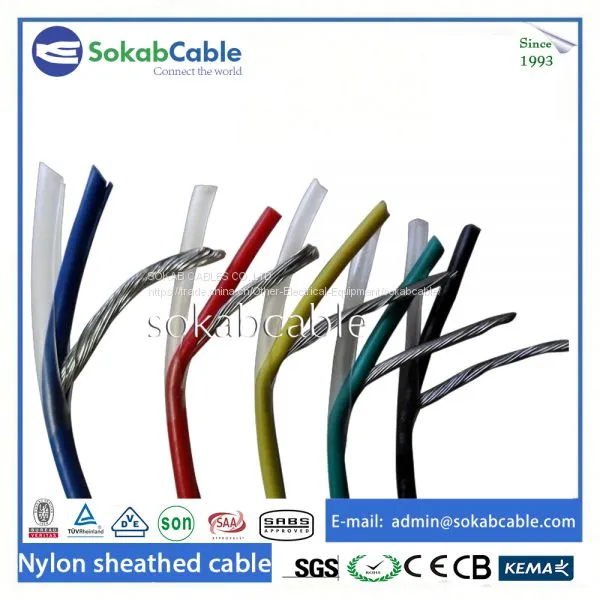

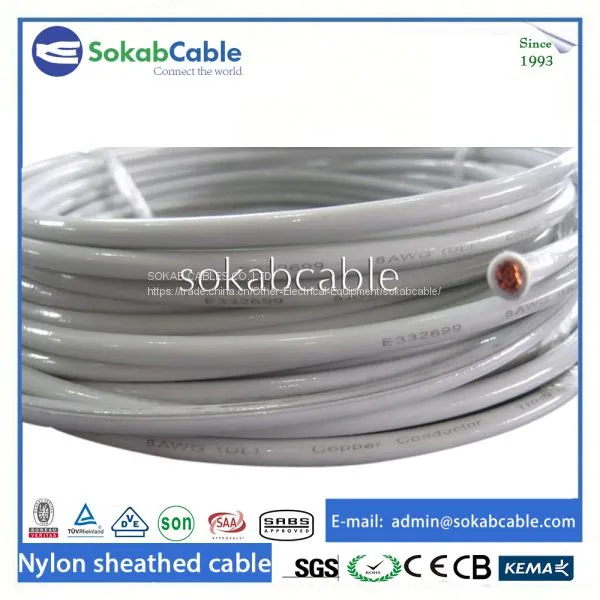

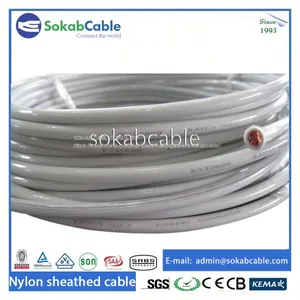

Nylon sheathed wire with copper conductor
- 1 Kilometer / Kilometers per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 10 days
Product Details
| Brand Name: | SOKABCABLE | Place of Origin: | China | Model Number: | SK-BVN |
| Application: | aircraft, install monitoring equipment | Jacket: | PVC | Conductor Material: | Copper |
| Number of Conductors: | single | Insulation Material: | PVC |
Product Description
1. Description:
Single core copper conductor pvc insulation, nylon sheathed wire, voltage: 300/500V,450/750V
2. Applications:
Widely used in aircraft low-voltage lines and highways to install monitoring equipment, with lines and highways electricity flu coil-only lanes(electronic police line, in line with coil flu) also used for lighting cables,with the road Gaogan Deng line. Particularly applicable for use in the cold.
3. Construction
Copper conductor | Plain circular flexible copper conductor |
Insulation | PVC |
Sheath | Nylon |
4. Standard:
IEC 227
Standard such as: BS, DIN, AS/NZS, UL upon request
5. Certificates:
CE, CB, RoHS, KEMA, SABS, UL, TUV, VDE, SON, SAA, SGS applied
6. Technical data:
Rated voltage: 300/500V, 450/750V
Test Voltage: 2500V
Max. Operating Temp of Conductor: Fixed laying: -30 ℃ to +80℃
Movable installation: -5℃ to +70℃
Min. Ambient Temperature during installation: 0℃
Min. Bending Radius: 15 X D ( cable outer diameter)
Insulation resistance: ＞ 20 Gohm x cm
Flame retardant conform to IEC 60332-1-2
