Single Interface light backpack hydraulic rescue tools set
- 1000 Piece / Pieces per Month
- Beijing China
- T/T Credit Card
You May Like
Product Details
Brand Name | TOPSKY | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

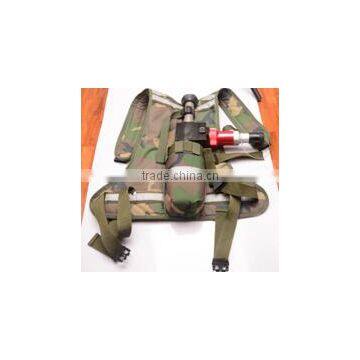

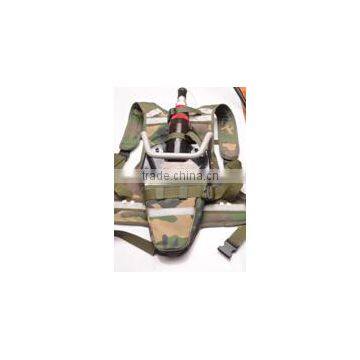

Single Interface light backpack hydraulic rescue tools set
Introduction

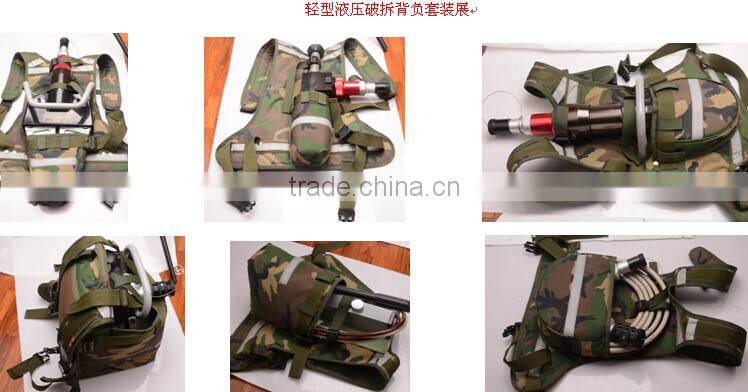

Lightweight backpack hydraulic rescue set, consists of a single interface to light a motorized pump, single light shear expansion interfaces, a single interface to a light cut, a single interface to light dilator, a single interface to light jack, a single interface to lightweight hand pumps and 5 m hose, a total of seven sets of combination. Lightweight backpack hydraulic rescue kit with high performance, ultra-compact, ultra-lightweight, ultra-flexible, easy to use, less affected by environmental factors and other characteristics, in addition to each product equipped with an advanced camouflage backpack. Rescue workers even in the most complex rescue environment can bring to bear the product, so as to rescue personnel in the rescue vehicle into the mountains is extremely difficult to win valuable time when rescue aid small area.
Lightweight backpack hydraulic rescue kit uses the most advanced technology of hydraulic rescue tools are double tubing connections single interface combines the normal single port and dual advantages of dual tubing, the use of safer, more efficient operation, simplified inter-connection and disconnection process tools can plug with pressure, saving precious rescue time.

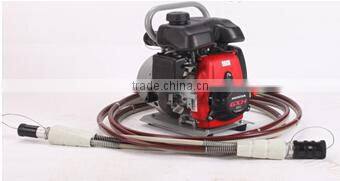

1. Single interface light hydraulic motor pump
Model:BJQ-63 / 0.5
Rated working pressure | 63MPa |
Engine power: | 1.6kW / 7000rpm |
High flow: | 0.5L / min |
Low flow: | 2.3L / min; |
working speed: | 4850 ± 200rpm; |
Hydraulic oil tank capacity: | 1.4L |
Accessories: | carrying a backpack. 5 m hose |
Dimensions: L * W * H: 310 × 280 × 380mm | Dimensions: L * W * H: 310 × 280 × 380mm |
Weight: <14kg | Weight: <14kg |
2. Single interface light spreader
Model:BJQ-35-50 / 500
Rated working pressure: | 63MPa |
opening distance: | 500mm |
Rated expansionary force: | 35KN |
Maximum expansion force: | 50KN |
Accessories: | Backpack backpack |
Dimensions: L * W * H: | 630 × 235 × 165mm |
Weight: | <11kg |

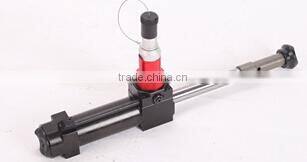

3. Single interface light cutter & spreader
Model:BJQ-18-33 / 23-10
Rated working pressure: | 63MPa |
Opening distance: | 240mm |
Cutting capacity (Q235 Material): | 25mm plate |
Cutting capacity thickness (Q235 Material): 9mm | 9mm |
Expansion force | 18KN-33KN |
Accessories : | carrying a backpack |
Dimensions: L * W * H: | 650 × 200 × 180mm |
Weight: | <9.5kg |
4. BJQ-28/110 Lightweight Single Interface cutter
Rated working pressure: | 63MPa |
shear capacity (Q235 Material): | 26mm |
Open distance: | 110mm |
Accessories: | carrying a backpack |
Dimensions: L * W * H: | 600 × 200 × 180mm |
Weight: | <9kg |

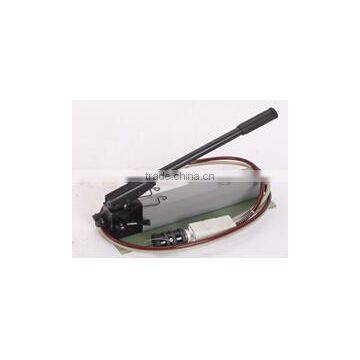

6. BS-63-X Single Interface lightweight hand pumps
Rated working pressure: | 63MPa |
Handle force: | 380N |
Hydraulic oil tank capacity: | 1.3L |
High flow: | 1.5ml / times |
Low flow: | 12ml / times |
Low Voltage Output pressure: | 5 ~ 10MPa |
Accessories: | carrying a backpack |
Dimensions: L * W * H: | 500 × 150 × 190mm |
weight | <7kg |
- Beijing Topsky Automatic Technology Co., Ltd

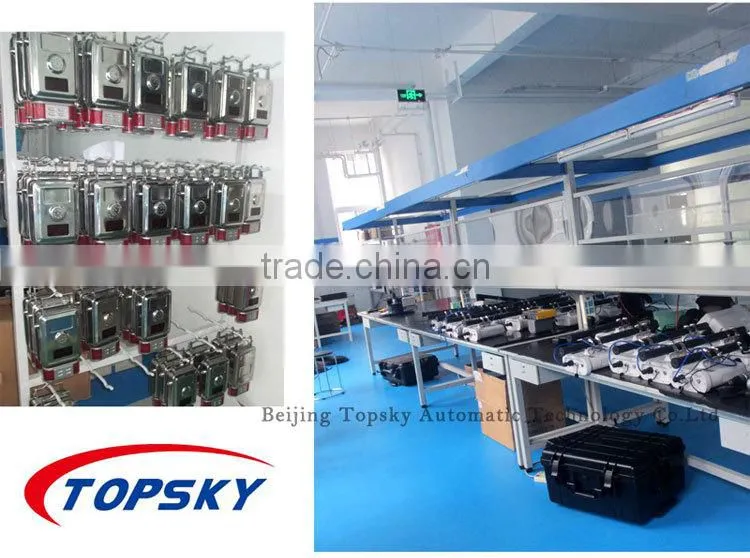

Beijing Topsky Automatic Technology Co., Ltd. is a professional large-scale manufacturer of all types coal mine safety equipment and fire fighting equipment, integrating development and production together. Our main products include portable gas detector, Ventilation Meter, breathing apparatus, Oxygen Self-Rescuer, Water mist system, Pneumatic Chain Saw and related products. Our company was established in 2003, and we have many years of history in the coal mine and fire fighting industry. Located at Beijing, we enjoy convenient water, land and air transportation.
