light box vacuum forming machine light box vacuum forming machine

Specifications

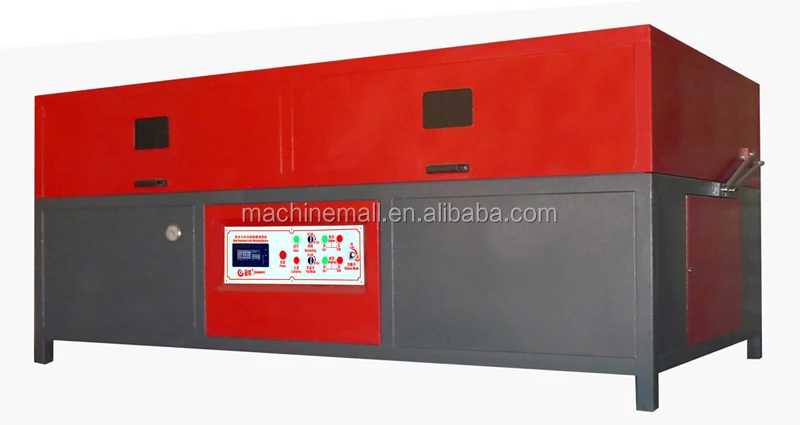

light box vacuum forming machine
1.make vacuum design with single mold
2.Easy to operate
3.Acrylic vacuum forming

light box vacuum forming machine

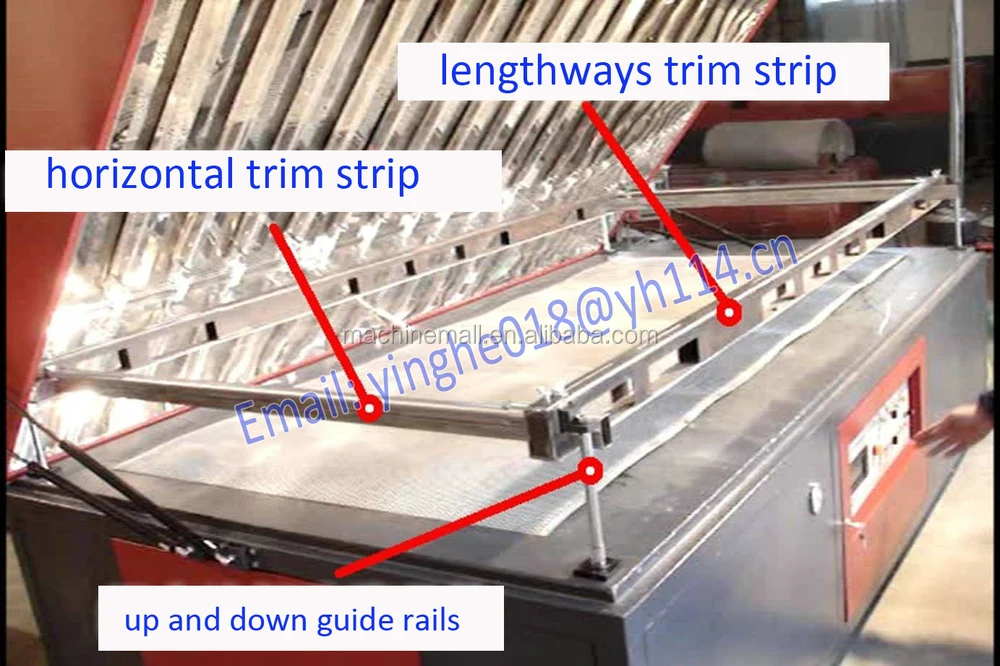

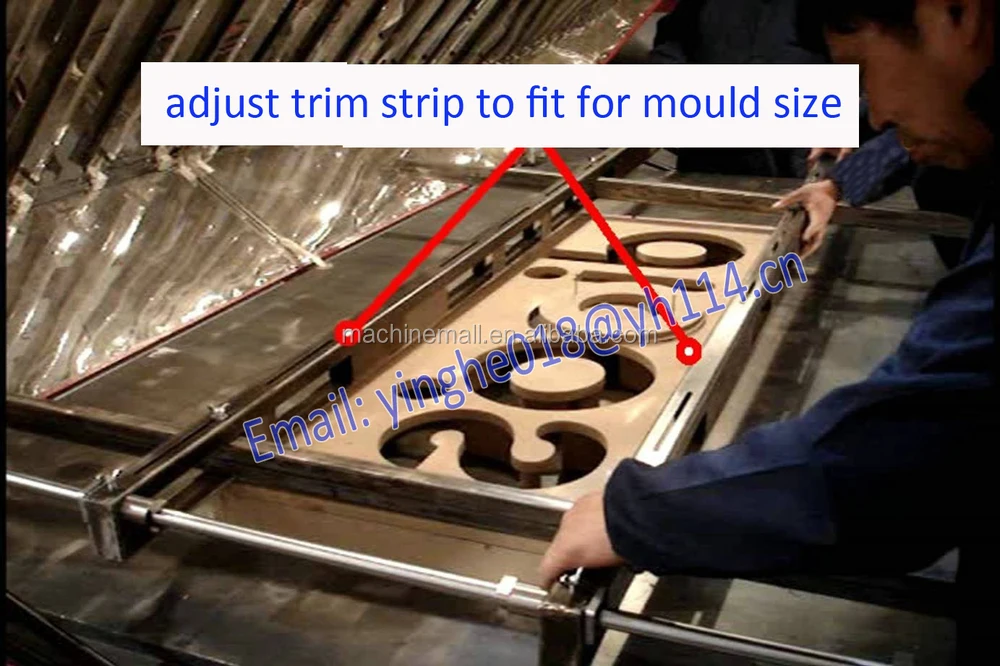

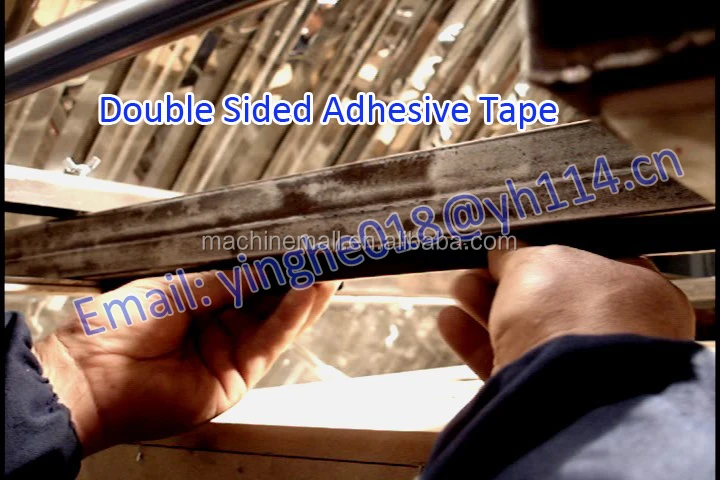

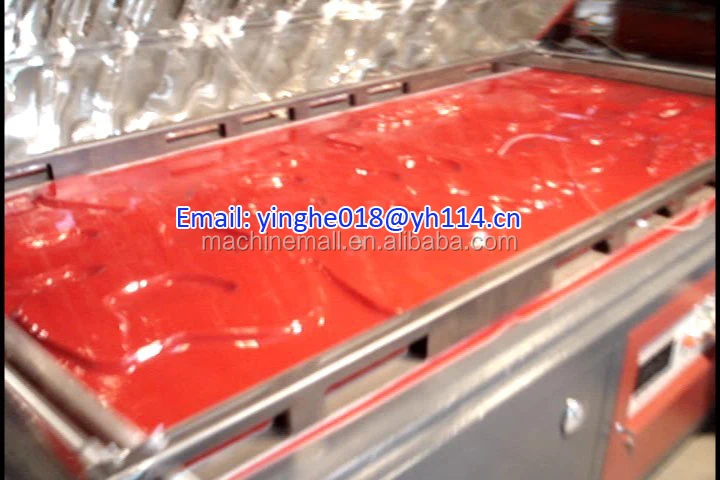

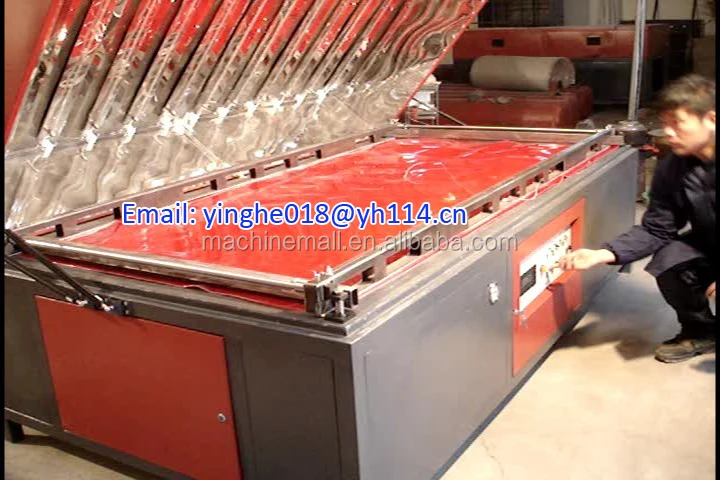

Before heating have to make a mould( usually with MDF board, engrave by cnc engraving machine), on pictures you can see machine with trim strip, these strip can move to adjust size, automatic press on material ensure strong power when vacuum suction.

Fearture:

1)For flashing signs with relievo surface!
Good cost effective.Ineasy and fast operation! The new comer in acrylic moulding field of Vaccum-Thermoform,with multi-functions in moulding process,may shap acrylic and heat meltable materials into the shapes of 3-D relief in just 8 minutes.

2) in small locating area: Not more than 4 sqm for the largest model 1325.

3) With light weightness: Less than 0.5 ton for the largest model 1325.

4) Low power consumption: 0.9kwh-2.5kwh for each turn of forming opertation.

5) Simpe operation with reasonable design: Easy and convenient operation, few waste or faults of materials.

6) High shaping speed: To heat and soft the acrylic materials by light-engergy, it only needs 6-8 minutes for froming up the signs, from put the material into it till the surface has been shaped.

7) Wide scope of application: No limits to the thickness of arcylic material, and no influence to the environmental temperature, even cold climate does not affect the production.

8)Manpower saving: One person can process the operation from the begin to finish.

9) In easy mold making: May make shaping mold without engraving machine. It can shape acrylic sheet into surfaces such as flat, ball-like, curved, and relievo freely by just a single manual carved mold of flat surface with hardwood or high-density plate.

10) With fine sense of 3-dimensional characteristics for the curved surface: Flashing signs formed by the machine not only have strong stereoscopic sense under day light, but also have well raising lighting uniformity in the night.

11) Good market and good benefit: The cost of signs with curved relievo surface produced by the machine, is obviously lower than signs produced by other analogous vacuum forming machine, but in higter selling price.

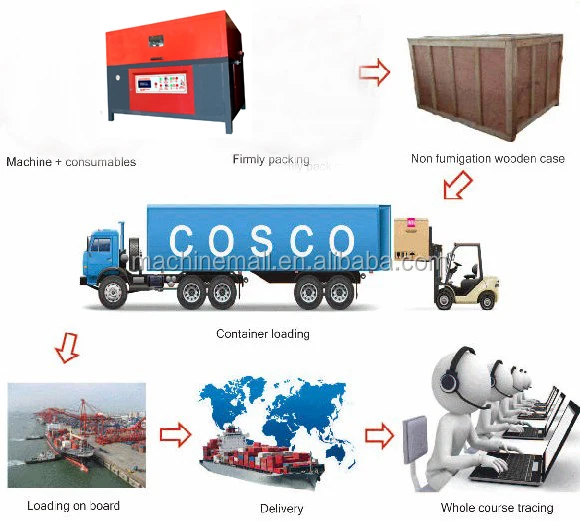

12) Good quality and wasy maintenance: Especially manufacture in export standard for oversea customers, the export models of 1313 and 1325 mormally undertake varied strict performance tests before sale, also with shake-proof packing for transportation.

13)The Acrylic Moulding Machine For 3-D Reliefing, we normally call it Acrylic Shaping Machine, It is a new comer of three-dimensional raising machine in Vacuum-Thermoform industry, it has the functions of both melting and moulding the materials once during the process of signs. And the shaping speed is 2-3 times faster than normal arcylic process, further more it can save over 30% of electric energy. It can shape up signs with special beautiful relief of 3-10cm on the surface, and has a strong three dimension in the raising shape. The moulding cost is lower than tranditional blister moulding machines, and this equipment is cheaper, the speed is faster, the investing cost is lower, the application range is larger, the benefit is higher, etc..
All these advantages will make it a wider market in the future.

Parameter
Model	YH-1313	YH-1325
Voltage/Frequency	380v/50Hz	380v/50Hz
Rated Power	9kw	18kw
Power consumption	<2.5KWH/Once	<2.5KWH/Once
Dimension	1.4m*1.4m*1.1m	1.4m*2.6m*1.1m
Avaliable shaping area	1.2*1.2m	1.2*2.4m
Forming time	6-8 minites	6-8 minites
Packing dimension	1.5m*.1.5m*1.2m	1.5m*2.7m*1.2m
Net weight	260KG	400KG
Gross weight	280KG	500KG

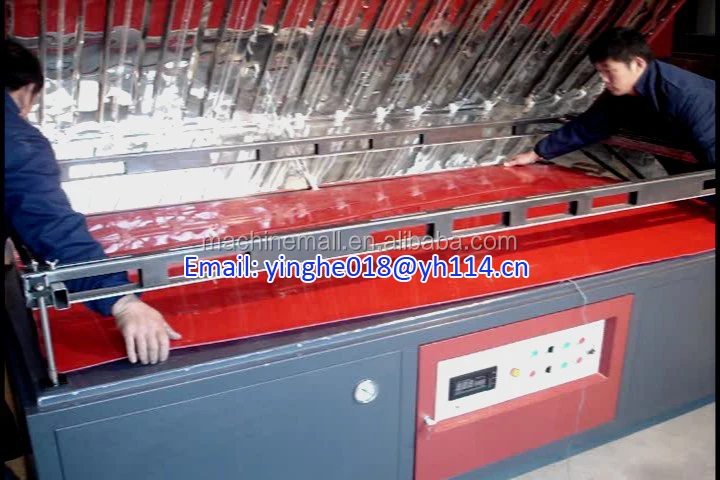

Detail photoes:

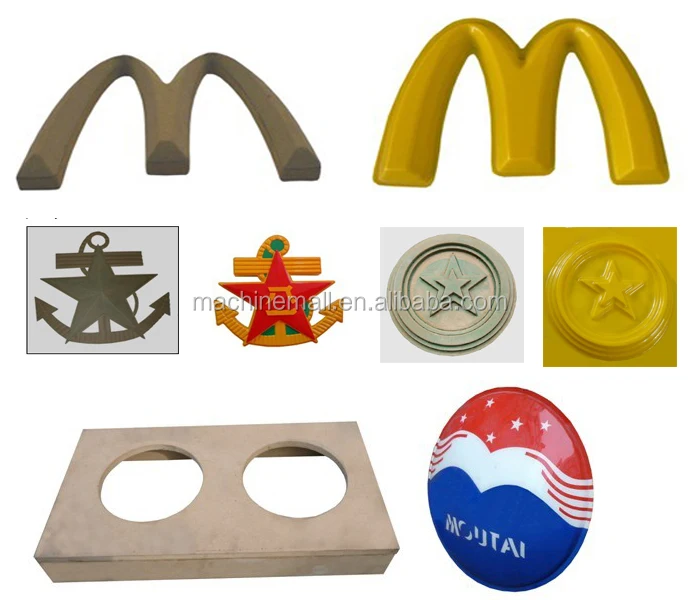

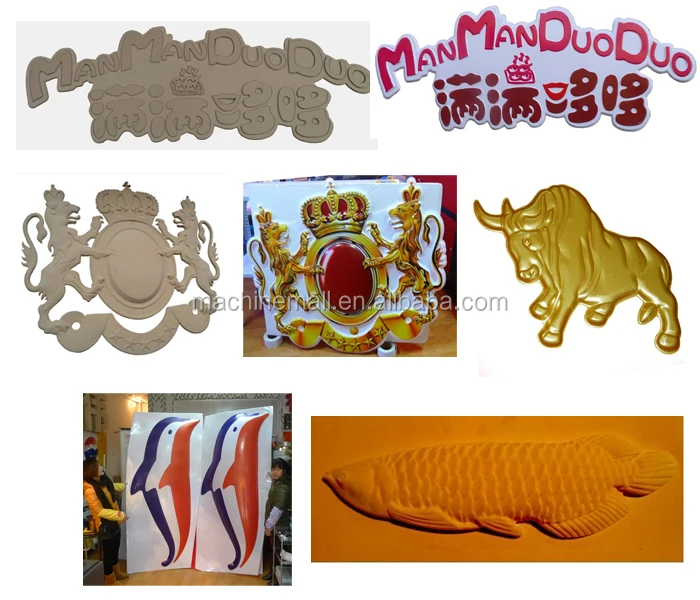

Sample desplay:
