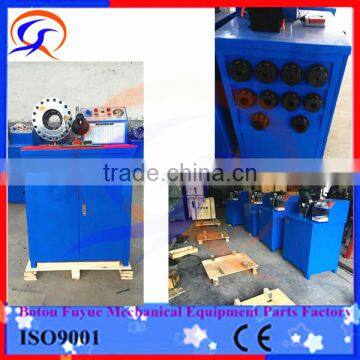

FY91A hose locking machine hose fitting machine High pressure hose pressing machine hydraulic hose swaging machine

All of our machines have 3 years warranty,we are factory,do the export now,so I can give the best prices for you.

We also can design the machines as request.

OEM we made for our clients  FY91A 2inch 5inch 6-51 mm High pressure hydraulic hose crimping machine

Introduction of the FY91A 2inch 5inch 6-51 mm High pressure hydraulic hose crimping machine :

How to Crimp the Ends on a Hydraulic Hose?

1 Insert one end of a length of hydraulic hose into the hydraulic hose fitting. Make sure it is securely in place.

2 Set the micrometer on the hose-crimping machine according to manufacturer specifications for the kind of hose and fitting you are using. Find these specifications in the hose-crimping machine's manual.

3 Place the fitting end of the hose into the crimping machine and line up the fittings mark on the machine with the top of the hose.

4 Insert the compression ring into the crimping machine.

5 Activate the hose-crimping machine. The crimping machine's press will exert pressure on the compression ring, causing the compression mechanism to press against the hydraulic hose fitting and crimp it in place.

6 Repeat this process with the remaining end of the hydraulic hose.

Precautions of our FY91A 2inch 5inch 6-51 mm High pressure hydraulic hose crimping machine :

1. The operator must accordance with technical rules.

2. Cut off the power when the machine is not in use.

3. The mold exchange must conduct after shutdown.

4. Die holder and die bonding surface should be kept clean, no metal shavings and other hard objects.

5. Inject the lubricating oil before start the machine.

6. Must tighten the screws before installed module.

7. The regulator must be adjusted under the predetermined pressure.

8. Don't put your hand into the internal when working.

9. When maintain electrical parts must comply with electrical safety regulations.

PTC Fair we attended  FY91A 2inch 5inch 6-51 mm High pressure hydraulic hose crimping machine
