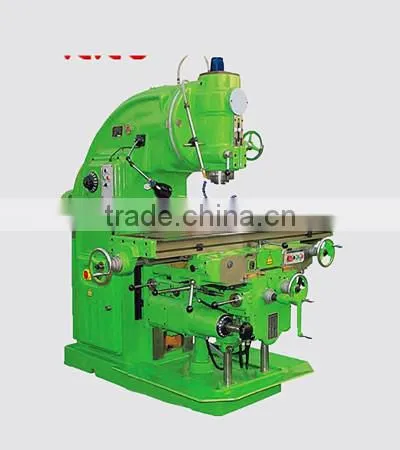

the advanced and low price vertical miliing machine VM40 of SMAC of china
- 35 Set / Sets per Month
- shanghai.china
- T/T L/C D/P D/A
-
the top sale and good precision new ram type universal milling machine URMD46 of china of SMAC
-
the hot sale and high precision vertical milling machine for sale XW5032B of china of SMAC
-
the hot sale and high precision chinese universal milling machine XW6032B of SMAC
-
the hot sale and high precision low cost vertical knee-type milling VM5032*16 of china of SMAC
-
the hot sale and low price chinese engraving machine EM22A of SMAC of CHINA
-
the hot sale and low cost chinese tool milling machine TM40A of SMAC of CHINA
Product Details
| Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | SMAC |
| Model Number: | VM40 | Type: | Vertical | CNC or Not: | Normal |
| Voltage: | 380V | Power(W): | 11kw | Dimension(L*W*H): | 2550*2150*2190mm |
| Weight: | 4250kg | Certification: | CE/ISO | Warranty: | 1 year |
Product Description

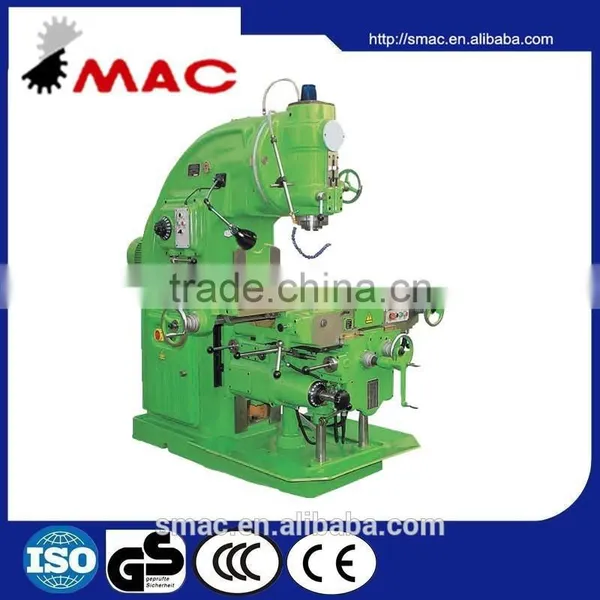

vertical miliing machine VM40
Main Characteristics & Application
Vertical Knee-type Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular, cuttres, formed cutters and face metal milling cutters. When mounted with the index, the machine will be able to perform milling operations in gears, cutter,helix groove, cam and tub wheel.
Vertical milling head can be swiveled by ±45°. Spindle quill can be moved in vertical. The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. Working table and slide ways adopted quality cast hardened ensure high accuracy.
Standard Accessories
Tool bar
Reducing sleeve
Tools
Manuals
Optional Accessories
Machine vice
Rotary table
Dividing head
Spring collect
Tool box
Iron wedge
DRO
Transmission box (X53K/1)
vertical miliing machine VM40
| Model | VM40 | VM53K | VM42 VM42A | VM42A/1 | VM42/2 | |
| Table size | mm | 400 x 1600 | 400 x 1600 | 420 x 1800 | 420 x 2500 | 500x2000/2500 |
| Longitudinal travel (Manual/Power) X | mm | 900/880 | 980/880 | 1200/1180 | 1600 | 1250/1600 |
| Cross travel (Manual/Power) Y | mm | 315/300 | 315/300 | 360/350 | 410/400 | 400 |
| Vertical travel (Manual/Power) Z | mm | 385/365 | 385/365 | 460/450 | 460/450 | 400 |
| Feed speed steps | 18 | 18 | 18 | 15 | 15 | |
| Rapid feed ranges: Longitudinal X | mm/min | 19-950 | 19-950 | 22.5-1180 | 10-1250 | 10-1250 |
| Cross Y | mm/min | 12.6-634 | 12.6-634 | 22.5-1180 | 10-1250 | 10-1250 |
| Vertical Z | mm/min | 6.3-317 | 6.3-317 | 8.6-420 | 2.5-315 | 2.5-315 |
| Min. distance from spindle end to table | mm | 30-500 | - | 60-520 | 340-790 | 0-500 |
| Quill travel | mm | 85 | - | 85 | 90 | -- |
| Spindle speed steps | 18 | 18 | 18 | 20 | 20 | |
| Spindle speed ranges | rpm | 30-1500 | 30-1500 | 30-1500 | 18-1400 | 18-1400 |
| Main motor power | kw | 11 | 11 | 11 | 11 | 11 |
| Overall size | cm | 255 x 215 x 219 | 255 x 215 x 219 | 243 x 226 x 243 | 265 x 220 x 276 | 277/327x253x248 |
| Net weight | kg | 4250 | 4250 | 5000 | 5400 | 5160/5400 |
vertical miliing machine VM40
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
