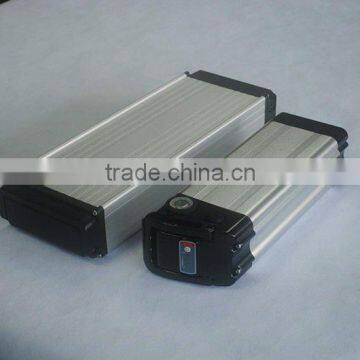

24V 9Ah LiFePo4 electric bicycle battery
- 1000 Unit / Units per Month
- Shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | o'cell | Model Number: | OSN-LF-2409 |
Composed Type: | Other, series and parallel | Type: | Li-Ion | Components: | Other, LiFePO4 |
Size: | 130x160x75mm | Voltage: | 24V | Weight: | 3.7kg |
Nominal Capacity: | 9Ah | Application: | E-bike |
Packaging Details
Standard package or follow client requirement
Product Description
Detailed Product Description
24V 8Ah Lifepo4 electric bicycle battery
1. High capacity and long cycle life
2. 2A or 5A charger
24V 9Ah Lifepo4 electric bicycle battery
Specification
Module | OSN-LF-2409 |
Dimension | 130*160*75mm |
Weight | 3.7kg |
Nominal voltage | 24V |
Nominal capacity | 9Ah |
Discharge cut-off voltage | 20V |
Charge cut-off voltage | 31.2 |
Standard charge voltage | 29.2 |
Standard charge current | 2A |
Max. charge current | 5A |
Continuous discharge current | 20A |
Charger | CC/CV |
working temperature | -20-50°c |
Storage temperature | -20~50°c |
Cycle life | 1000 cycles(80% DOD) |
Motor | 480W or below |
Feature:
1. Safety: currently the safest li-ion battery, CE UL approved, none fire, none explosive.
2. Environment friendly, no toxic material contained.
3. Powerful: HP battery can discharge in 15C_20C.
4. Long life cycle, more than 2000 cycle in 0.5C-1C discharge.
5. No memory effect: can be recharged any time, no reduction of capacity.
6. Broad operation temperature -20---60 centigrade.
7. Small in size and light in weight. Compare with our battery, 1/2 size of lead acid battery, 70% size of Ni-MH Ni-Cd battery. 1/2 weight of lead acid battery.
Company Profile
O'CELL New Energy Technology Co., Ltd., established in Oct.2008, is a high-tech enterprise which involves in research, production, sales and services of qualified Lithium Iron Phosphate (LiFePO4) cell, battery pack, reliable battery management system and one-stop power solution, for a wide range of applications worldwide including HEV, EV, AGV, Solar & Wind Power Generation System, UPS, Lighting, Toys, etc.
O'CELL's manufacturing facilities are ISO9001:2008 and ISO14001:2004 registered. It's products are compliant with CE, RoHS and have passed UN transportation testing, which is required for international transportation of all lithium batteries.
O'CELL people are the engine of our success today and in the future. They are motivated to keep well informed about the most recent technological developments and modernization management. Meanwhile, O'CELL continues to invest in research and development in order to take a leadership role in advanced lithium battery technology.
O'CELL factory covers over than 96,000m2 and bases in Yichang which is famous for Three Gorges and the biggest water power center in the world. Taking the advantage of sufficient electricity, O'CELL will pass the benefit to our customers. O'CELL sincerely expects to cooperate with our customers for mutual benefit and common development. O'CELL also hopes that we can contribute to new energy development and green circular economy.
