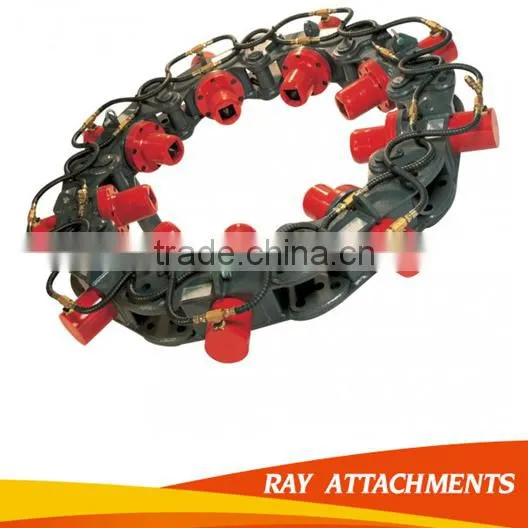

Latest super hydraulic pile breaker/cutter, best curshing round piles construction equipment

Your problems

How can we solve it?

Dangerous

1. Contact-free operation is enabled.
2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile.

Slowly

1.Replaceable and changeable module combination makes its applicable for piles with various diameters.
2.The modules can be assembled and disassembled easily and conveniently.

Noisy

Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments

Expensive  salary

1.Fewer operating workers are required to save cost for labor and machines maintenance during construction.
2.Suitable for different kinds of carrier.
3.Module generalization is realized with our SP380 and SP400-B square pile machine. It can be used for both circular piles and  square piles by changing the module combination

Durable?

1. It is made of military material by first-class suppliers with reliable quality, extending its service life.
2.The mainboard used Q345B and the chisel used the 42Crmo.
3.12 month after-sales service.
4.Provide 50 spring pins for free.
5.Professional small tools for free.

Model

SP606

SP380

SP400-A

SP400-B

SP500

Range of pile diametre(mm)

1700-1850

950-1050

300-400mm

300-400mm

400-500mm

Maximum drill rod pressure

690KN

320KN

320KN

320KN

320KN

Maximum stroke of hydraulic cylinder

180mm

150mm

150mm

150mm

150mm

Maximum pressure of hydraulic cylinder

34.3Mpa

34.3Mpa

34.3Mpa

34.3Mpa

34.3Mpa

Maximum flow single cylinder

25L/min

25L/mim

25L/mim

25L/mim

25L/mim

Cut the number of pile/8h

40-100

60

160

160

120

Height for cut pile each time

≤300mm

≤300mm

≤300mm

≤300mm

≤300mm

Supporting the digging machine tonnage(excavator)

≥35T

≥20T

≥7T

≥8T

≥15T

One-piece module weight

280kg

110kg

/

110kg

200kg

One-piece module size

908*680*380

604*594*286

/

604*594*286

595*980*275

Work status dimensions

3200*3000

2268*2500

1440*1440*1500

1600*1600*2000

1710*1710*2500

Total pile breaker weight

3.7T

1.5t

600KG

650KG

960KG
