Giant XY stage complete kit for DIY CO2 laser engraving and cutting machine 1318 1325 1525 1520 1825 2030
USD $550 - $3,000
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- shenzhen dongguan guangzhou shanghai qingdao ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Taiwan PMI MSB15E MSB20E MSB25E square rail linear guide block slider
-
Taiwan PMI MSB15S MSB20S MSB25S square rail linear guide block slider
-
Taiwan PMI MSA15E MSA20E MSA25E square rail linear guide block slider
-
Water protection switch water flow sensor water level sensor water level switch for CO2 laser engraving and cutting machine
-
Cheap simple CO2 laser cutting head auto focus focusing sensor for automatic up down table
-
Taiwan PMI MSA15S MSA20S MSA25S square rail linear guide block slider
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | SZRET | Model Number: | Customizable |
Product Description

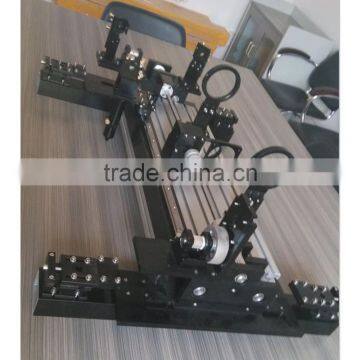

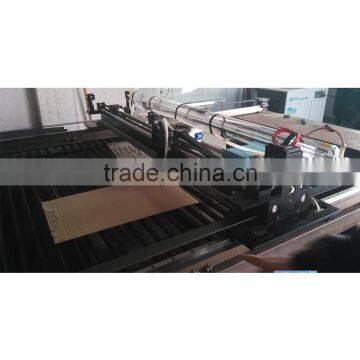

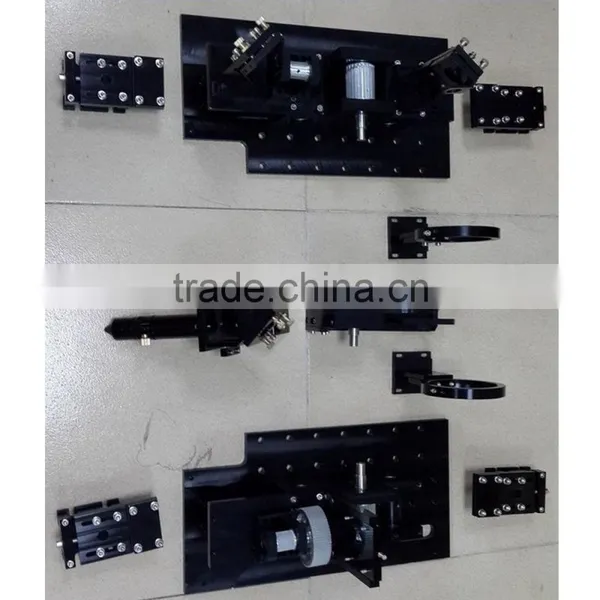

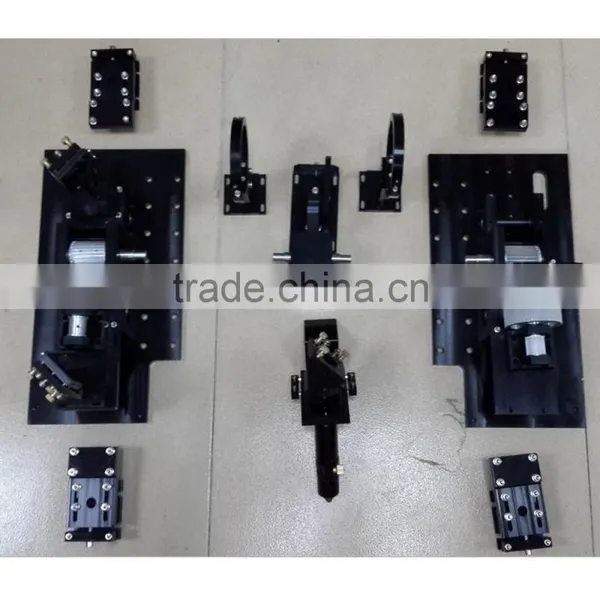

Optical and mechanical parts whole sets for flat bed cutting machine
x use 57 motor ,y use one 86 motor
x need 20mm dia lens 25mm dia mirror, x needs 3m-15 belt
y needs 5m-40 belt x uses 15rails ,y uses 20mm rails
| No. | Item | Unit | Quantity |
| 1 | belt fixture | Piece | 4 |
| 2 | right Y axis fixture board | Piece | 1 |
| 3 | left Y axis fixture board | Piece | 1 |
| 6 | laser tube supports | Piece | 2 |
| 7 | first reflective mirror mount | Piece | 1 |
| 8 | second reflective mirror mount | Piece | 1 |
| 9 | laser head | Piece | 1 |
| 10 | X axis belt fixture | Piece | 1 |
| 11 | X axis speed reducer | Piece | 1 |
| 12 | X axis 57 motor support | Piece | 1 |
| 13 | Y axis 86 motor support | Piece | 1 |
| 14 | slider block | Piece | 6 |
| 15 | X axis motor gear | Piece | 1 |
| 16 | Y axis motor gear | Piece | 1 |
| 17 | 3M-327 loop belt | Piece | 2 |
| 18 | Rail support | Piece | 10 |
| 19 | 12mm diameter optical axis | Meter | 1.15 |
| 20 | 12mm shafter connector | Piece | 4 |
| 21 | 45*50 square base pipe | Meter | 1.42 |
| 22 | RE4080 aluminium profile | Meter | 4.26 |
| 23 | RE4040 aluminium profile | Meter | 1.42 |
| 24 | Rail base | Meter | 2.94 |
