FPY Series Super Thin Hydraulic Cylinder Flat Jack With Manual Pump
- 5000 Piece / Pieces per Month
- Qingdao shenzhe shanghai ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | China Coal | |
| Model Number | FPY | Type | Hydraulic Jack | |
| Certification | ISO | Min Height | 40mm | |
| Max Height | 110mm |
Product Description
Product Introduction

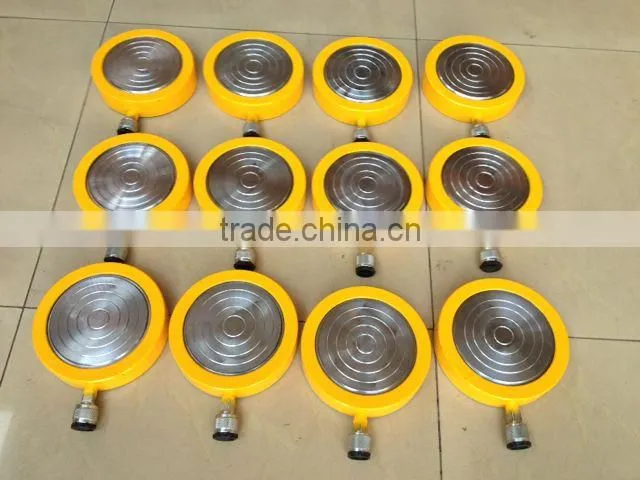

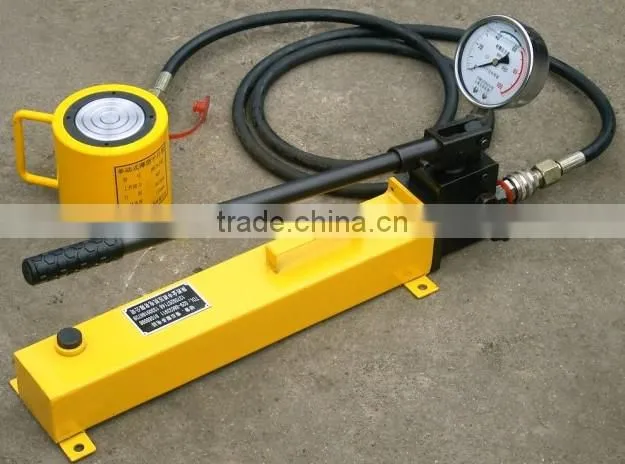

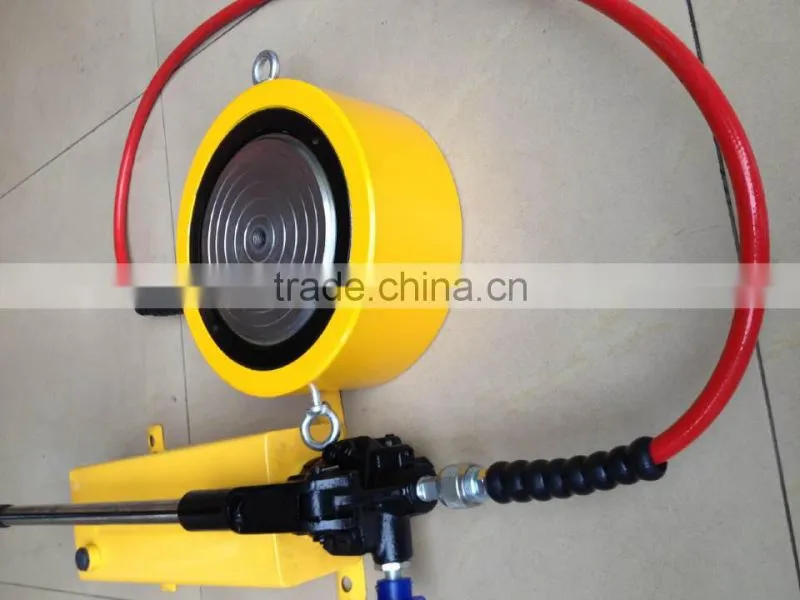

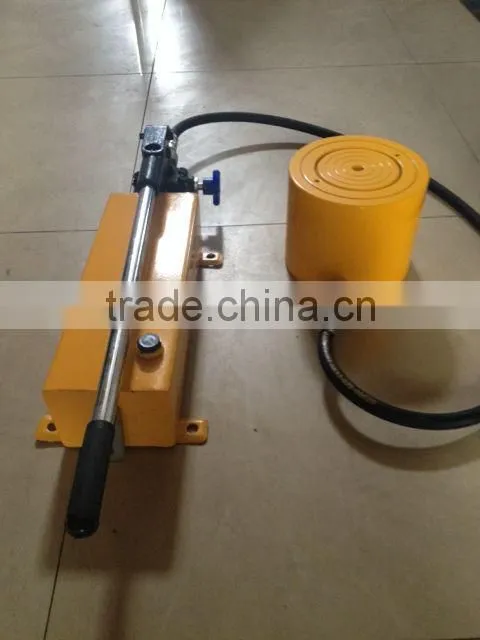

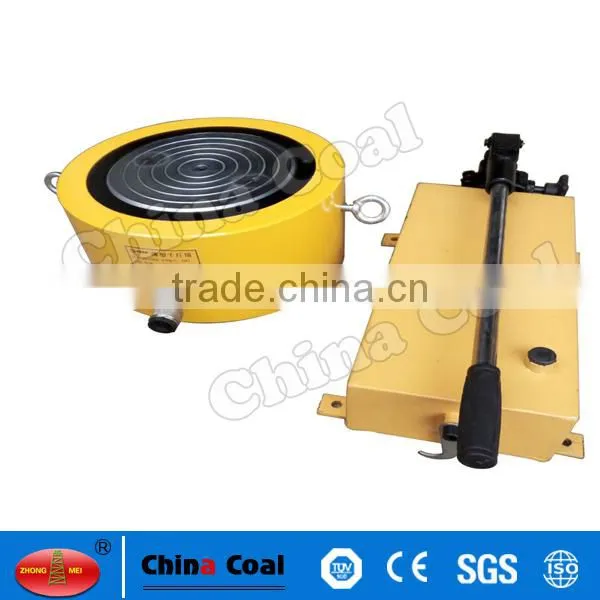

FPY Series super thin hydraulic cylinder flat jack with manual pump
1.Compact, flat design for use where other cylinders will not fit
2.Partial model with handle for easy carring
3.Mounting holes permit easy fixturing
4.Hard chrome plated high quality steel plungers
5.Grooved plunger ends require no saddle
6.Single-acting, spring return
Main Parameter
ITEM NO | FPY-05 | FPY-10 | FPY-20 | FPY-30 | FPY-50 | FPY-100 |
Tonnage | 5T | 10T | 20T | 30T | 50T | 100T |
Work Travel | 7mm | 10mm | 12mm | 14mm | 18mm | 21mm |
Cylinder Effective area | 9.61 cm2 | 11.3 cm2 | 22 cm2 | 31.1 cm2 | 56.7 cm2 | 95cm2 |
Collapsed Height | 41mm | 52mm | 58mm | 64mm | 72mm | 88mm |
Extended height | 48mm | 62mm | 70mm | 82mm | 90mm | 109mm |
Outside dia(mm) | 64x48 | 81x56 | 100x77 | 115x95 | 138x115 | 185x160 |
CylinderBore die | 35mm | 43mm | 60mm | 75mm | 95mm | 130mm |
Weight | 0.7KG | 1.50KG | 2.7KG | 4.5KG | 7.0KG | 15.7KG |

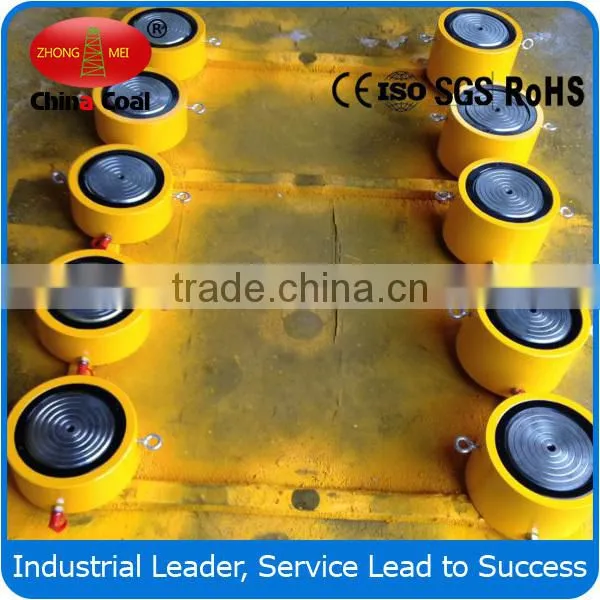

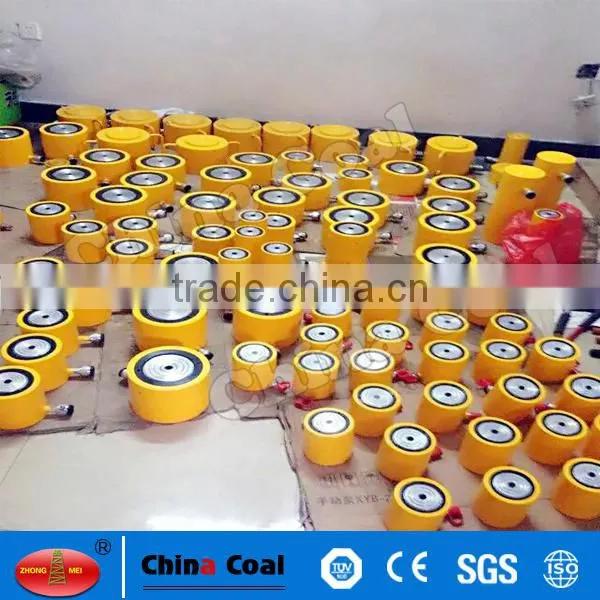

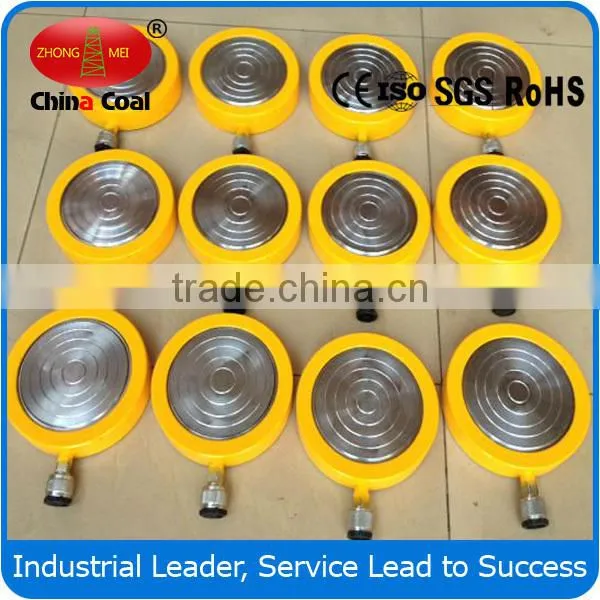

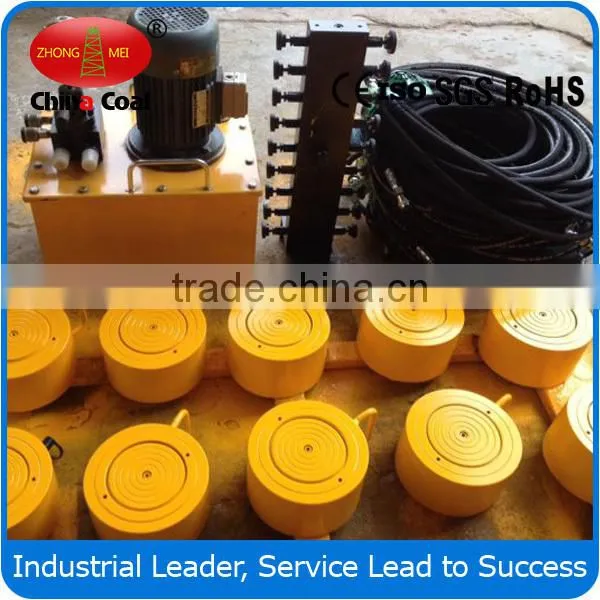

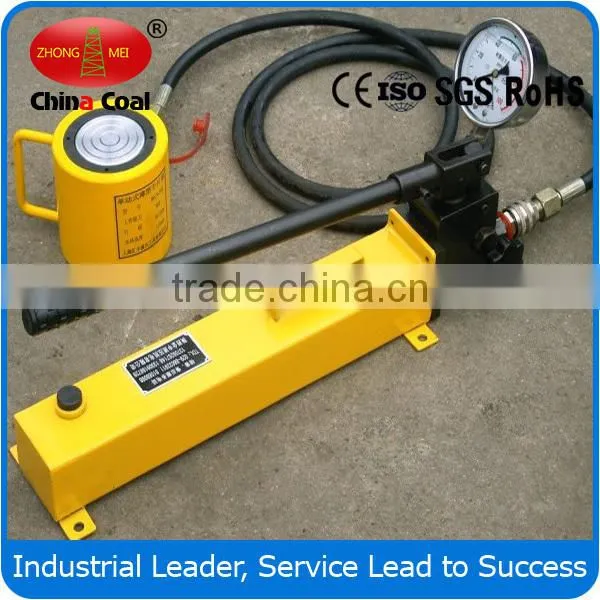

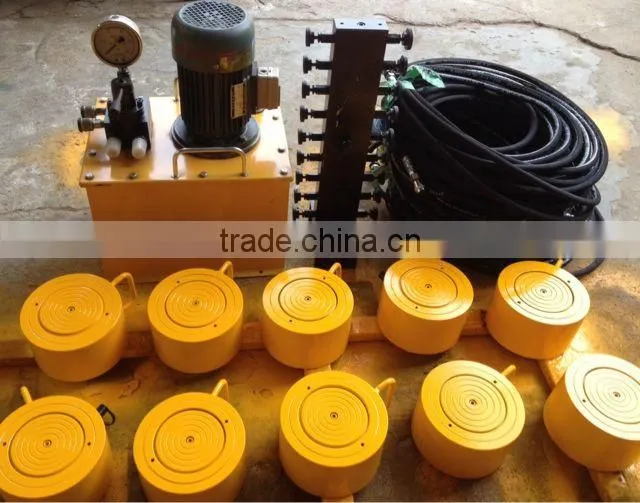

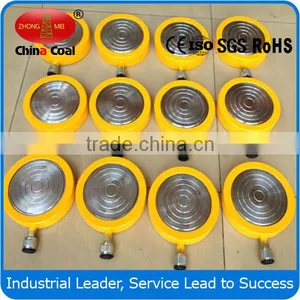

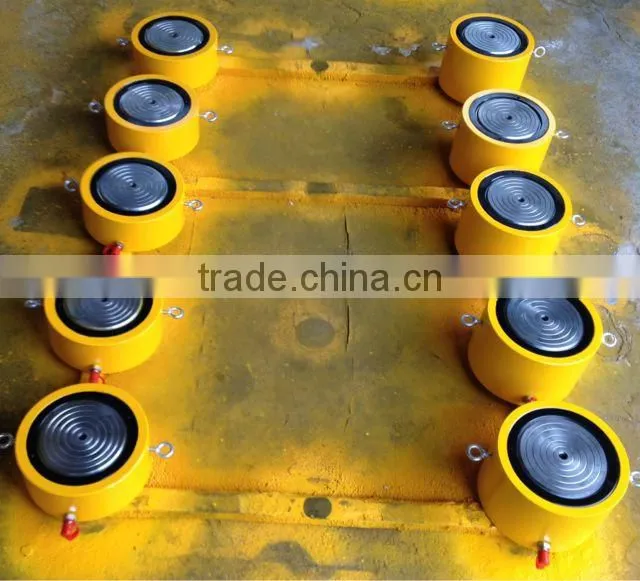

Figure Photos
