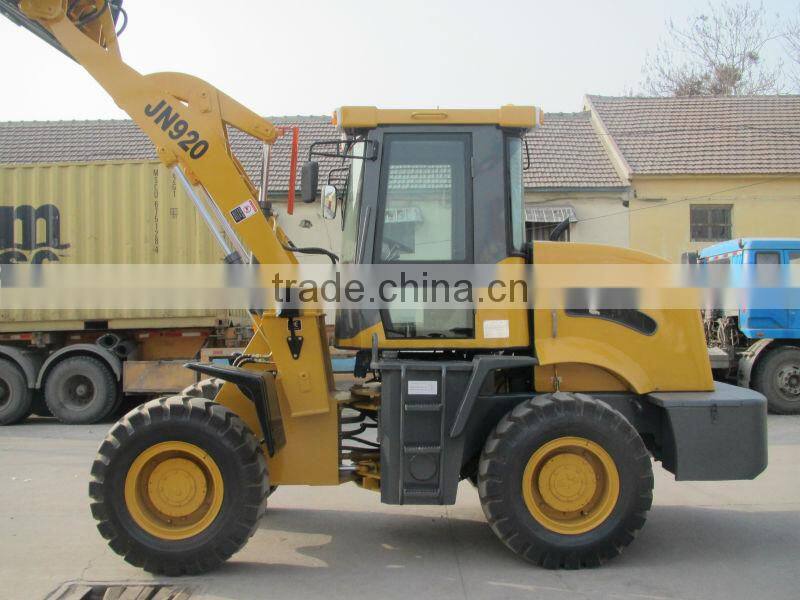

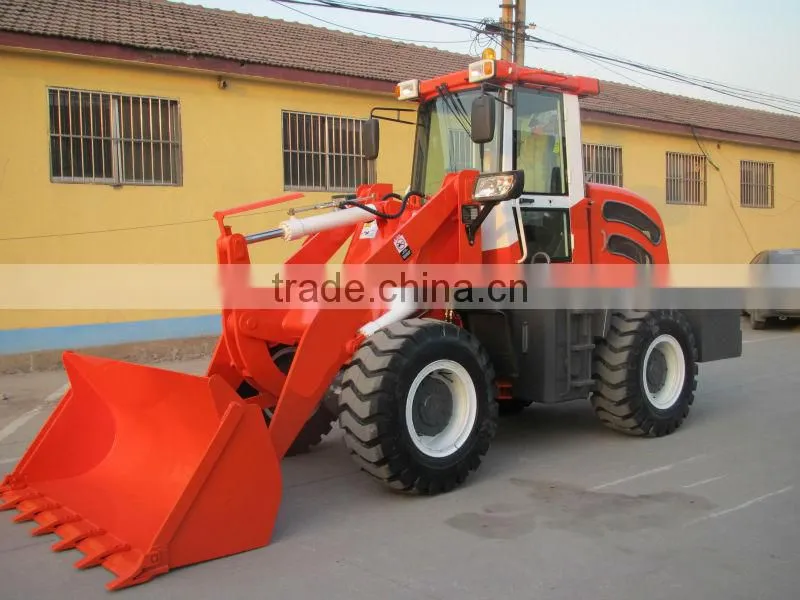

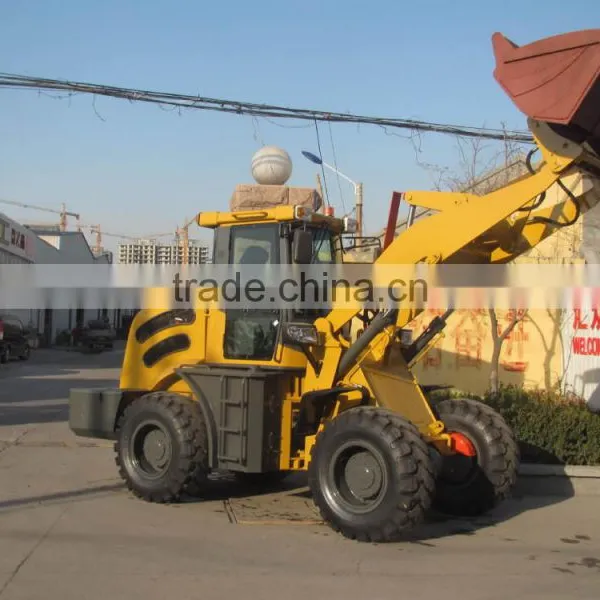

ZL20 shovel wheel loader

Name: ZL20 shovel wheel loader
Brand: HUIZHONG
Availability: InStock

FOB Price

USD $12,000 - $16,000 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

ZL20 shovel wheel loader

Specification	overall weight(kg)	5500
	L×W×H(mm)	5950×1900×2850
	rated bucket capacity(m³)	1.0
	Rated load(kg)	2000
	Maximum dump height (mm)	2850
	Wheelbase	2330mm
	thread	1460mm
	Max breakout force	70KN
	Total time	11.3s
	Bucket indicator	Yes
Engine	Model	YTR4108G92
	optional	Cummins4BT3.9-C100
	Type	Vertical, In-line , Water cooling, four-stroke diesel engine
	Rated power(kw)	60KW/75kw
	Rated speed(r/min)	2400
Transmission system	Model of torque converter	YJ280
	pattern	3 element single stage
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
	Max travel speed	24km/h
Hydraulic system	Working pump	CBF25
	DISPLACEMENT	25ml/r
	Working pressure	16Mpa
	Distribution valve	DF20.2C
Axle	Main reducer pattern	Arc taper gear, moderation of first grade
Axle	Pattern of wheel reduction	Planet gear moderation of single
Steering system	Type	hydraulic steering
	Min turning radius(mm)	4500
	Max turning angle	35°±1
Tires	Standard tyres	16/70-20
Break system	Service brake type	Air assisted oil disc on four wheel
Break system	Parking brake type	Soft axle control, outside bunch drum type
