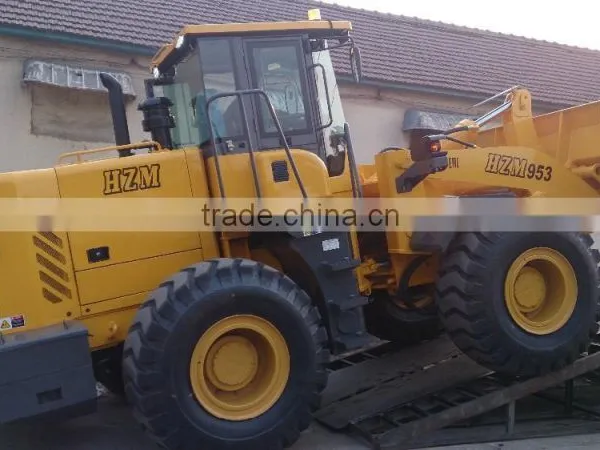

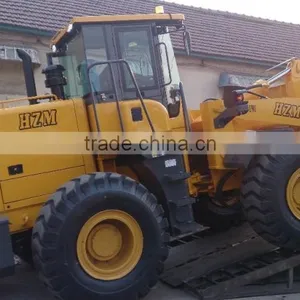

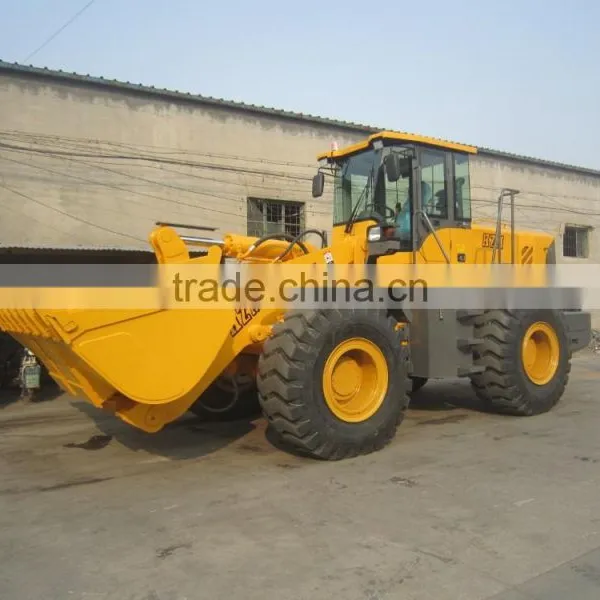

5ton Zl50F Construction Wheel Loader With CE

5 ton front wheel Loader

Rating loading capacity

5000 kg

Travel speed

Forward 1st gear

10 km/h

Bucket capacity

3 m³

(standard bucket)

optional bucket

2.5m³(rock bucket) ;

2.7 m³;

Forward 2nd gear

34 km/h

3.6 m³ (lightweight bucket)

Dumping height

3205 mm

Reverse 1st gear

13 km/h

Dumping reach

1200 mm

Max. lifting height

4315 mm

Diesel engine

Modl

standard

Steyr WD10G220E11

optional

Xichai6110/Deutz

System pressure

16 Mpa

Rating power

162 kw

Arm lifting time

≤ 6.5s

Rating rev.

2200 r/min

Arm declining time

≤ 4.5s

Min. specific fuel consumption

215 g/kw.h

Bucket forward tilting time

≤ 2.5s

Transmission

type of torque converter

Dual-turbine type

Breakout force

154 kN

Stall torque ratio

4

Min. turning radius(center of outside wheels )

5745 mm

Oil pressure of torque converter inlet

0.3 - 0.45 Mpa

Type of Gearbox

Planetary, hydraulic power

shift

Working pressure of steering system

16 Mpa

Oil capacity

Fuel tank

278 L

Max. turing angle

38°

Hydraulic system

278 L

Wheelbase

3200 mm

Engine oil

20 L

Tread

2200 mm

Gearbox

45 L

Tyre

specification

23.5-25

Axles and final drive

83 L

Air pressure

Front 0.32 Mpa  Rear 0.28 Mpa

Brake system

3.52 L

Operation weight

16.5 t

Axles

Type of main transmission

Spiral bevel gear

Dimension

Overall length

7720 mm

Reduction ratio

5.286

Overall width

3030mm

Type of final drive

Spur planetary gear

Overall height

3380 mm

Reduction ratio

4.26
