5kva silent diesel generator set,air-cooled diesel generator price in india

FOB Price

Negotiable / Unit

72 Units(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

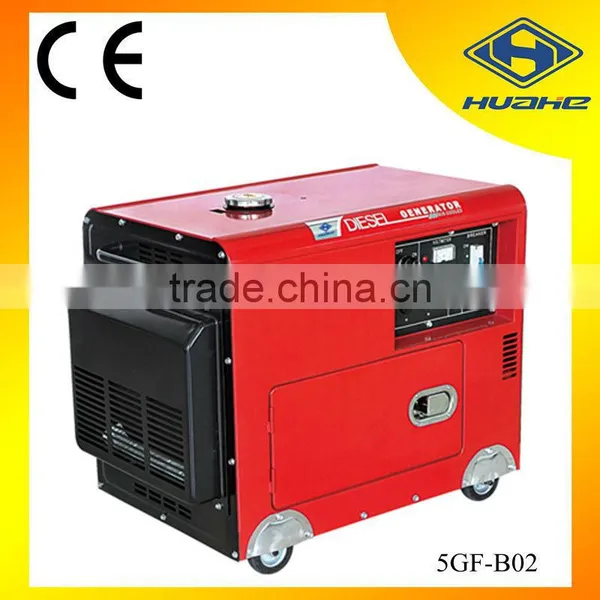

5kva silent diesel generator set,air-cooled diesel generator price in india

1. Low fuel consumption 2. ultra-low-noise 3.Can be widely used in highways, railways, airports, factories, hospitals

Model

Silent type

5GF

Generator	Type	Revolving field type 2 pole generator
	Frequency (Hz)	50	60
	Cont. Output (KW)	4.2	5
	Voltage (A.C)(V)	230	240 (120)
	Current (A.C)(A)	18.3	20.8 (41.7)
	Engine speed (r/min)	3000	3600
	Phase	Single phase
	Power factor (COSΦ)	1
	Excitation system	Controlled constant self-excitation
	D.C output V/A	12V/8.3A
	Operation capacity	12 hour constant operation
	Coupling pattern	Straight shaft coupling
Model		186FG(E)
Engine	Type	Direct injection vertical, 4-cycle, air-cooled diesel engine
	Displacement cc (cu.in)	406 (24.78)
	Max. output (KW/rpm)	6.6	7.35
	Cont. output (KW/rpm)	5.9	6.6
	Starting system	Electric start
	Governor system	Centrifugal weight system
	Fuel	Diesel light fuel (BS-AL or equivalent)
	Fuel tank capacity (L)	16
	Lube oil capacity (L)	1.65
	Bore×Stroke	86×75
	Protection system	Low oil, warning system/Stop device (not for L-series)
Unit	Noise level at 7m dB (A)	770
	Dimension (L×W×H) (mm)	950×580×740
	Dry weight (kg)	157
