HDG Ringlock system scaffolding part ringlock scaffold brace

BY STEEL PALLE

Specifications

ringlock scaffold brace
1) Raw materil:Q235&Q345
2)Surface finish:painted .HDG
3)Pipe:48.3*3.2mm/3.8mm
4)Standard.48.3x3.2

Ringlock scaffolding Component  /  steel ringlock scaffolding system

Standard

Use: Standards are the vertical members of ringlock scaffolding. They provide the

vertical support for scaffolding.



ledger

Use: Ledgers are the horizontal members of Ringlock scaffolding. They provide

horizontal support for loads and planks. Ledgers can also be used as mid rail and top or hand guard rails



Base collar

Use: The base collar is designed to “base out” the Ringlock scaffolding system sitting on top of the screw jack creating a lower node point.

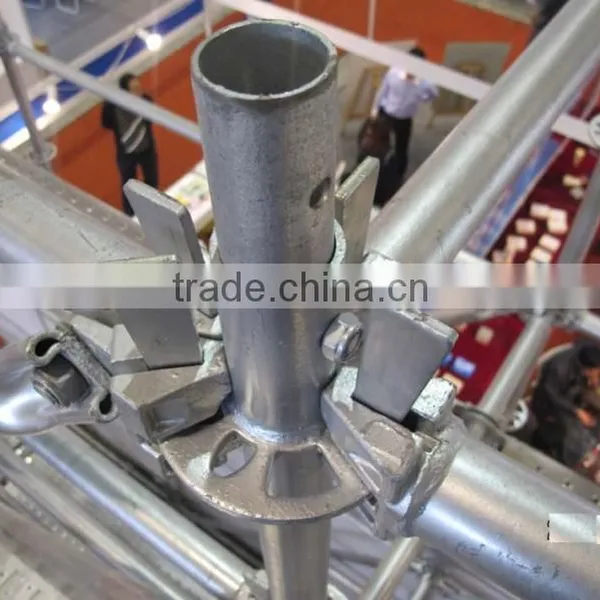

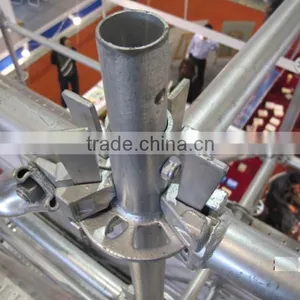

Ringlock scaffolding



1. Ringlock Scaffolding has fewer components, easy and quick assembly.
2. Advanced structural design, heavy load bearing capacity.
3. Overcome the difficulty of non-standard construction, suited to diverse range of on-site scaffold operations.
4. Single scaffold kit, no extra clamps or accessories required, no small parts

5. Individual scaffolding parts can be packed in bundles for easy storage and transportation.

6. Scaffolding Finish: Electric/hot galvanized or plastic coated

7. Scaffolding Packing: Palletized in steel pallet and baled with steel tape

8. Producing process: Cutting, forged, casted, pressed, welding, pained.

9. Installation: a. put the plug into the disc

b. tighten the insert with hammer

10. Widely uesd: can be widely applied to construction, bridge tunnel, equipment installation, decoration, shipbuilding and other projects.

11. Components: ledger, standard, brace, base jack, joint stick and pin, connect pin, transom.

12. Export market: Middle East, Asia, Africa, West Europe, South America.

13. Quality control: certificate JOD1996, OD15001-1205 and ISO9001-2008

13. Advanced structural design and heavy load bearing capacity.



Specificaion of the Ringlock Scaffolding





Scaffolding  parts	Specification(mm)	Weight(kg)	Load capacity(KN)/squ
BS1139, EN74, ISO9001-2000 Scaffolding system
	500*48.3*3.2	2.83	48.15
	1000*48.3*3.2	5.07	40.75
	1500*48.3*3.2	7.31	34.35
Hot dip galvanized	2000*48.3*3.2	9.55	29.75
Vertical/Standard	2500*48.3*3.2	11.79	26.85
	3000*48.3*3.2	14.03	24.75
Materials Q345,Q235  Thickness 3.2mm  Surface HDG, electroplated, painting
Base collar	4000*48.3/60*3.2	1.98	51.23
Adjust base jack	350*36	2.87	53.25
Adjust U head	600*36	5.65	49.65
	600*48.3*3.2	2.62	50.15
	900*48.3*3.2	3.93	48.35
	1200*48.3*3.2	5.58	46.55
Q235	1800*48.3*3.2	7.26	44.95
Hot dip galvanized	2000*48.3*3.2	8.01	44.55
Ledger/Horizontal	2500*48.3*3.2	9.51	30.25
	3000*48.3*3.2	11.29	28.65
	3000*200*40*1.5	13.51	28.65
	2000*200*40*1.5	9.42	44.55
Q235	3070*300*50*1.8	21.05	28.25
Hot dip galvanized	2570*300*50*1.8	17.75	30.25
Plank, platform, deck	2070*300*50*1.8	14.46	44.55
	390*48*3	3.81	50.85
Q235
Hot dip galvanized	730*48*3	5.88	48.75
Side bracket	1090*48*3	7.68	46.15
	2000*1200*48*2.5	6.32	43.65
	2000*1800*48*2.5	6.71	42.35
Q235	2000*2000*48*2.5	7.89	41.25
Hot dip galvanized	2000*2500*48*2.5	8.88	39.55
Scaffolding brace	2000*3000*48*2.5	10.37	36.75
Materials  Q235, Q345 surface treatment  hot dip galvanized





Products Display



 Our Service:



• Your inquiry related to our product & price will be replied within 24hours.

• Well-trained & experienced staff are to answer all your inquiries professional in English of course.

• Working time: 8:00am - 5:30pm, Monday to Friday.

• OEM is highly welcomed. We have strong R&D team here to help.

• Your business relationship with us will be confidential to any third party.

• Good after-sale service offered, please get back if you got question.



Workshop of  the Ringlock Scaffolding





About us



We specialized in the filed of the hardware and scaffolding systems for10 years time and we dealing with many kinds of the Scaffolding .like Ringlock.Cuplock.Kwikstage scaffolding .frame systems. Shoring propsystems. hardware like handtools, Auto Tools. Building tools, such as the ratchet wrench.Pickaxe, Firmer chisel,shovel, pickaxe,various hammers,Triangle bricklayer,Scraper and so on. We want to emphasize that our goods get the reputation in the market due to the competitive price with the high quality. please do not hesitate to contact us meanwhile we will offer you the best with the quality you satisfied.
