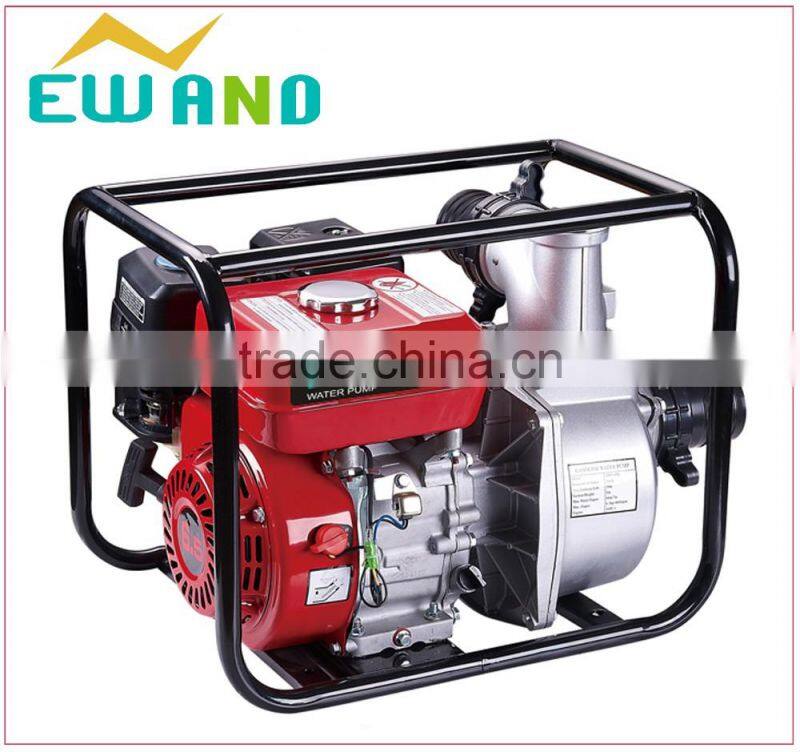

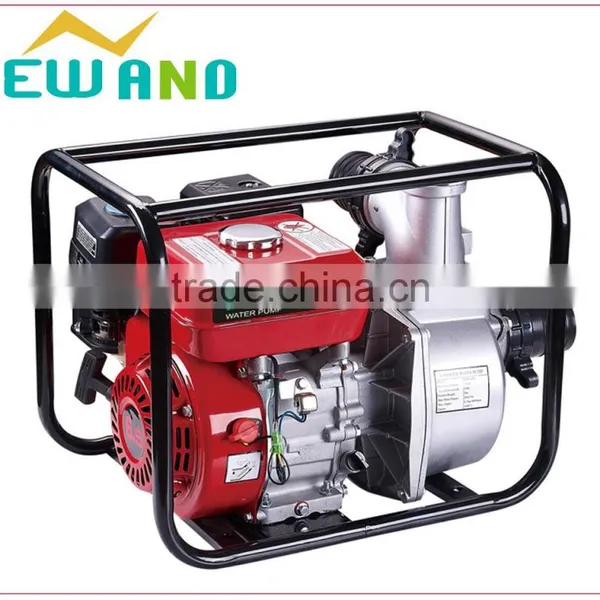

wp30 water pumps underground centrifugal water pump
- 30000 Set / Sets per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
hand pump1.5inch car wash high pressure water pump
-
cheap small handheld water pump wp20 gasoline 2inch pump
-
small cheap handheld water pump 1.5hp small petrol water pump
-
wp15 water pump 2.5hp general small centrifugal water pumps
-
2inch gasoline water pump 5.5hp general centrifugal water pumps
-
high volume high pressure water pumps 2inch water pump
Product Details
| Place of Origin | Zhejiang, China | Brand Name | NEWLAND | |
| Model Number | WP30 | Theory | Other | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Other, Recoil and hand -operated | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | High Pressure | |
| Application | Other, draw water,irrigation,and so on |
Product Description
FEATURES
1.Portable compact open structure
2.Economical, reliable and durable
3.Powerful load capacity
4.Stable performance Powerful output
5.Delicate and Beautiful Appearance Design
6.Large fuel tank ensures hours of continuous running
7.One year warranty
wp30 water pumps underground centrifugal water pump
| Type | WP15 | WP20 | WP30 |
| Outlet Size(mm) | 40(1.5inch) | 50(2inch) | 80(3inch) |
| Inlet size(mm) | 40(1.5inch) | 50(2inch) | 80(3inch) |
| Speed (rpm) | 3600 | 3600 | 3600 |
| Displacement Q.max(m3/h) | 18 | 30 | 60 |
| Lift H.max(m) | 14 | 25 | 28 |
| Suction(m) | 6 | 7 | 7 |
| Engine Model | 154F | 168F | 168F-1 |
| Engine Type | |||
| Bore x Stroke(mm) | 54*38 | 68x45 | 68x54 |
| Displacement(cm3) | 87 | 163 | 196 |
| Compression Ratio | 7.7:1 | 8.5:1 | 8.5:1 |
| Max Power Output(HP/rmp) | 2.5/3600 | 5.5/3600 | 6.5/3600 |
| Max Torque(Nm) | 3.5 | 10.8 | 13.2 |
| Start Model | Recoil and hand -operated | ||
| Air Cleaner | semi-dry | ||
| Fuel Tank Capacity (L) | 1.6 | 3.6 | 3.6 |
| Min Fuel Consumption(g/Kw.h) | 360 | 360 | 360 |
| Oil Capacity(L) | 0.37 | 0.6 | 0.6 |
| Packing Dimensions (mm) | 450*345*360 | 485x385x380 | 510x385x425 |
| G.W/N.W(Kg) | 17 | 22 | 23 |
Our factory
Taizhou NEWLAND Machinery Co., Limited is a professional GENERATOR manufacturer and exporter in China. With over 20 years experience on Generator Manufacturing, Marketing and Service, Our products are praised all over the world.
Product testing
. Professional experience
. High technology
. Careful
shipping&packing
. High space utilization
. Efficient and safe
. strong carton
HOW TO FIND US?
1Q:Can I only buy parts not whole system?
A: Yes, for example you can manufacture tower in local, we can supply you tower drawing.
2Q:Is it all right to make customer's own brand name
A: Sure,with your authorization of brand
3Q: What are your payment terms?
A: T/T 30% deposit,70% balance before delivery
100% T/T Advanced payment for sample orders L/C at sight
4.Q:How about quality control in your factory?
A:"Quality is first, Customers are friends".
Every piece of goods is tested strictly one by one before packing and shipping.
