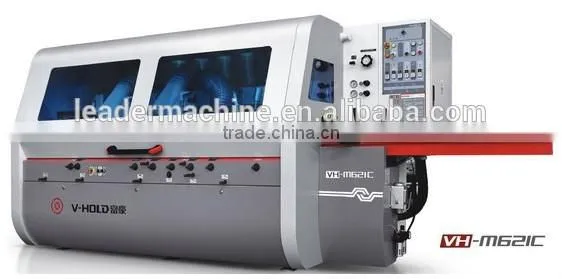

VH-M621C European Quality CE 2015 New condition Hot Sale Four Side Moulder
- 20 Unit / Units per Month
- QINGDAO
- T/T
Product Details
| Condition: | New | Type: | Four Side Moulder | Place of Origin: | Shandong, China |
| Brand Name: | LEADER | Model Number: | VH-M621C | Power(W): | 39750w |
| Dimension(L*W*H): | 3915*1520*1760mm | Weight: | 3150kg | Certification: | CE |
| Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2015 New condition Hot Sale Four Side Moulder
Model: VH-M621C
Machine parameter | working width | 25-210mm |
working thickness | 8-140mm | |
working length | 1900mm | |
feeding speed | 7-28m/min | |
main shaft diameter | 40mm | |
main shaft revolution | 6000r/min | |
pneumatic source pressure | 0.7Mpa | |
Motor power | 1st lower shaft | 5.5KW/7.5HP |
right vertical shaft | 5.5KW/7.5HP | |
left vertical shaft | 5.5KW/7.5HP | |
1st upper shaft | 7.5KW/10HP | |
2nd upper shaft | 5.5KW/7.5HP | |
2nd lower shaft | 5.5KW/7.5HP | |
feeding beam lifting | 0.75KW/1HP | |
feeding motor | 4KW/5.5HP | |
total power | 39.75KW/54HP | |
Cutter diameter | 1st lower shaft | 125mm |
right vertical shaft | 125-180mm | |
left vertical shaft | 125-180mm | |
1st upper shaft | 125-180mm | |
2nd upper shaft | 125-180mm | |
2nd lower shaft | 125-180mm | |
Remarks | feeding wheel diameter | 140mm |
Physical dimension(L*W*H) | 3915*1520*1760mm | |
dust outlet diameter | 140mm | |
net weight | 3150kg |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
